Cold Chain

A cold chain is every step at which a temperature-sensitive product is stored, picked, packed, moved or received. Each step is a link, and the chain is only as strong as the weakest handover: a pallet left on a warm dock for forty minutes breaks the chain just as surely as a failed freezer.

The required range comes from the product: the manufacturer's labelled storage conditions, supported by stability data. Common bands such as 2–8 °C, frozen or controlled room temperature are labels for ranges, not rules that apply to every product.

A defensible cold chain usually rests on four kinds of evidence: storage areas that have been mapped and qualified, packaging and shipping lanes that have been qualified for the seasons and durations they face, continuous monitoring records from fixed sensors or data loggers, and documented handling of anything that went out of range.

Missing any one of these leaves a gap. Good monitoring cannot prove that a shipper design was ever suitable, and a qualified shipper does not prove what happened on a particular journey.

For medicines in the EU, the Good Distribution Practice guidelines expect storage areas to be temperature-mapped before use under representative conditions, with monitoring devices placed according to the mapping results, and mapping repeated based on risk or after significant change.

For transport, the guidelines expect the required storage conditions to be maintained, excursions to be reported to the distributor and recipient, and a procedure for investigating and handling excursions. Food, reagents and cell therapies have their own rules, so always confirm the requirements that apply to your product and market.

An excursion is any reading outside the defined range. The product is quarantined or held, the data is retrieved, and a responsible person assesses impact using the duration, the magnitude and the product's stability data before it is used, released or rejected.

The assessment and its rationale belong in the record. Repeated excursions on the same lane or room point to a root cause that should be investigated as a deviation, with corrective action where needed.

Most cold-chain failures happen at transitions: receiving, staging for dispatch, cross-docking and the last mile. Clear time limits for exposure, pre-cooled staging areas and prompt put-away reduce risk more than additional sensors alone.

Each handover should leave a record of who took custody, when and in what condition, so a gap can be located rather than guessed.

• Applying a generic temperature band instead of the product's labelled range.
• Logger data downloaded only when someone complains, so excursions are found late.
• Mapping done once and never repeated after racking, HVAC or layout changes.
• Excursions closed with 'product OK' and no stability rationale.
• Alarm limits set so tight that staff learn to ignore them.

V5 records receipts, storage locations, lot status, picks and shipments with an audit trail, so the lot history needed to answer 'where was this product and when' is in one place. A quarantine or hold status can stop a lot from being picked while an excursion is assessed.

Deviations and CAPA in V5 can capture the excursion assessment and any corrective action, with electronic signatures where configured. V5 does not decide whether a product is still usable; that remains a documented decision by an authorised person using the product's stability data.

A distributor of biologics will focus on mapped cold rooms, qualified shippers and lane-by-lane excursion trends. A frozen-food plant will focus on blast-freezing times, storage temperature and dock exposure. A clinical-supply depot may also track temperature history per kit.

Start by listing every place your product waits or moves, then mark which ones have qualification, monitoring and a defined response. The gaps on that list are your priorities.

A 2–8 °C product arrives with a logger showing 9.4 °C for 35 minutes during transit. Receiving places the pallet on hold and attaches the logger file to the receipt. The responsible person compares the excursion against the manufacturer's stability statement, documents that it falls within supported limits, and releases the lot with that rationale recorded.

Because the same lane produced two similar readings that quarter, a deviation is opened. Investigation finds trucks waiting unrefrigerated at a cross-dock, and the carrier's handling instructions are changed.

Passive shippers are qualified against temperature profiles that represent the real seasons, durations and handling of each lane, including delays. Active containers need their own qualification and maintenance. The qualification report should state the conditions and maximum duration the design supports, so planners know when a shipment falls outside proven limits.

Lanes change: new carriers, cross-docks or routes can invalidate earlier assumptions. A periodic lane review, using excursion trends and delivery times, shows when requalification is due.

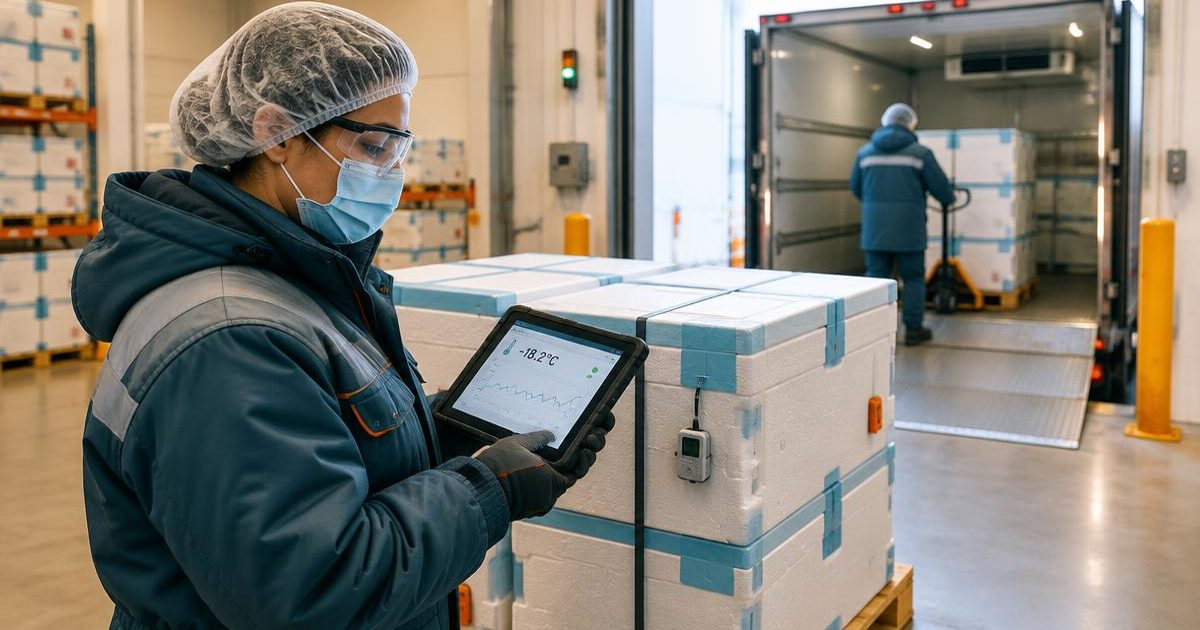

Fixed sensors in storage should alarm at limits set so that staff have time to respond before product is affected, with a tested escalation path out of hours. Calibrated loggers in shipments should be started, stopped and read by a defined procedure.

Alarm records, acknowledgements and responses are evidence in themselves. A monitoring system that alarms unseen at night provides less protection than a simpler system with a reliable on-call response.

1. Agree the scope, the decision the records support and who owns it.
2. Map the current records and find where evidence is missing or duplicated.
3. Write or update the procedure, with clear responsibilities and escalation.
4. Pilot on one area with real data and review what was hard to use.
5. Train the people involved and confirm understanding.
6. Review results after a defined period and adjust under change control.

• Can we show the procedure that defines this activity and who approved it?
• Can we reconstruct a recent example from the records alone?
• Are exceptions recorded, assessed and closed with a rationale?
• Who reviews the data, how often and with what evidence of review?
• What changed since the last review, and was the change controlled?

Keep the approved procedure, the source records, exceptions and their assessments, review and approval evidence, and any resulting actions, with enough context for someone unfamiliar with the event to understand what happened and why.

• Can users trace every summary value back to its source record and version?
• How are roles, permissions, signatures and corrections recorded?
• Can the workflow reflect our approved procedure without inventing a universal rule?
• What happens during an outage, and how are later entries distinguished?
• Can we test the highest-risk exception with realistic data before committing?
• Which decisions remain explicitly assigned to an authorised person?
