Geometric Dilution: Low-Dose Blending Method, Steps and Records

Geometric Dilution is a stepwise blending method in which a small quantity of an ingredient is mixed with diluent, then further diluent is added in portions approximately equal to the blend already present, with mixing after every addition.

The defining feature is the staged addition sequence: each mixed portion becomes the starting material for the next enlargement. Rather than introducing a small ingredient quantity directly into all the diluent, the operator progressively builds one blend. The intended benefit is to distribute the ingredient through manageable increments before reaching the final batch quantity.

Related search terms include geometric mixing, doubling dilution blending and trituration by geometric dilution. Trituration describes grinding or rubbing, commonly with a mortar and pestle; geometric dilution describes the addition sequence. They can occur together, but neither term is a synonym for the other. Staged additions do not inherently require grinding.

A premix therefore names an intermediate, not a recipe for making it; see pre-blend versus final blend. Likewise, the word “geometric” describes how additions progress, not how long each stage must run. Establishing an appropriate mixing duration is a separate blend-time validation question. These distinctions keep material status, mechanical action and addition sequence separate in manufacturing instructions.

Calculation basis: the ingredient is pure, the diluent is compatible, additions are measured by mass, no material is lost, and distribution is ideal for calculating theoretical concentrations. These assumptions make the example a mass balance, not a production prescription.

Equal bulk volumes do not necessarily have equal masses: powders can have different bulk densities. An instruction must identify whether additions are based on mass or volume rather than treating them as interchangeable. Here, gravimetric dispensing provides the mass basis.

Build from 0.500 g to 100.000 g

Start with 0.500 g ingredient and allocate 99.500 g diluent. For each complete doubling, add diluent equal to the mass of the entire mixture already present—not merely the original ingredient mass—and mix before the next addition.

This sequence contains seven complete doublings followed by a smaller final addition. At 64.000 g, only 36.000 g remains to reach the target; another complete doubling would overshoot it. The diluent additions total 99.500 g.

Calculate composition, then interpret it

The final theoretical concentration is (0.500 g ÷ 100.000 g) × 100 = 0.500% w/w, equivalent to 5.000 mg/g. Under ideal distribution, a 200 mg portion therefore contains 0.200 g × 5.000 mg/g = 1.000 mg ingredient.

For n complete equal-mass additions starting from pure ingredient, blend mass = initial ingredient mass × 2ⁿ, and ingredient mass fraction = 1 ÷ 2ⁿ. These expressions cover the complete doublings, not the smaller finishing addition.

Successive additions enlarge the ingredient-containing mixture before it encounters the full diluent quantity, rather than dispersing the initial 0.500 g directly into all 99.500 g of diluent. That is the practical rationale, not proof of universal superiority: performance depends on materials, equipment and the established process. Doubling arithmetic describes composition, not demonstrated homogeneity; it does not establish the measured content of any individual portion.

Geometric dilution is a candidate method—not the default for every low-dose formulation. Suitable situations include a small ingredient fraction, a laboratory or development blend, or preparation of a concentrated intermediate for a larger blending operation. Low dose and high potency are different concepts: a small mass fraction alone establishes neither occupational hazard nor therapeutic activity.

During process development, ask:

• Are the ingredient and diluent compatible under the proposed processing and holding conditions?
• Could particle-size or density differences cause separation during mixing or transfer?
• Will cohesiveness or electrostatic behaviour impede dispersion or cause material to adhere to contact surfaces?
• Can the weighing equipment reliably measure the smallest addition within the intended weighing tolerance band?
• Can the available equipment mix each stage effectively, and can containment protect operators throughout weighing, addition and transfer?

These are process-development considerations, not universal acceptance limits. Product-specific development may support an established premix, a different addition sequence or another blending technology instead.

Selecting a method during development is distinct from executing an established manufacturing instruction. Carry the selected approach and its operating conditions into technology transfer; do not treat routine batch execution as an opportunity to substitute a preferred technique. The next section addresses the applicable legal requirements.

For the U.S. drug mixing provision discussed here, regulations do not prescribe geometric dilution itself. 21 CFR 211.110(a)(3) identifies “Adequacy of mixing to assure uniformity and homogeneity,” rather than prescribing this named technique. The distinction is between the required mixing outcome and the manufacturer's choice of method.

The surrounding requirement in 21 CFR 211.110(a) is to establish and follow written procedures describing in-process controls, tests or examinations on appropriate samples from each batch. Its list of controls—including adequacy of mixing—is qualified by “where appropriate.” That qualification applies to the listed controls; it does not remove the surrounding written-procedure requirement.

FDA's Process Validation: General Principles and Practices recommends preserving process-design decisions and control justifications through sufficient documentation and internal review. In practical process validation, a method-selection rationale can explain why staged dilution suits the formulation and what evidence supports that choice. This is an application of process-development practice, not an additional geometric-dilution requirement.

For supplements, use the separate batch production record framework when mapping the operation to manufacturing records. For drug operations, check the current text of 21 CFR 211.100 for the scope of written-procedure and deviation requirements. Keep the applicability decision separate from the technical decision to use geometric dilution.

For applicable U.S. drug manufacturing, 21 CFR 211.101(b) requires components to be weighed, measured or subdivided as appropriate. Establish the quantities before starting staged additions rather than estimating portions during mixing.

21 CFR 211.101(c) requires adequate supervision of these operations and second-person examination of each component container dispensed to manufacturing. The examination includes checking that the weight or measure matches the batch production record under 211.101(c)(2). The automated-equipment exception in paragraph (c) permits one person to perform its specified checks when weighing, measuring or subdivision is performed by automated equipment under § 211.68. Electronic recording alone does not invoke that exception.

Illustrative operating sequence

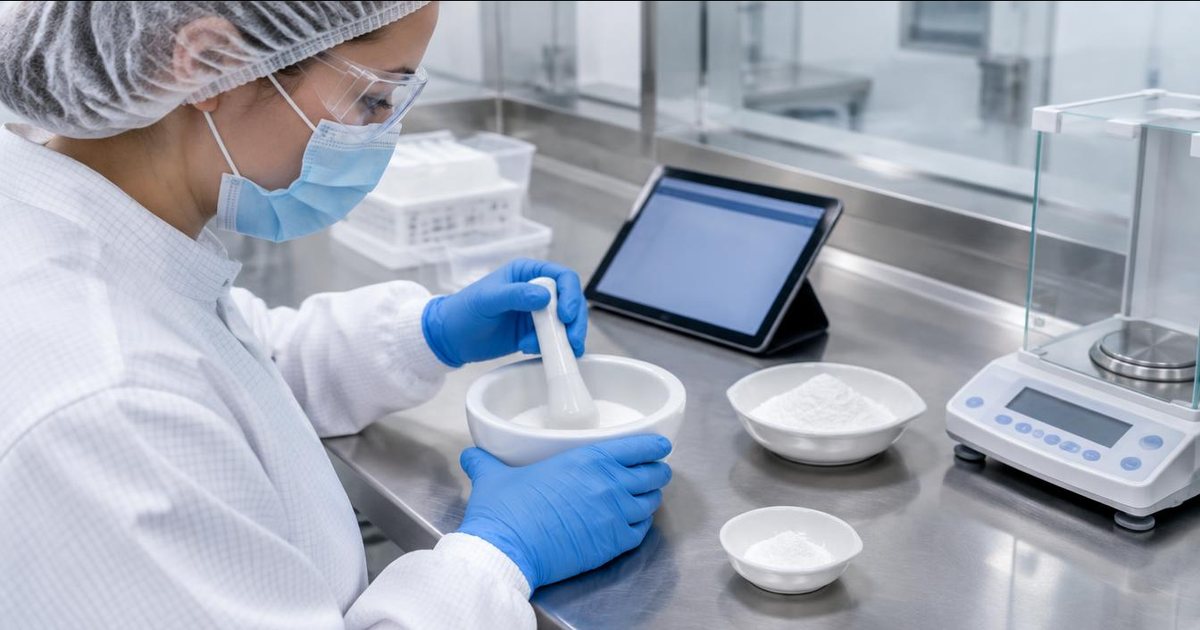

1. Prepare suitable equipment and containment. Select the mortar, vessel or blender for both the initial charge and growing mixture; include appropriate spillage and cross-contamination controls.
2. Identify and weigh materials. Record material lots and actual quantities, with the applicable dispensing checks completed before use.
3. Establish the initial mixture. Combine the low-dose ingredient and initial diluent portion using the established procedure.
4. Add the specified increment. Base each addition on the staged recipe; avoid substituting an estimated scoop for a specified quantity.
5. Mix before the next increment. Complete the prescribed mixing action, then repeat the addition-and-mixing cycle for subsequent increments.
6. Complete the final addition. Add the specified remainder and perform the final mixing step.
7. Transfer and reconcile. Record the quantity transferred and account for retained material or losses against the quantities charged.

This is operating practice, subject to the established site procedure. Capacity and working fill influence material movement and access during mixing; no universal mixing time applies. Record equipment identity and relevant mixing parameters alongside quantities in the batch execution history.

Workflow: Prepare → Identify and weigh → Establish initial mixture → Add increment → Mix and repeat → Complete final addition → Transfer and reconcile. These seven stages illustrate process organisation, not a regulatory sequence.

These industry-practice controls address common staged-addition failures; their importance depends on the powder and equipment. Connect each control to an observation or measurement, not an assumption of uniformity.

Distributive mixing spreads material through the powder bed; breaking agglomerates is a different physical task. A suitable addition sequence can therefore leave ingredient-rich clumps intact. Select deagglomeration methods during process development, with material compatibility checks—not by improvising grinding or screening during a batch.

Longer mixing is not a universal remedy. Additional handling can damage fragile particles, alter electrostatic behaviour or increase segregation tendency. Evaluate changes against particle-size measurements, static-charge observations and distribution results; elapsed time alone does not demonstrate improvement.

As an industry-practice assessment, scale-up asks whether the larger process preserves effective powder movement—not merely ingredient proportions. What working fill will each stage occupy? How do vessel geometry and mixing action change powder circulation? Can the order and rate of addition remain controlled? Assess the transfer path, hold time and containment arrangement, including where powder may accumulate or separate. Do not multiply mixing time by the batch-mass multiplier: equal calculated concentration does not establish process equivalence.

Separate geometric preparation of a small premix from its later incorporation into a production blender. Define the handoff point—for example, the identified premix container accepted for charging to the bulk blender—and specify the material condition and quantity expected there. A large downstream addition is not another geometric step merely because its input was prepared geometrically. Assess that downstream blending operation separately.

During technology transfer, compare development and production process maps, sampling assumptions and transfer conditions. Check whether sampling locations still represent the powder movement and discharge sequence. Treat equipment, supplier, particle-property and batch-size changes as triggers for a documented suitability assessment through change control. Base any additional studies on the change’s potential to alter powder distribution or material recovery, rather than applying an arbitrary fixed revalidation threshold.

Assume a verified 10.0% w/w ingredient premix, no loss, and a 20.000 kg final batch targeting 0.0500% w/w ingredient. Required ingredient = 20,000 g × 0.000500 = 10.000 g. Required premix = 10.000 g ÷ 0.100 = 100.000 g; additional diluent = 19.900 kg. The final theoretical concentration is 0.500 mg/g. This assay-adjusted charge starts with 100 g of physical mixture—not 10 g; the ingredient accounts for only 10 g of that mixture.

Possible equal-mass growth, mixing after each addition, is 100 → 200 → 400 → 800 → 1600 → 3200 → 6400 → 12800 g. Add another 7200 g diluent to reach 20000 g. Equipment suitability determines whether the entire sequence is practical or an established downstream blending operation is needed.

Hypothetical applications need different controls; use the regulatory mapping above, not a common regime or test specification:

• Low-dose tablet ingredient: establish active potency basis, excipient compatibility, exposure controls and dosage-unit verification.
• Supplement micronutrient: distinguish elemental content from compound mass; assess carrier compatibility and nutrient assay.
• Food fortification ingredient: assess nutrient stability, carrier allergens, cross-contamination controls and distribution in the food matrix.
• Chemical additive: define active-solids basis, reactivity and dust hazards; verify application-specific performance.

A completed geometric-dilution record shows how the blend was made; it does not, by itself, establish ingredient distribution. Verification needs measurements selected for the question being asked, rather than a single result labelled “uniformity.”

• Blend-location samples ask whether ingredient concentration differs between sampled regions. Blend uniformity evaluation depends on retaining location identity and comparing results, not merely averaging them.
• A composite assay measures the pooled sample; an average assay summarizes separate results. Either can show an acceptable overall concentration while concealing high and low locations or units. Neither alone establishes uniform distribution.
• Individual dosage-unit content testing asks how much ingredient each tested tablet, capsule or other unit contains. Content uniformity addresses unit-to-unit delivery, including variation introduced after blending.

Define sampling location, timing and sample mass before interpreting results. A large sample may average away local differences; a sampling device may disturb the powder or preferentially collect some particles. Justify the sampling design for the formulation and equipment. Include samples after transfer or discharge where segregation risk makes them relevant. Check extraction recovery and analytical sensitivity at the expected low concentration: an apparent location difference may reflect sample preparation or measurement error rather than the blend.

For applicable U.S. drug manufacturing, 21 CFR 211.110(b) requires examination and testing of samples to assure that drug product and in-process material conform to specifications. This is not a universal prescription for a particular compendial content-uniformity test.

Separately, FDA process-validation guidance, Analytical Methodology, recommends scientifically sound methods—specific, sensitive and accurate—that provide reliable results. This is guidance on analytical suitability, not an additional geometric-dilution rule.

Use the applicable product specification to determine which tests and criteria govern the decision. Blend uniformity, assay, dosage-unit content uniformity and weight variation are not interchangeable: equal unit weights do not establish equal ingredient content. Select sample counts and acceptance criteria with a product-specific rationale, not a universal numerical limit.

A useful batch execution history connects the recipe revision to the material lot and dispense, each addition, the sample result and any exception review. Treat these as proposed record relationships—not a list of fields mandated by regulation. Use stable identifiers to connect records rather than relying on ingredient names or matching quantities.

For each stage, capture target and actual quantities with units, the ingredient potency basis used in the calculation, equipment identity and execution time. Connect samples to the batch and sampling stage; connect exception decisions to the affected addition and reviewer identity. Keep the recipe revision used for execution identifiable even after later revisions.

When designing transfers of balance data or laboratory results, define stable measurement and sample identifiers, explicit units, timestamps, status, correction history and duplicate detection. Receiving a measurement is not accepting it for use: distinguish captured, reviewed, corrected and accepted states. Preserve the original value and its relationship to any correction. These are integration design considerations, not assumptions about a particular connector.

For a missed, duplicated or uncertain addition, interrupted execution, unit mismatch, or disagreement between recorded and observed material quantity, pause the affected operation. Identify material status, preserve original records and reconcile confirmed facts against unresolved uncertainties. Use documented exception review to obtain an authorized decision before resuming. Do not calculate a corrective addition from an unconfirmed current blend mass or silently reconstruct execution from the planned recipe.

Conceptual identifier links: Recipe revision → batch/addition execution ← material lot/dispense; batch/addition execution → sample/result; affected execution/result → exception/reviewer decision.

Record assembly does not itself establish blend uniformity or make a site compliant. Scientific evaluation and compliance assessment remain separate from assembling execution records; approval and batch release remain decisions made by authorised people.

Use these process-specific review prompts alongside the sections noted below; they are not a universal compliance checklist.

Readiness

• Is the addition basis explicit, including units, the quantity matched at each stage and the final remainder? See the doubling calculation.
• Are ingredient potency and starting quantity correct for the intended concentration? Check the assay-adjusted charge against the worked premix case.
• Are equipment and weighing capability suitable for the smallest charge and changing blend volume? Is intermediate mixing defined? See execution and scale-up.

Execution evidence

• Do actual additions reconcile with planned quantities, recorded losses and remaining material in the batch record? See records and exception recovery.
• Are intermediate mixing steps and interrupted additions traceable? Which discrepancies remain unresolved, and what evidence is needed to resolve them?

Technical review

• Have changed raw-material properties or transfer-related segregation challenged the method’s assumptions? See failure modes and scale-up.
• Does sampling address the relevant distribution risks, including discharge and transfer? Do analytical limitations constrain the conclusions? See verification.

An unresolved item calls for further evaluation—not automatic reblending, retesting or extra ingredient. Document the uncertainty and route the proposed response for appropriate technical and quality review before altering the batch.
