MESManufacturing Execution System

A Manufacturing Execution System is the orchestration layer that converts a production plan into controlled, traceable actions at the workstation, line, and area. It tells operators what to do, verifies prerequisites, records what actually happened, and reconciles the result against specifications and tolerances. In regulated environments, it is the authoritative record of execution used for release decisions and ongoing process verification.

In the ISA-95 reference model, MES occupies Level 3, bridging enterprise planning and scheduling with real-time operations. Above it, the planning system allocates demand and materials. Below it, machines, instruments, and people perform the work. The strength of MES lies in closing this loop without ambiguity, providing a single source of truth for status, exceptions, genealogy, and equipment readiness.

Practically, an MES coordinates orders into dispatchable steps, enforces versioned work instructions, verifies materials and tools, and captures execution evidence including time, temperatures, weights, and signatures. It guides operators through a shop floor terminal in a controlled, paperless shop floor experience, validates entries in real time, and prevents progression when controls fail. The system also calculates cycle times, utilization, and yields necessary for continuous improvement.

Because MES is the system of record for execution, it must interoperate with the enterprise layer for orders and inventory from ERP, and enforce procedural control consistent with ISA‑95 Level 3. The outcome is reliable production data that supports compliant release, rapid deviation investigation, and accurate supply planning.

Three bodies of work consistently anchor MES design. ISA‑95 defines the interfaces and responsibilities between enterprise and control layers, ensuring Level 3 functions like dispatching, tracking, and performance analysis are well-bounded. ISA‑88 defines the batch procedural and physical models, clarifying how recipes, unit procedures, and phases decompose into executable steps for reliable control. ISO 22400 standardizes operations key performance indicators, making throughput, availability, and quality metrics comparable across plants and vendors.

Together, these standards put structure around an MES: how it exchanges orders with Level 4 enterprise systems, how it sequences human and equipment tasks, and how it measures the effect of execution. A well-governed implementation maps work processes to the ISA‑88 procedural hierarchy, keeps Level 3 responsibilities distinct from ISA‑95 Level 4, and publishes ISO 22400-aligned metrics for management review and continuous improvement.

Batch and hybrid manufacturers especially benefit from ISA‑88 alignment, because a single recipe design can drive both automation and manual steps. Discrete and continuous operations also leverage ISA‑95 scoping and ISO 22400 metrics to standardize dispatching, tracking, and performance analysis across diverse lines and equipment sets.

Model alignment at a glance

An MES that formalizes these alignments reduces integration friction, avoids scope creep into enterprise planning, and makes performance dialogues evidence-based and comparable from shift to shift and site to site.

When procurement or validation teams evaluate offerings, asking vendors to show ISA‑88 recipe decomposition, ISA‑95 alignment matrices, and ISO 22400 KPI catalogs is a practical way to separate capable platforms from generic data collectors.

MES scope is intentionally finite. It governs execution of production orders, verifies preconditions, enforces steps, and captures the authoritative record of what occurred. It does not price purchase orders, design products, or manage customer complaints. Clarity on boundaries avoids duplicate master data, contradictory workflows, and validation waste.

On a regulated shop floor, adjacent systems perform complementary roles. The quality system drives document control, training, deviation and CAPA workflows. The laboratory system manages samples, methods, results, and specifications. The warehouse and logistics systems orchestrate receiving, putaway, and shipping. MES integrates to each, but should neither supplant their mandates nor fragment compliance ownership.

Integrations should be explicit and minimal. The goal is a single flow of truth for orders, materials, specifications, and results, not a web of overlapping features operated inconsistently by different teams. Well-defined handoffs accelerate release, prevent stranded records, and reduce reconciliation effort during inspections.

• ERP sends planned orders and receives confirmed production and consumption; MES does not plan demand or cost inventory.
• The QMS owns controlled documents, training, change control, deviations, and CAPA; MES consumes approved content and raises events.
• The LIMS owns sample registration, analytical methods, results, and specifications; MES triggers sampling and consumes pass/fail.
• The WMS and logistics systems own receipts, putaway, picking, and shipments; MES requests and verifies materials at point of use.
• Automation systems (PLCs, SCADA) execute low‑level control; MES sequences tasks and aggregates records but does not replace safety interlocks.
• Data lakes and BI tools analyze at scale; MES produces structured, contextualized records with lineage for consumption.

When boundaries are respected and interfaces are designed around the governing standards, the result is lower validation burden, fewer conflicting records, and faster investigations when something goes wrong.

Production begins when a planned order is transformed into an executable job with a versioned routing and bill of materials. The MES validates that equipment is qualified and available, required tools and environmental conditions are within limits, and operators hold current training for the tasks at hand. Only then does it dispatch the job to the appropriate work centers.

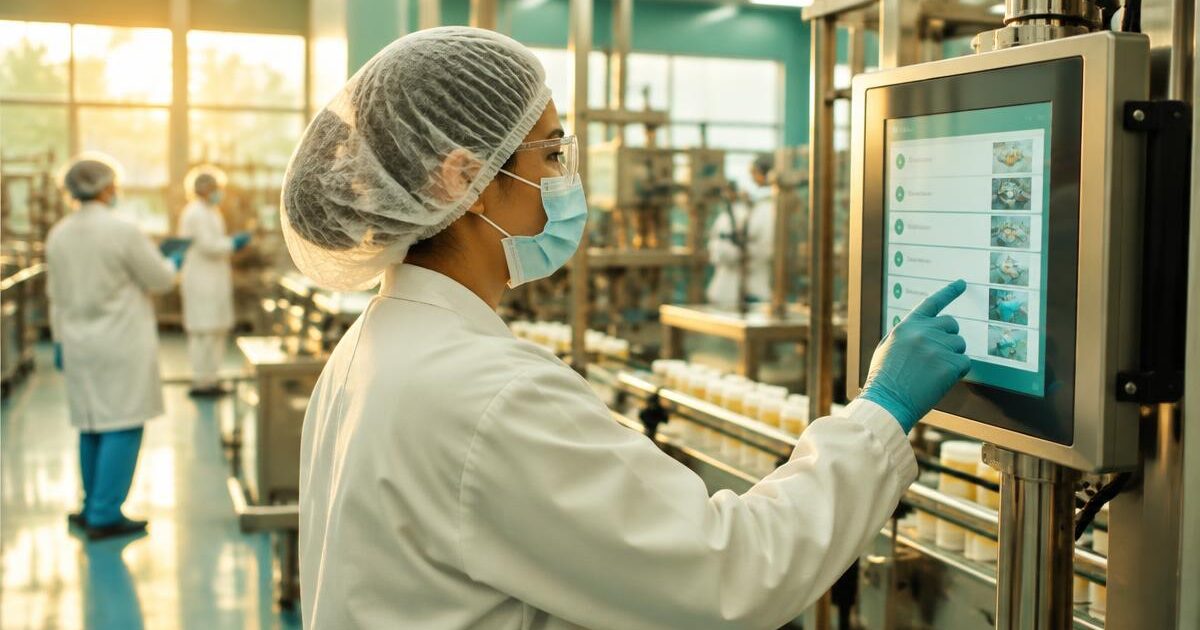

Operators execute through guided screens that enforce step sequence, acceptance criteria, and material and instrument checks. The system prompts for weights, dimensions, verifications, and observations, ensuring the right lot is used, the right torque applied, or the right volume dispensed. Supervisory sign-offs and holds are triggered automatically when critical parameters stray, and evidence such as photos or instrument attachments is captured inline.

Equipment and sensor signals are acquired and contextualized to the job, step, and material, eliminating transcription and timing errors. Events like start, pause, alarm, and complete become structured records tied to who, what, when, and where. The same pattern applies to weigh-and-dispense, cleaning, setup, and teardown, producing a complete lineage from raw material receipt through final pack-out.

The integration fabric often includes machine data acquisition to capture parameters at the moment of execution. Well-designed interfaces translate tags and instrument outputs into validated entries, perform range and reasonableness checks, and create audit trails of any corrections. This reduces the burden of manual reconciliation and shortens review-by-exception cycles.

At close, the MES rolls up consumption, yields, holds, and deviations into a release-ready record. Whether the product is batch-based, discrete, or continuous, the objective is the same: an accurate, contemporaneous, and attributable account of manufacturing that stands up to inspection and powers performance improvement.

Regulated production demands more than operational efficiency. Electronic records must be attributable, legible, contemporaneous, original, and accurate, with full audit trails for creation, modification, and review. Electronic signatures must be uniquely tied to an individual and protected against repudiation. Record retention, backup, and retrieval must satisfy agency expectations for the product’s lifecycle.

In the United States, 21 CFR Part 11 expectations for electronic records and signatures inform MES design and validation. In the European Union, EudraLex Volume 4, including Annex 11 and Annex 15 concepts, guides computerized systems and qualification. Across markets, ICH Q10 frames the pharmaceutical quality system and underscores the role of process performance and product quality monitoring, which the MES operationalizes through structured data capture and analysis.

Beyond signatures and audit trails, inspectors focus on role-based access, enforced sequencing and limits, contemporaneous entry, version control of instructions, controlled changes, and review-by-exception. Electronic batch records and device history records must be complete, including sampling triggers, laboratory results, material status, equipment usage, and any deviations or CAPA linkages. Validation must be risk-based, traceable to requirements, and maintained through change control.

Well-implemented controls reduce release cycle times and deviations, while making investigations faster and more defensible. The same discipline simplifies inspections: when records are complete by design, audit-readiness becomes an everyday property rather than a special project.

MES principles apply across batch, discrete, and continuous manufacturing, but sector-specific nuances shape implementation. Pharmaceutical plants often emphasize recipe fidelity, sampling triggers, and genealogy to the lot and unit level. Device assemblers prioritize component-level traceability, torque and calibration checks, and device history completeness. Food and cosmetics facilities focus on allergen controls, sanitation verification, and shelf-life management tied to environmental monitoring.

Electronic batch and device history records are a natural outcome of MES-guided execution. When laboratory and warehouse events are incorporated with clear status logic, release by exception becomes routine for conforming jobs, while nonconformances are immediately visible with their contributing data. Over time, performance and capability analyses feed into continuous verification programs that adjust limits, targets, and sampling strategies.

Hybrid processes—such as fermentation followed by purification and fill—benefit from ISA‑88 decomposition and consistent equipment state models, even when only portions of the process are automated. Likewise, high-mix discrete operations use the same MES primitives for setup verification, poka-yoke checks, and end-of-line inspection to prevent escapes and reduce rework.

Global operations must also account for differing regulatory emphases on data residency, language, and retention. Multi-site master data governance, standardized instruction templates, and controlled localization reduce divergence and simplify both corporate oversight and local inspection.

Confusion often starts with scope. Teams expect the MES to solve planning, product lifecycle management, and laboratory workflows, leading to sprawling configurations that are hard to validate and sustain. The remedy is to anchor scope in ISA‑95 and assign each adjacent system clear ownership, with integration contracts that carry the necessary context for compliant execution.

Another frequent error is automating bad processes. If master data are incomplete, instructions are ambiguous, or specifications are not harmonized, the MES will faithfully enforce the wrong thing. A brief period of process stabilization and master data remediation pays dividends in project speed and operational results.

Finally, organizations underestimate exception handling. The day-to-day value of MES lies in preventing errors and guiding recovery when something deviates. Designs that emphasize golden paths but neglect holds, rework, partial completions, and cross-shift handoffs create hidden manual work and brittle records.

• Bundling planning into MES inflates validation scope and blurs accountability.
• Neglecting master data and specifications causes rework and inconsistent enforcement.
• Over-customizing screens impedes upgrades and multiplies test cases.
• Ignoring exception flows forces paper side-records and weakens data integrity.
• Treating integrations as afterthoughts yields stranded or conflicting records.
• Under-investing in training and access control erodes electronic signature confidence.

A disciplined, standards-led approach keeps implementations right-sized and resilient. It also accelerates time to value, because fewer moving parts require less validation, less training, and less long-term maintenance.

MES sits among several technical layers that provide control, asset management, and enterprise context. Programmable logic controllers and supervisory control systems execute closed-loop control and safety functions. Data historians capture high-frequency signals for engineering analysis. Computerized maintenance management systems track preventive and corrective work, ensuring equipment remains in a qualified state for manufacturing.

Rather than ingesting raw time series indiscriminately, a robust MES subscribes to targeted, validated signals and binds them to step, lot, and equipment context. This produces a useful record for release and investigation without duplicating historian roles. In the other direction, the MES publishes structured events and contextual tags to analytics platforms that look across units, shifts, and sites.

Product data, including bills of materials and routings, often originate in enterprise systems or product lifecycle platforms. Clear ownership and change control prevent silent divergence between design intent and shop-floor execution. Serialization and labeling frameworks, along with global identification standards and barcodes, interoperate with MES to ensure units and lots can be unambiguously traced through the supply chain.

Security and privacy concerns traverse all layers. Identity governance, least-privilege access, rigorous audit trails, and tested backup and recovery are essential. For cloud deployments, documented controls for data residency, encryption, and supplier oversight satisfy both internal risk management and regulatory expectations for computerized systems.

V5 Ultimate implements a standards-aligned MES that dispatches orders, enforces step sequences, validates materials and equipment, and captures contemporaneous records with full audit trails and electronic signatures. Execution data are contextualized to product, lot, step, and equipment, enabling review-by-exception and rapid deviation investigation.

The platform integrates planning signals, quality workflows, laboratory results, and warehouse movements on a single execution record. This eliminates fragmented side-systems during production and streamlines release. Role-based access, controlled instruction versions, and validated instrument interfaces strengthen data integrity by design.

Deployments are guided by a risk-based validation methodology anchored to requirements traceability. Master data onboarding, exception-flow design, and training plans are structured to make audit readiness part of daily operations rather than a one-time event. Performance dashboards follow ISO 22400 conventions, making utilization, yield, and cycle metrics transparent and comparable.
