Roller Compaction: Meaning, Evidence and Controls

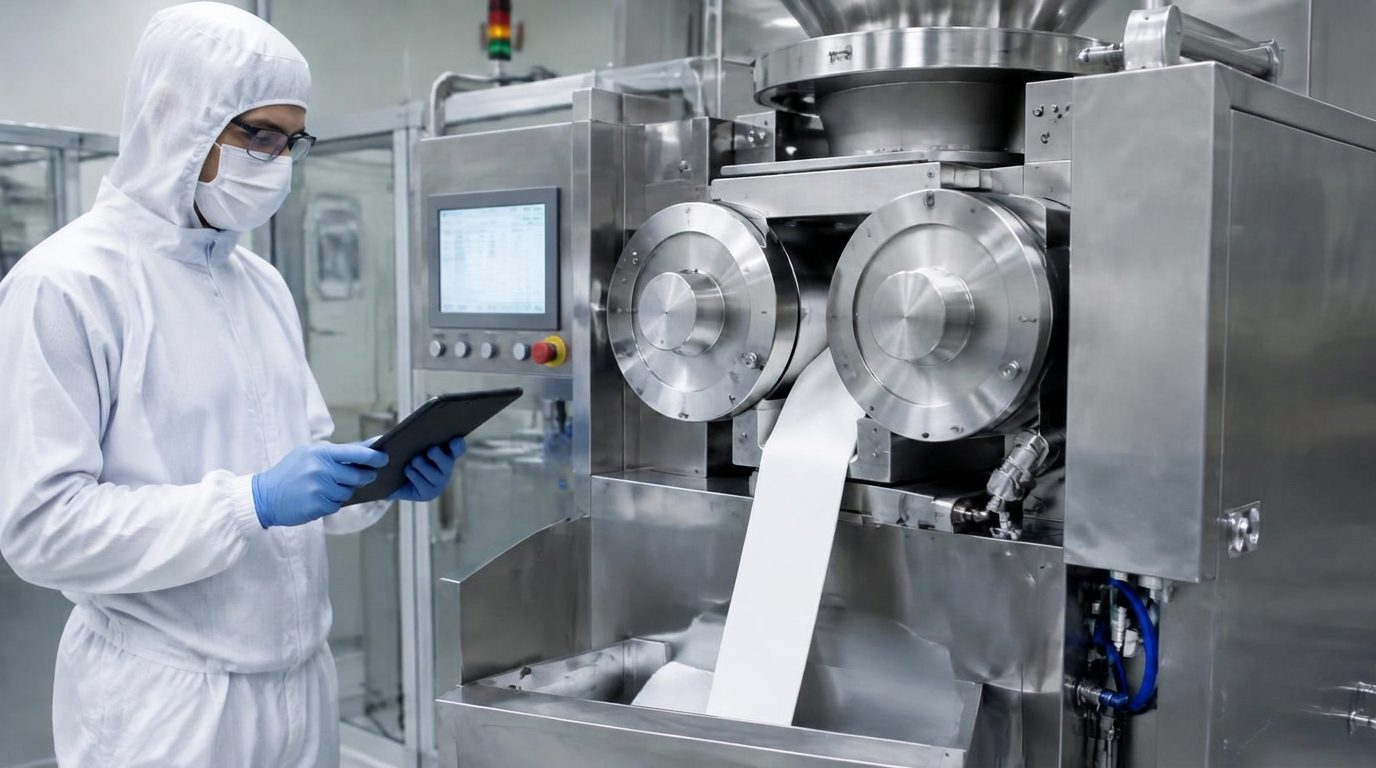

Roller compaction is a dry-granulation process in which powder is fed between counter-rotating rolls, densified into a ribbon or flakes, and then milled and classified into granules. Feeding presents material to the roll nip; compression creates the compacted intermediate; milling after granulation breaks that intermediate into smaller particles. Classification separates size fractions for their intended handling rather than making every particle leaving the rolls usable granule.

The intended changes commonly include easier powder handling, altered bulk density and a more suitable granule size distribution for subsequent operations. These are formulation-dependent outcomes, not guaranteed improvements. A blend may form coherent ribbon yet produce excessive fines during milling, or yield denser granules that do not compress satisfactorily into tablets. The useful outcome is therefore a material with properties suited to the next operation, not simply a visibly strong ribbon.

Dry means that the route avoids added granulation liquid during compaction; it does not mean that the ingredients contain no moisture or cannot exchange moisture with their surroundings. Mechanical work and friction can generate heat. Moisture-sensitive or heat-sensitive ingredients therefore still warrant a material-specific assessment of conditioning, temperature exposure, possible physical-form changes and downstream performance. Avoiding liquid addition alone does not establish suitability, and roller compaction is not universally the best route for heat-sensitive materials.

The ribbon or flake is a compacted intermediate, distinct from the milled granules and from the final tablet, capsule fill or other product. Granule acceptability depends on intended use: material suitable for capsule filling is not necessarily suitable for tablet compression, and the reverse also applies.

These terms describe different mechanisms, not interchangeable equipment choices. In common manufacturing terminology, dry granulation is a route; roller compaction and slugging are ways to carry it out. Ribbon blending belongs to mixing, despite the shared word.

Selection starts with questions: How does the feed flow, segregate and compact? What must milling after granulation deliver for tableting or capsule filling? How sensitive is the material to liquid exposure, mechanical work and heat? For a liquid-assisted route, what defines the wet-granulation endpoint? These questions are more useful than ranking one route as universally superior.

A useful parameter record separates commanded settings, measured values and calculated responses. Identify whether the machine controls force, gap or another response, and which actuator it adjusts. Under force control, changing feed can change gap; under gap control, it can change force. Actual behaviour depends on the control architecture and powder response.

Hydraulic pressure is not roll force. State the calibration used to derive force and whether normalization uses nominal face width or effective working width. Feeder rpm alone does not establish mass throughput: powder bulk density, screw filling and slip can change delivery at unchanged speed. Keep geometry in the equipment configuration specification; matching normalized force does not establish geometric equivalence.

For each ribbon density measurement, state how volume was obtained, such as envelope displacement or measured dimensions. Poured and tapped granule bulk densities include intergranular spaces and are different measurements. Report solid fraction only with an appropriate reference density on a consistent measurement basis. Ribbon density alone does not demonstrate scale-up equivalence.

Name the fines denominator explicitly: total classified output and fresh feed answer different questions. Record incoming moisture as well as conditioning instructions, specifying wet basis or dry basis. None of these variables is automatically a critical process parameter: criticality depends on evidence connecting variation to relevant quality attributes. Keep parameter names separate from criticality decisions; use formulation-specific studies rather than universal setpoints.

A practical run sequence starts by confirming material identity, blend status, moisture condition and the granules’ intended destination. Check equipment configuration, including feed arrangement, rolls, mill screen and collection route; confirm cleaning status and weighing readiness, including scale suitability and container tares. These are system-neutral operating practices, adapted to the equipment and product risk.

Establish feed using the equipment-specific sequence and collect startup material separately. Move toward the intended operating condition while comparing actual force, gap, feed and roll-speed trends with ribbon continuity, loose edge material, mill loading and classified output. Use the product-specific operating procedure to identify the transition into routine production—not an assumed stabilization time. Record collection-container changes so each output interval remains identifiable through bin-level lot genealogy.

Define samples by location and operating phase. Keep centre and edge ribbon results distinguishable, separate startup from established-operation samples, and identify whether material was sampled before milling or after milling and classification. Record the collection interval and relevant operating observations; a post-mill sample does not directly describe the intact ribbon.

During interruptions, identify the last collection interval, material still inside the equipment and the route for restart output. Transport delay means a process event reaches the collection point later; equipment holdup and mixing can spread its effect across several containers. Bound the affected material interval using the flow path and operating history, rather than matching timestamps alone. Segregate uncertain material in an identified quarantine bin pending assessment.

At shutdown, account separately for material retained in feeders, around rolls, in mills, transfer lines and collection vessels. Keep normal product, planned recycle, samples, collected dust and retained material as distinct streams. Record each quantity, container and destination; discharge from the equipment does not itself establish acceptability.

Operational workflow

A useful roller-compaction record connects the run identifier, input lots, recipe version and equipment configuration to identifiable material intervals and output containers. Define interval boundaries by recorded events, such as a feed-lot change or container change, rather than relying on batch identity alone. Bin-level lot genealogy helps retain these relationships when material is divided or combined.

Generic record-structure diagram for manufacturing practice—not an application or connector specification:

Run + input lots + recipe version + equipment configuration → material interval → output containers; interval → parameter observations + samples; exception → affected intervals/containers → investigation evidence → responsible person’s disposition.

• For each parameter observation, retain the parameter name, unit, timestamp, commanded value, measured value and signal-quality status. Identify parameters without a commanded value as not applicable. Keep missing observations distinct from genuine zero readings; substituting zero can create a false process excursion.
• For each sample result, capture sampling location, relevant material interval, method version, preparation basis and result unit. Include conditioning or preparation details needed to interpret the measurement. A density checkpoint without its method is ambiguous: loose bulk density, tapped density and ribbon density describe different properties and are not interchangeable.
• Select quality observations according to intended use: particle-size distribution, flow, bulk properties, moisture and composition, with downstream tablet or capsule performance where relevant. Preserve the link between these results and the material they represent rather than treating a batch average as a description of every interval.

Link each exception to affected material, investigation evidence and the responsible person’s disposition decision. These records support interpretation and review; collecting them does not itself establish product acceptability.

Force normalization between machines

Assume machines A and B use consistent conventions for total roll force F, measured in kN, and effective roll width W, measured in cm. Specific compaction force, or line force, is L = F/W, in kN/cm. To match line force algebraically, F_B = F_A × W_B/W_A. The width ratio is dimensionless; the resulting force remains in kN. This calculation translates a force measurement, not a validated operating recipe.

For roll diameter D in m and rotational speed n in rpm, roll surface speed is v = πDn, in m/min. Matching rpm therefore does not match surface speed when diameters differ. Equal surface speed instead gives n_B = n_A × D_A/D_B. Surface speed describes the roll, not necessarily powder travel where slip occurs.

Matching line force or ribbon density does not by itself establish equivalent granules or downstream performance. Compare feed behaviour, roll geometry, material history, density distribution and product-relevant results before concluding that transfer is equivalent.

Steady-state recycle and finite-run reconciliation

Assume no accumulation or moisture exchange, with all rates measured over the same steady-state interval. Define fresh feed q_f, returned fines q_r, gross feed q_g, accepted output q_p, rejected output q_d, samples q_s and collected dust q_c, all in kg/h.

At the feeder, q_g = q_f + q_r. Across processing and separation, q_g = q_p + q_r + q_d + q_s + q_c. Substitution cancels the internal return: q_f = q_p + q_d + q_s + q_c.

The return fraction q_r/q_g and recycle-to-fresh ratio q_r/q_f have different denominators; both are dimensionless. Adding circulating fines repeatedly to external input overstates material introduced. Net-vs-gross reconciliation separates circulation from external throughput.

For a finite run, U = F + H_open − P − D − S − C − H_close, with every term in kg. Here F means fresh input mass, not roll force. Count each quantity once; material retained inside the boundary belongs in inventory rather than an exit stream. U is the signed unaccounted residual, not an assumed process loss. In-process reconciliation helps locate discrepancies; balance closure alone does not establish quality.

Conditioning and moisture basis

Assume each stream has representative water measurements corresponding to its weighing condition. Calculate dry solids as m_dry = m_wet − m_water, with all masses in kg. Apply this conversion separately to inputs, outputs, opening and closing inventory, samples and collected dust; then repeat the finite-run balance using dry-solid masses.

Compare dry-solid inputs and outputs before attributing a wet-mass difference to water exchange during conditioning. A smaller dry-solid residual supports that explanation but does not prove it: sampling and measurement uncertainty still matter. Neither calculation establishes an operating setpoint or acceptance limit.

Separate the legal basis for material control from inspection expectations and operating practice. For regulatory orientation, consult the 21 CFR 211 overview; use the specific provision below for the rejected-material requirement.

Operating practice—not regulatory wording

For roller-compactor startup, defining material collection boundaries and a disposition route is a process-design consideration, not wording from the tablet-press guidance. Keep force, gap, feed, milling and recycle instructions in the product-specific operating recipe, with their technical justification separate from the authority table. Review proposed re-entry of startup material against that defined route rather than treating startup output as automatically reusable.

As an integration design practice, link equipment observations, weighing transactions, laboratory results and manufacturing records through stable run, sample, container and material-interval identifiers—not filenames alone. A material interval should identify the bounded portion of output to which observations apply. MES–historian integration should preserve these relationships across transfers.

Before combining observations, define source timestamps as event, acquisition or receipt times; specify units, equipment tags and recipe versions. Record known clock offsets through clock-drift monitoring. Account separately for transport delay from the rolls through the mill to collection: matching timestamps alone can associate a result with the wrong material.

Design interfaces to recognise retransmitted messages without double-counting weights or events. Preserve original observations; make corrections attributable, with reasons and links to the originals. These are data-handling design considerations, not automatic compliance features.

If acquisition stops, establish the last attributable material interval. Identify powder, ribbon and granules still in transit, and collect uncertain output separately under an identified container. Reconstruct the interruption where possible using independent equipment logs, scale transactions, operator entries and sample records. Retain unresolved uncertainty rather than filling gaps with assumed values.

After feed interruption, mill blockage or collector change, record the intervention, changed configuration, affected material and evidence supporting restart under the process procedure. Link restarted output to its collection boundary. A process-specific material hold pending assessment is distinct from rejected-material quarantine discussed above. A system status does not replace a responsible person's disposition.

Use the parameter relationships and interval-linked evidence described above. These troubleshooting hypotheses are industry practice, not regulatory requirements or proven causes for every formulation. Compare observations before changing settings; a defect alone does not identify its cause.

For growing recycle load, distinguish fresh-material behaviour from returned material’s accumulated processing history. Track loop inventory and returned-material genealogy; steady feeder settings do not establish steady material behaviour.

Screen wear, blockage and rotor changes can alter milled output despite unchanged nominal screen aperture. Detailed replacement assessment belongs in the FAQ.

These hypothetical applications illustrate different technical objectives for roller compaction, not proven outcomes or interchangeable acceptance criteria.

• Pharmaceutical tablets: A development team could compare granule flow and compressibility with subsequent tablet weight variation, strength, disintegration and dissolution. Easier die filling alone would not establish satisfactory tablet performance.
• Supplements: For a heterogeneous, hygroscopic blend, assess moisture uptake and composition in accepted granules, fines and retained material. Connect those streams to bulk-to-pack traceability rather than treating recovered mass as evidence of compositional uniformity.
• Food powders: For a drink mix, examine handling, dispersibility and caking alongside ingredient functionality. A granule that transfers cleanly may still disperse poorly in the intended preparation.
• Chemical powders: For feed to a downstream reactor or blender, examine feed consistency, particle strength, segregation and compatibility with that operation; stronger granules are not necessarily preferable.

For regulatory applicability, refer to the scope section above.

Use this practical review aid before handing the run record to the disposition reviewer. It checks whether the evidence is interpretable, not whether the batch is automatically acceptable.

• Recipe and equipment: confirm the configuration and control mode; distinguish commanded settings from measured responses. Identify parameter units, force normalization basis and the recipe revision actually used.
• Material-linked results: connect ribbon measurements, milling configuration and output testing to the relevant material intervals. Check sample identities and timing so a result cannot silently represent untested output.
• Accounting: reconcile recycle identity, opening and closing inventory, sample withdrawals, dust and unexplained residuals within the boundary defined above. Use consistent mass bases in the net-versus-gross reconciliation, without counting internal recycle as new input.
• Recovery: identify material affected by interruptions and interventions. Retain the observations, changes, segregation decisions and restart evidence supporting recovery, including unresolved uncertainty about material location or exposure.
• Disposition: keep technical acceptance, regulatory applicability and the responsible person's disposition separate. Carry unresolved exceptions into the batch release checklist; do not treat a complete record or balanced mass calculation as a release decision.
