Granule Size Distribution

Granule size distribution describes the relative quantity of particles in each size bin of a granulation. The dominant summary metrics are D10, D50 and D90 — the particle sizes below which 10%, 50% and 90% of the mass falls. Span = (D90 − D10) / D50 quantifies the spread. A narrow GSD has span < 1.5; a wide GSD has span > 2.5 and is more prone to segregation during transfer and compression.

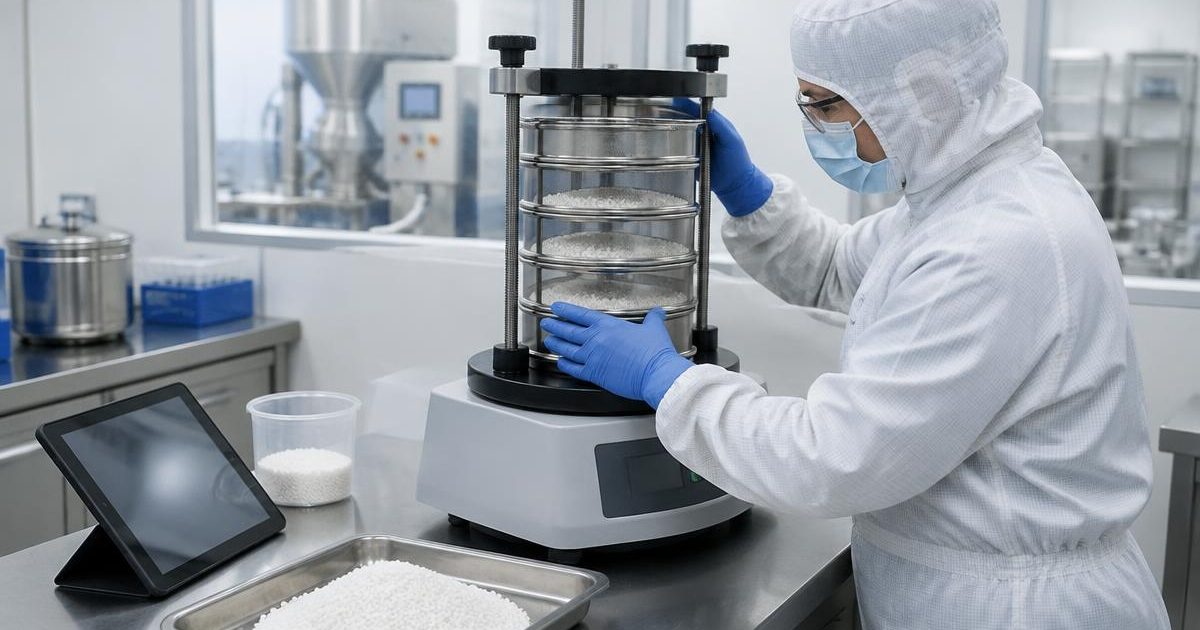

Underlying methods range from manual sieve analysis (USP <786>) to laser diffraction (USP <429>) and dynamic image analysis. Sieve gives mass-weighted distribution; laser diffraction gives volume-weighted; image analysis gives shape data alongside size. Method choice depends on particle size range, throughput needs and the regulatory file — many products specify sieving as the primary method with laser-diffraction as a development tool.

• Coarse granules (D50 > 500 µm) flow well and compress robustly, but may have content uniformity issues at low dose.
• Fine granules (D50 < 100 µm) have good content uniformity but flow poorly and may stick at the press.
• Most solid-dose products target D50 in the 200–400 µm range with span ≤ 2.0.
• Span > 2.0 is a segregation risk at every downstream transfer.
• Out-of-spec GSD typically returns to mill, not to dryer.

The right GSD is a balance, not an extreme. A product needs enough fines to fill voids between coarse granules during compression (better compaction, lower friability) and enough coarse to give the formulation flow into the press feeders. Process development optimises this balance and then the validated control recipe holds it through CPV.

GSD specifications usually combine D10/D50/D90 limits with %retained or %passing limits on key sieves. ICH Q6A allows ranges where supported by data; ICH Q8(R2) supports design-space approaches where GSD is treated as a multidimensional control region. The justification draws on process-development DoE data linking GSD to downstream CQAs (hardness, dissolution, content uniformity) at the worst-case operating conditions. Wider specifications are easier to maintain in production but harder to defend if downstream OOS appears.

A common pattern is to specify D50 and a maximum %fines (e.g. %<63 µm) rather than a full distribution. The %fines specification protects against segregation and friability; the D50 protects against flow and compressibility. The full distribution is reviewed at periodic intervals as part of CPV but is not necessarily a release criterion.

• Sample at validated locations from the milled granulation, post-drying.
• Use the validated method consistently; correlations between methods are not transferable across products.
• Sieve mass per validated mass and time; over-loading causes false coarse bias, under-loading causes false fine bias.
• Inspect sieves between batches for damage or clogging.
• Trend D50 and %fines in CPV; drift indicates mill wear or upstream granulation drift.
• Tie GSD to upstream granulation parameters (binder rate, end-point torque) for root-cause analysis.
• For online PAT, validate the calibration to sieve at regular intervals.

• Single sieve cut (e.g. only %through 1 mm) — loses information about fines and spread.
• Method changed mid-product life without comparability — apparent shift in distribution.
• GSD treated as a pass/fail without trending — drift hidden in compliance with broad spec.
• Mill blamed for GSD shift when root cause is granulation endpoint drift.
• Sample mass too high for sieve area — coarse fraction blocked from passing.
• Sieve vibration time and amplitude not standardised — operator-dependent results.
• Laser diffraction used for release without compendial cross-reference.
• Image analysis size data converted to mass without density correction.

GSD scale-up from pilot to commercial is one of the most common failure modes in technology transfer. High-shear granulators behave non-linearly with scale because the relative significance of impeller tip speed, bowl volume and binder addition rate all shift. A pilot batch with D50 = 280 µm may scale up to 350 µm or 220 µm depending on how the granulation step is scaled. The mitigation is geometric similarity where possible, dimensionless number matching (Froude, Reynolds) where not, and engineering runs at commercial scale before PPQ.

The milling step that follows granulation usually narrows the distribution, but can mask upstream variability for a while. A worn screen or a high-throughput mill reaches its limit when upstream granules are sufficiently variable, and downstream GSD then shifts. Mill PM should be tied to GSD trending in CPV; a slow drift in %fines is often the earliest sign of mill screen wear.

• Solid-dose pharma — GSD is a near-universal CQA for granulated tablets and capsules.
• Effervescent — narrow GSD with low fines; segregation in tubes is a market complaint risk.
• Veterinary palatable tablets — GSD drives flavour distribution and tablet integrity.
• Nutraceutical / supplement — same logic as pharma; GSD often less tightly specified in commerce.
• Spray-dried biologics — particle size affects reconstitution kinetics and respirability for inhaled products.
• Battery cathode powders — particle size distribution controls electrode density and ionic conductivity.
• Food powders (coffee, milk powder) — size distribution drives instant-reconstitution behaviour and mouthfeel.
