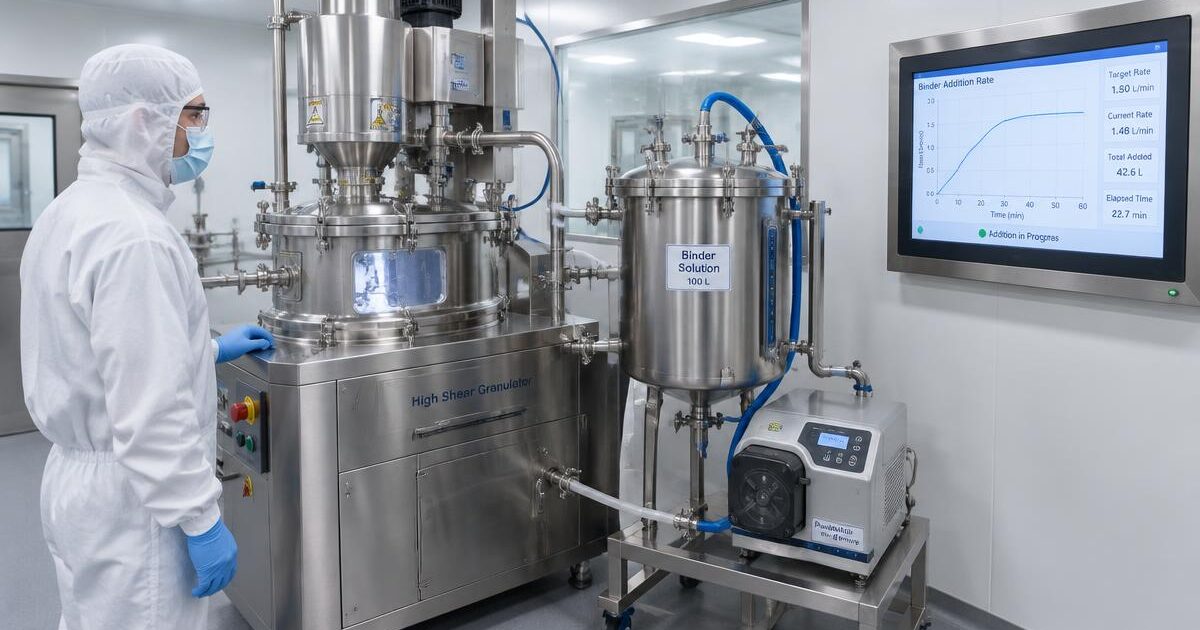

Binder Addition (Granulation)

Binder is the polymer (or in some cases sugar, starch derivative or modified cellulose) that holds primary particles together inside a granule. The binder can be delivered in three principal ways: (a) as a pre-prepared aqueous or alcoholic solution sprayed onto the dry blend through one or more nozzles, (b) as a bulk solution poured in over a fixed addition time, or (c) as a dry powder pre-blended with the API and excipients, then activated by spraying pure solvent (typically water) onto the dry blend. Each method has its own CPP set, its own failure modes, and its own validation expectations.

Spray addition of a pre-prepared polymer solution is the dominant approach in modern high-shear and fluid-bed granulation because it gives the best control over distribution, droplet size and rate. Bulk pour is still common in legacy high-shear processes with strong massing energy that can re-distribute the binder mechanically after addition. Dry-blend-plus-solvent (the 'binder activation' approach) appears in fluid-bed lines where dissolved binder solutions would be too viscous to atomise cleanly, and in moisture-sensitive products where minimising total liquid volume matters.

• Total binder amount sets the granule strength and the CQA envelope (PSD, friability, hardness, dissolution).
• Binder concentration in solution sets viscosity, droplet size at the nozzle and droplet spread behaviour on contact with the bed.
• Spray rate controls liquid distribution and avoids local over-wetting hotspots.
• Solution temperature controls viscosity — usually held within a narrow ± 2–3 °C band.
• Nozzle position, pattern and atomisation pressure decide where the droplets land and how they spread; overlapping spray cones in multi-nozzle setups cause local over-wetting.
• Binder polymer chemistry (PVP, HPMC, HPC, starch, sugars) is decided in formulation and locked in the bill of materials.

Five polymer families dominate pharma granulation, each with distinctive behaviour:

Within each family, molecular weight (MW) grade is the second-order decision. PVP K30 gives lower viscosity than K90 at the same w/w concentration — useful when atomisation requires a low-viscosity solution. HPMC E5 gives lower viscosity than K100M at the same concentration — and very different sustained-release behaviour. The binder grade is part of the formulation lock and should not vary across batches; supplier qualification covers MW distribution as a CQA of the binder itself, not just the % polymer content on the COA.

Binder amount is usually expressed as a percentage of the dry blend mass — typical range 2–5 % polymer w/w in the final granule for immediate-release products, 5–15 % for sustained-release matrix systems. The total binder solution mass (which includes the solvent) is much larger — typically 15–35 % of the batch mass — because the solution is dilute (2–10 % polymer).

Each parameter has a validated band derived from a DoE in development. The recipe enforces every value, not just the average. A small change — for example a step down from 5.0 to 4.5 % polymer in solution to compensate for a viscosity drift — moves the wet-equilibrium balance, shifts droplet size, alters granule growth and propagates through to PSD, friability and dissolution at the tablet. This is why binder solution preparation is treated as a controlled manufacturing operation with its own batch record, not as a routine kitchen task.

1. Prepare binder solution against a controlled batch record — polymer lot, water grade, mass balance, mixing time, temperature, target viscosity verification.
2. Verify dissolution completeness before transfer — undissolved polymer is the most common 'easy' failure mode.
3. Pre-condition solution to target temperature and hold it; insulate transfer lines to avoid cooling in-flight.
4. Validate spray pump (peristaltic or piston) calibration before each campaign; calibration record is a batch-release condition.
5. Inspect nozzles before phase start — blocked, worn or misaligned nozzles destroy distribution.
6. Start spray at ramp-up rate; reach nominal rate over 5–10 minutes.
7. Monitor per-nozzle flow continuously; cross-check against solution-tank load-cell mass loss.
8. Ramp down spray rate in the last 10–15 % of solution to avoid end-of-spray over-wet zones.
9. Record total binder solution delivered (mass, not volume) against the recipe target — this is a CQA-impacting attribute that posts into the batch record.
10. Sample binder solution at start and end of long spray phases to detect concentration drift during the run.

1. Treating binder concentration as 'about 5 %' — small variations (4.5 % vs 5.5 %) move the endpoint signature significantly and degrade reproducibility across batches.
2. Mixed binder solution batches without expiry control — viscosity drifts, microbial counts climb, the same recipe runs differently on day 1 vs day 3 of the solution's life.
3. Spray rate not recorded — endpoint torque or bed temperature becomes meaningless because the input that drove the response is unknown.
4. Worn nozzles giving an inconsistent spray cone — local over-wetting at one nozzle compensated by local under-wetting at the neighbour, average looks fine, PSD and uniformity quietly degrade.
5. Hand-pouring binder into a fluid-bed granulation — distribution is uncontrolled, the lump where it was poured grows into a giant agglomerate while the rest of the bed under-wets.
6. Solution preparation done without a batch record — polymer lot, water grade, mixing time, temperature all under-documented, no link from solution lot to the granulation batches it fed.
7. Solution viscosity not measured at preparation — undissolved polymer not detected until atomisation fails at the nozzle.
8. Solution temperature drifts in the transfer line — uninsulated stainless steel from preparation vessel to spray skid loses 5–10 °C, viscosity rises, droplet size shifts.
9. Atomisation air pressure adjusted by operator to 'fix' a downstream observation — the documented recipe no longer matches the executed recipe.
10. Solution hold time exceeded but the granulation proceeds — neither QA nor production catches the exceedance because the hold-time clock isn't tied to the granulation batch.

Binder addition scale-up has predictable and unpredictable parts. Predictable: binder concentration, solution temperature and per-nozzle spray rate transfer directly across scales — the chemistry and the local droplet physics at each nozzle do not change. Unpredictable: total spray rate (scales with nozzle count, which scales with bed area, not bed mass), total solution mass (scales with bed mass), and distribution uniformity across the bed (depends on bowl geometry, plenum design and nozzle layout, which differ between equipment models).

The pragmatic scale-up rules: hold polymer chemistry, MW grade, concentration and solution temperature constant. Scale nozzle count to maintain the validated bed-area-per-nozzle ratio. Hold per-nozzle spray rate constant. Scale total solution mass with bed mass. Confirm in PPQ at production scale; pilot-to-production transfers almost always need a 5–10 % adjustment to the total spray time to fit local equipment characteristics. Tech-transfer documentation should capture every CPP at the per-nozzle level, not at the aggregated total.

Binder solution preparation is often where defensibility quietly erodes. The recipe says '5.0 % PVP K30 solution, 50 kg total mass'; the SOP says 'add polymer slowly to vortex, mix 30 minutes, hold ≤ 24 hours'; the actual practice may be a kettle in a side room with a stirrer and a clock. Three controls turn this into a defensible operation:

1. Dedicated batch record for the solution — polymer lot and weight, water grade, mass-balance check, mixing parameters, target viscosity verification, solution lot ID, expiry, operator and QA sign-off.
2. Viscosity check at preparation completion using a validated method (rotational viscometer at defined shear rate and temperature). The viscosity spec is part of the solution release.
3. Forward traceability from solution lot to granulation batches — the batch record of every granulation batch records which solution lot fed it.

Hold-time control matters because polymer solutions are not stable indefinitely. PVP solutions are typically stable 24–48 hours; HPMC solutions can grow microbial loads faster; starch pastes deteriorate within hours of cooking. The validated hold time lives on the solution batch record and is enforced; an over-hold solution is destroyed, not 'used up to avoid waste'.

• Solid-dose pharma — PVP, HPMC, HPC dominate; spray addition is standard for immediate-release and sustained-release alike.
• Effervescent products — moisture-free dry binders activated by trace water spray, because dissolved binder solution would react with the effervescent system.
• Nutraceutical chewables — sugar / maltodextrin solution binders with strict palatability and texture requirements.
• Veterinary medicated articles — same parameters as solid-dose with palatant solubility and species-specific dosing in scope.
• Agrochemical water-dispersible granules (WG / WDG) — surfactant solutions act as binder + dispersant simultaneously.
• Catalyst manufacture — silica or alumina sol binders applied to support pellets; same physics, different chemistry.
• Detergent and household products — synthetic polymer binders in high-throughput agglomeration lines.

• Binder solution batch record with polymer lot, mass balance, viscosity result and forward traceability.
• Solution hold-time clock enforced at the recipe level — expired solution cannot start a granulation phase.
• Per-nozzle spray rate captured at full resolution; per-nozzle imbalance surfaced live.
• Solution-tank load-cell cross-check against integrated pump flow; > ± 3 % opens a deviation.
• Solution temperature monitored from preparation vessel through transfer line to nozzle.
• Nozzle calibration and pre-phase photographic inspection enforced as preconditions.
• Atomisation pressure locked in the recipe; manual operator override flagged for QA review.
• Annual Product Review (211.180(e)) pulls binder addition CPV trends without separate reporting.
