Media Fill (Aseptic Process Simulation)

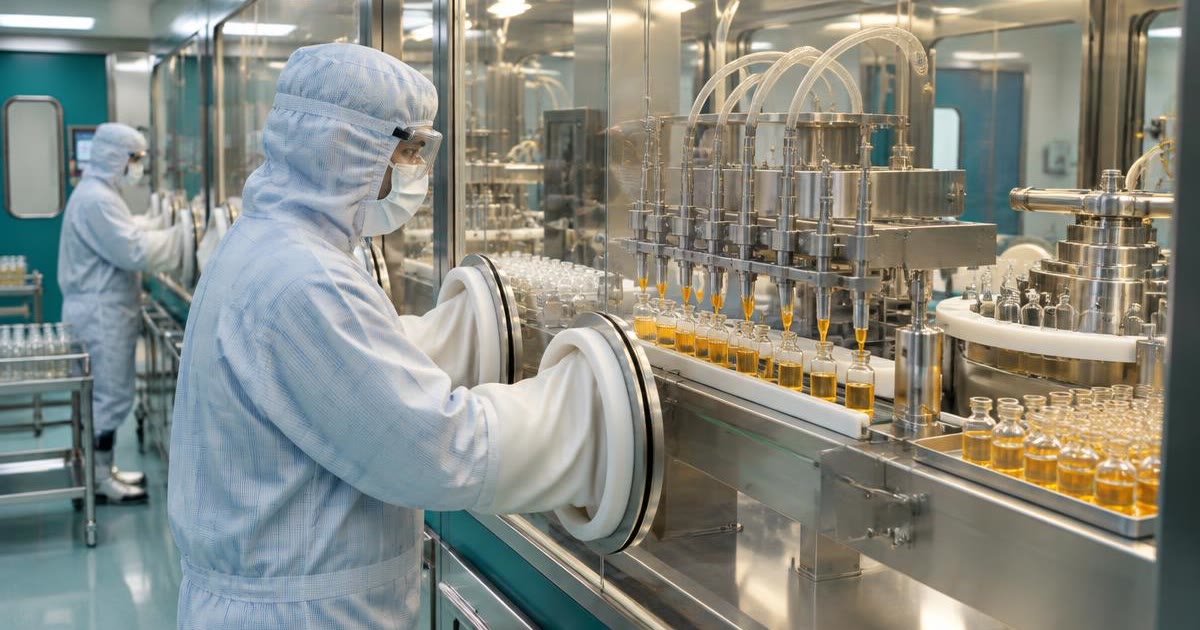

Media Fill (Aseptic Process Simulation) is a study that substitutes a microbiological growth medium for product to simulate aseptic manufacturing exposures and detect microbial contamination after incubation.

In FDA section IX.A, the simulation normally exposes the medium to product-contact equipment surfaces, container closure systems, critical environments and process manipulations. Sealed, medium-filled containers are then incubated. The exposure model therefore extends beyond the filling step on an aseptic fill line: it follows the conditions under which sterile elements come together and could become contaminated.

These activities examine different materials and answer different questions:

Environmental monitoring supports line evaluation; it is not the simulation itself. Likewise, media fill execution concerns performing the simulated process, not testing samples from a commercial product batch.

This article concerns manufacturing APS for sterile drugs. Sterile-compounding media-fill tests follow a separate standards framework; their numeric rules are outside this article.

Use this map to identify the applicable manufacturing framework—not to treat US and EU instruments as interchangeable.

For the binding US provision, consult 21 CFR 211.113(b): check the current text for the scope of the binding requirement.

FDA section IX.A connects process validation with § 211.113, stating that sterilization, aseptic filling and closing operations must be adequately validated. Its study-design recommendations remain guidance; citing a regulation does not convert every recommendation into law.

For manufacturing APS, navigate to section 9 of EU GMP Annex 1, including its paragraph 9.39 discussion of manual operations.

This is a scope map, not an equivalence table for schedules, numerical interpretation rules or legal obligations. Do not generalise this sterile-medicinal-product manufacturing framework to every food, supplement, device or chemical process.

FDA section IX.A.1 recommends that media fills closely simulate aseptic manufacturing operations, incorporating appropriate worst-case activities and conditions that challenge those operations. An uneventful fill is therefore not, by itself, a convincing demonstration of challenge coverage: the protocol needs to explain which manufacturing conditions it represents and why they were selected.

Annex 1 paragraph 9.36(i) calls for identifying worst-case conditions across relevant variables, including container size and line speed, assessing their process impact, and justifying the selected variables. As a practical approach, assess each variable against the actual aseptic fill line, rather than labelling one speed–container combination universally worst. Different selections may challenge different aspects of the operation.

Annex 1 paragraph 9.36(iii) also identifies maximum permitted holding times for sterile product and equipment exposed during the aseptic process as APS planning considerations. Translate those limits into identifiable exposure periods, not merely a statement that the run was “long enough.”

Make each selected challenge observable

The following matrix is a suggested protocol structure, not a prescribed regulatory table. Its examples assume an established manufacturing operating range and documented holding limits; selections remain process-specific.

Keep intent separate from proof

For practical record organisation, give each challenge an identifier carried from the protocol into media fill execution. Keep four elements distinguishable: the planned condition and rationale; the actual condition and supporting record; any deviation from the plan; and the reviewer’s conclusion about challenge coverage.

For example, a planned speed entry should not double as the actual-speed record. If execution differs, retain both values and document the reviewer’s assessment of whether the intended challenge was achieved. This structure lets a reviewer trace the design argument to an observable event without treating protocol approval as proof of execution.

An intervention list should function as an execution plan, not merely a catalogue of names. As a practical approach, connect each planned challenge to its sequence, actual execution and affected units.

FDA section IX.A.1 recommends addressing the representative number, type and complexity of normal interventions occurring with each run, alongside nonroutine interventions and events such as maintenance, stoppages and equipment adjustments. Recording only an intervention name does not show how often it occurred or whether its execution represented the intended complexity.

FDA section IX.A.3 distinguishes frequency of coverage: commonly occurring interventions should be routinely simulated, while rare interventions can be simulated periodically. Annex 1 paragraph 9.36(x) also calls for considering normal aseptic manufacturing interruptions when the process is idle, including shift changeovers, vessel recharging and introduction of additional equipment.

The following are suggested record fields, not mandated field names. They can structure a process event log for comparison against the approved plan.

If a challenge is omitted, substituted or interrupted, preserve what actually happened through contemporaneous recording. Document the difference from the plan and route the adequacy decision to authorised reviewers. Keep planned and actual entries distinguishable; never silently replace an actual event with the planned event. Reviewers can then assess whether the intended challenge was achieved and document any further action, rather than treating a completed checklist as proof of coverage.

Justify three things separately: how many units the APS fills, how long it represents aseptic processing, and which manipulations and interventions it accommodates. A matching unit count alone does not demonstrate matching time coverage. Keep these justifications together in the protocol so reviewers can assess the simulation as an operation, not simply a quantity.

Choose the count for the process

FDA guidance section IX.A.4 gives 5,000–10,000 units as a generally acceptable starting point—not a universal batch size. For operations with production sizes under 5,000, it recommends that media-filled units at least equal the maximum batch size made on the processing line.

Annex 1 paragraph 9.40 frames the count around representativeness: the number of filled units "should be sufficient to effectively simulate all activities that are representative of the aseptic manufacturing process", and the justification "should be clearly captured in the CCS" (contamination control strategy). It adds that "typically, a minimum of 5000 to 10000 units are filled" and that, for small batches under 5,000 units, the APS container count "should at least equal the size of the production batch". FDA calls its range a starting point; Annex 1 calls it a typical minimum and ties the justification to the CCS. For manual operations, paragraph 9.39 separately says the APS batch size should mimic routine aseptic manufacturing. See the EU GMP Annex 1 overview for broader context.

Justify elapsed time independently

FDA section IX.A.3 recommends determining run duration by the time needed to incorporate manipulations and interventions, with appropriate consideration of the actual aseptic operation’s duration. Where processing uses manual filling or closing, or extensive manual manipulations, FDA recommends that simulation duration generally be no less than actual manufacturing duration to best simulate operator-related contamination risks.

Worked comparison: manual filling

Assume a manual operation normally fills 120 units over 6 hours. These are illustrative assumptions, not recommended run sizes.

• Routine operation: 120 ÷ 6 = 20 units/hour average output.
• Proposed simulation: 120 units in 2 hours; 120 ÷ 2 = 60 units/hour average output.
• Comparison: identical counts, but the simulation takes one-third of the routine duration.

Evaluate the shorter simulation against FDA’s manual-process recommendation rather than declaring equivalence from count alone. The average rates describe output; they do not show when exposure, pauses or interventions occurred. During media fill execution, preserve the timing evidence needed to compare the planned challenges with what actually happened. This makes the duration justification reviewable alongside the unit count.

Start with a reconciled population, not merely an incubator count. Annex 1 paragraph 9.47 calls for reconciliation of processed units, including filled, incubated and non-incubated units, with justification for filled units not incubated. Keep these dispositions connected in the APS batch record.

Under Annex 1 paragraph 9.41, agitate, swirl or invert filled APS units before incubation so the medium contacts all interior container surfaces. Incubate and evaluate every integral unit, including cosmetic-defect units. Discards without incubation should match routine-fill discards and have a production-SOP basis specifying the same circumstances. An intervention must not remove more units than production would clear.

Treat the following as separate protocol questions. FDA guidance section IX.A makes these recommendations for manufacturing media fills:

• Duration: incubation should not be less than 14 days.
• Temperature: select conditions suitable for recovery of bioburden and environmental isolates; remain within 20–35°C at all times and within +2.5°C of the target temperature.
• Two-temperature schedule: if two temperatures are used, incubate for at least seven days at each, starting with the lower temperature.
• Inspector qualification: examine each unit using personnel with appropriate education, training and experience in inspecting media-fill units for microbiological contamination. If QC personnel do not inspect, QC-unit oversight should continue throughout the examination. Bring all suspect units immediately to the QC microbiologist.

Annex 1 adds two population and detection points. Units discarded after aseptic set-up or mandatory line clearances "would typically be incubated separately, and would not necessarily be included in the acceptance criteria for the APS" (paragraph 9.41) — so the incubated population and the acceptance population can differ, and the protocol should say which units fall where. Paragraph 9.43 calls for incubation in clear containers (or clear containers of identical configuration where the product container is not clear) and for isolates to be "identified to the species level when practical". Do not treat the FDA temperature schedule as an EU rule.

APS inspection asks one question: did microorganisms grow in an incubated simulation unit? Routine 100% visual inspection of filled product containers is a separate production control looking for particles and container defects; passing one does not answer the other.

Keep three decisions separate: the applicable growth target, what a contaminated simulation unit means, and the investigation response.

1. Select the acceptance framework. Under Annex 1 paragraph 9.46, "the target should be zero growth" and "any contaminated unit should result in a failed APS". FDA's section IX.A.9 recommendations, by contrast, vary by run size (table below). Keep the EU criterion and the FDA interpretation visibly separate; see EU GMP Annex 1 for jurisdictional context.
2. Interpret growth as process evidence. FDA section IX.A uses results to assess the potential for a drug-product unit to become contaminated during actual operations—not to count contaminated commercial units. Annex 1 paragraph 9.36(vii) says the detection method should be scientifically justified to ensure reliable detection.
3. Apply the investigation response separately. FDA IX.A.9 recommends treating any contaminated unit as objectionable and investigating it. Keep that response distinct from the arithmetic and the eventual batch-release decision.

FDA adds that, for any run size, intermittent contamination "can be indicative of a persistent low-level contamination problem that should be investigated", and that recurring contaminated units on a line, regardless of acceptance criteria, signal an adverse trend that should lead to problem identification, correction and revalidation (IX.A.9).

Worked case: assume 2,000 units were filled and examined, and one shows growth. The observed fraction is 1 ÷ 2,000 × 100 = 0.05%. This describes the observation; it establishes neither an allowable contamination percentage nor an acceptance decision. Under FDA’s fewer-than-5,000-unit recommendation, no contaminated units should be detected; one contaminated unit is cause for revalidation following investigation.

Initial qualification establishes the baseline; periodic requalification evaluates continued control. Keep line/shift coverage separate from operator-specific coverage when planning studies.

FDA section IX.A.2 recommends at least three consecutive separate successful runs during initial line qualification. It describes subsequent routine semi-annual qualification for each processing line, with activities and interventions representative of each shift and shift changeover incorporated into the program. This is a program-design recommendation, not simply a recurring calendar entry.

Annex 1 paragraph 9.38 recommends at least three consecutive satisfactory initial simulation tests covering all working shifts in which the aseptic process may occur. Normally, periodic APS should be repeated twice a year—approximately every six months—for each aseptic process, each filling line and each shift.

For manual operations, Annex 1 paragraph 9.39 recommends initially validating each type of container, container closure and equipment train with each operator participating in at least three consecutive successful APS. It recommends revalidation with one APS approximately every six months for each operator. Keep this manual-operator scope distinct; do not turn it into a universal line/shift interval or an exact deadline.

Outside the periodic schedule, FDA section IX.A identifies system changes, extended shutdowns and end-product sterility testing showing contaminated products as possible causes for system revalidation—not automatic outcomes for every change.

As a practical scheduling aid, maintain a coverage register connecting the aseptic fill line, shift pattern, configuration, operator where applicable, last relevant study and reassessment rationale. Link operator entries to the operator skill matrix. The register supports scope review without creating additional intervals or automatic triggers.

FDA section IX.A.9 says any contaminated unit "should be considered objectionable and investigated", that "the microorganisms should be identified to species level", and that any failure investigation "should assess the impact on commercial drugs produced on the line since the last media fill". Its purpose is to establish the origin and scope of the problem, not simply to obtain a passing repeat run.

Reconstruct the sequence before selecting a cause

A practical investigation should connect the execution chronology to the manufacturing and laboratory evidence. Use the batch record to locate interventions and unit groups, then compare monitoring observations, incubation history and inspection findings. Keep three categories separate:

• Established observations: what happened, when it happened, which units were involved and which records support the finding.
• Competing explanations: possible manufacturing or laboratory causes, with supporting and contradictory evidence for each.
• Unresolved questions: missing chronology, uncertain unit identity or unexplained observations, together with the work needed to resolve them.

Treat a timing association as a lead, not proof of causation. For example, growth in units associated with an intervention warrants examination of that intervention and subsequent handling; it does not, by itself, establish where contamination entered.

Confirm correction and assess manufacturing impact

FDA recommends process simulation run(s) after corrections to confirm that deficiencies have been corrected and the process has returned to control. If the investigation fails to reach well-supported, substantive conclusions about the failure’s cause, three consecutive successful runs alongside increased scrutiny of production may be warranted. This is conditional language, not a universal FDA rule for every investigation.

Annex 1 sets out a fuller EU response in paragraph 9.46: an investigation of the most probable root cause(s); corrective measures; "a sufficient number of successful, consecutive repeat APS (normally a minimum of 3)"; a prompt review of aseptic production records since the last successful APS, including a risk assessment of potential sterile breaches; inclusion of all unreleased batches in the investigation scope; quarantine of products made on the line after the failure until resolution; limits on an implicated operator until retrained and requalified; and resumption of production "only after completion of successful revalidation". Record corrective changes through change control. Authorised people decide product disposition; a successful repeat simulation is evidence for that review and does not by itself release product.

A proposed APS evidence model uses stable identifiers to connect the protocol version, run execution, intervention events, unit reconciliation, incubation and inspection observations, and investigation or review decisions. This is a practical data-integrity design, not a regulator-mandated schema.

Possible interfaces link manufacturing execution records to run and intervention identifiers, laboratory records to observation identifiers, environmental-monitoring records to the relevant location and time, and temperature-log storage to the incubation interval. These are architecture choices, not claims about any named application's capabilities. MES–historian integration can be considered where time-series evidence needs linking.

• Duplicate import: retain import history and identify the duplicate without counting its observations twice.
• Interrupted transfer: identify missing records and reconcile the completed transfer against its source.
• Mismatched run identifier: hold the disputed association for review rather than guessing the intended run.
• Corrected observation: preserve the original, link the correction, and record its reason and reviewer.

For each exception, preserve original records, identify the reconciliation issue, and document the reviewed correction; never silently overwrite evidence. An audit-trail review workflow can organise that review.

Lifecycle diagrams and data models support evidence assembly. They do not automate APS acceptance or product release: evaluation, approval and product disposition remain decisions for authorised people.

Use these practical review categories to test the APS evidence chain. They are not a ranked list of inspection findings; review actions refer back to the controls discussed above.

Final review checklist

• Confirm process scope, run identity and protocol version.
• Locate the rationale for selected challenges.
• Compare actual intervention coverage with the plan.
• Confirm unit reconciliation and documented dispositions.
• Check linked incubation and inspection records against run identity.
• Review deviations and their effect on interpretation.
• Trace result interpretation to observations and applicable criteria.
• Confirm investigation closure is supported by its evidence.
• Record authorised review and the basis for the final conclusion.

Can an authorised reviewer reconstruct what was challenged, what happened to the units and why the final conclusion follows from the evidence?
