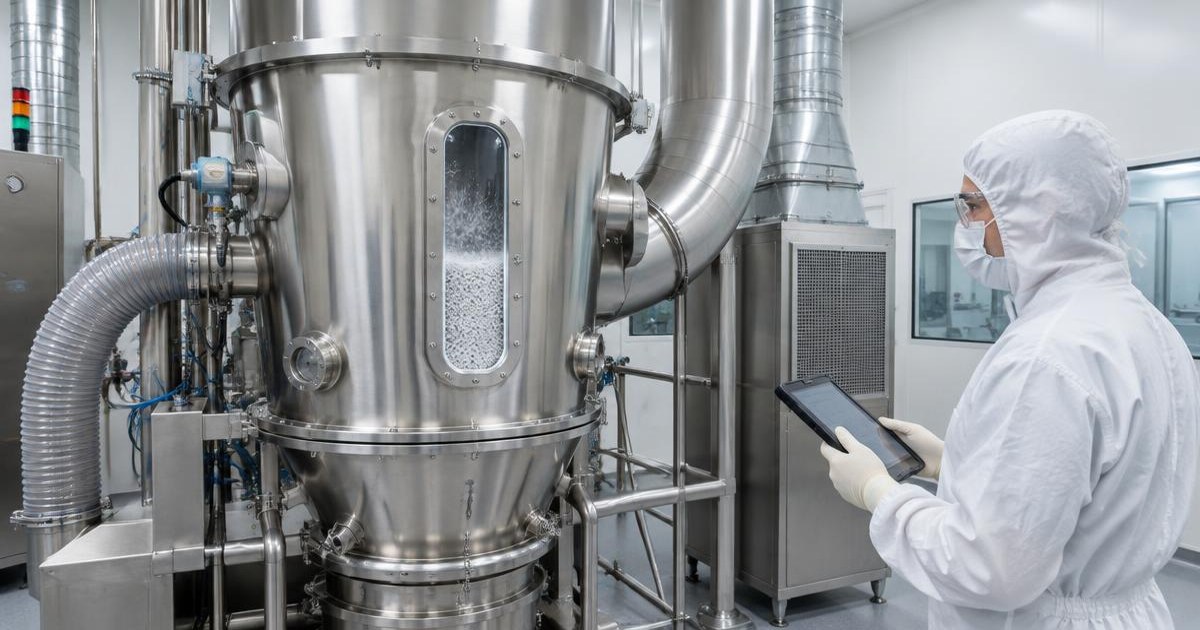

Fluid-Bed Granulation: Wetting, Drying and Process Risks

In industry practice, rather than as a legal definition, fluid-bed granulation is wet agglomeration in which sprayed liquid promotes particle bonding within a fluidized powder bed while solvent evaporates.

The intended transformation is from starting particles to agglomerates with product-appropriate size, structure and handling behaviour. A larger measured particle size alone does not establish success: oversized wet lumps or weak clusters that break during transfer can also shift the result.

These are engineering distinctions, not universal acceptance criteria. Binder addition records an input; it does not demonstrate that useful granules formed. Likewise, a granule-size distribution describes the sampled material, not the route that produced it. Interpret it alongside structure, strength and the intended downstream use.

Spray position is a product- and machine-specific configuration choice, not a defining universal geometry. The same equipment family can support different operations; identify whether the batch stage is intended to build agglomerates, deposit a coating or perform fluid-bed drying before interpreting its settings or endpoint.

As an engineering model, fluid-bed spray agglomeration involves liquid distribution, particle encounters and drying—not simply adding binder to moving powder. Droplets wet particle surfaces; encounters between wetted particles can create temporary liquid bridges. As solvent evaporates, binder becomes concentrated and deposits at contacts. Growth persists only where the resulting bonds survive subsequent collisions and drying stresses. Liquid reaching the bed therefore does not translate directly into retained granule growth.

Air movement and evaporation do different jobs

Fluidizing air supports particle movement and circulation; its ability to remove solvent depends additionally on humidity, heat supply and contact with wet material. Air distribution and bed loading influence which regions circulate and receive drying air. For aqueous systems, higher inlet humidity reduces the air’s capacity to take up additional water at otherwise comparable conditions. Increasing airflow is consequently not interchangeable with increasing heat supply or reducing liquid delivery: each changes a different part of the process.

Several tendencies compete. Wet contacts encourage agglomeration, while collisions can cause attrition and airflow can entrain fines. Concentrated spray exposure can produce local overwetting; droplets that dry before useful contact can leave binder-rich fines instead of effective bridges. These mechanisms can coexist. Apparently stable average temperature or moisture can conceal wet spray zones and drier, poorly exposed regions because particles follow different circulation paths. The resulting granule size distribution reflects competing growth, breakage and loss—not growth alone.

A temporary balance, not a fixed endpoint

During spraying, solvent enters with the binder liquid while evaporation removes it. If input exceeds removal, solvent accumulates; if removal exceeds input, the retained inventory falls. Similar input and removal rates can temporarily stabilize that inventory without establishing uniform moisture or a finished granule structure. This distinction connects spray-rate control to the later drying mass balance; numerical accounting belongs in the worked cases.

Use the scale-up FAQ for transfer assessment. The mechanisms above explain why matching one controller setting does not establish equivalent physical history.

As engineering practice, select signals for the physical questions they answer, not simply because the controller displays them. Distinguish commanded settings from independently measured delivery and bed response: a pump command is not proof of solution flow. For each recorded signal, identify its measurement location and engineering unit.

No temperature signal is universally dominant. Select signals by sensor placement, process stage, formulation behaviour and the endpoint being evaluated. Likewise, there are no universal spray rates, temperature bands or airflow settings. Product-specific development, equipment capability and operating experience inform justified ranges and assessment of each potential critical process parameter.

Keep four decisions distinct: normal operating ranges describe intended operation; alert conditions prompt assessment; intervention criteria define when action is needed; endpoint criteria establish stage completion. Document these distinctions alongside each parameter tolerance band, rather than treating every boundary as an endpoint or every alert as a stop instruction.

A typical fluid-bed granulation lifecycle uses explicit stage transitions rather than a single uninterrupted recipe timer. The sequence below is an engineering-practice template; product-specific instructions define the checks, acceptance criteria and permitted actions.

1. Prepare equipment and materials. Check material identity against the intended batch, binder-solution identity and concentration, equipment configuration, nozzle condition, filter identity and installation, instrument readiness, and applicable operating instructions. Resolve mismatches before charging rather than relying on later process signals to expose them.
2. Charge and establish fluidization. Load the specified materials and establish the intended bed movement before introducing spray. Assess observations alongside airflow and pressure behaviour; a running fan alone does not establish that the charge is fluidizing adequately.
3. Initiate spray. Confirm that solution reaches the nozzle and that delivery is behaving as intended. Apply the signal limitations under parameters and reconcile the completed spray interval before transition.
4. Control agglomeration. Follow the product-specific operating strategy while observing bed behaviour and process trends. Associate each intervention with its process stage, observed condition, operator action and subsequent response. This makes an adjustment interpretable rather than leaving an unexplained change in the trend.
5. Complete spraying and final drying. Evaluate spray completion against the defined delivery criteria, then assess drying against the product’s physical and analytical endpoint criteria. Depending on the product, these may include granule-size distribution and moisture or residual-solvent results. Elapsed time or a temperature plateau alone is not an adequate substitute for that evaluation.
6. Sample at defined decision points. Specify sample timing, location, handling and test-method identity, including whether sampling occurs during processing or at discharge. A convenient accessible sample is not automatically representative of the whole bed. Preserve these details through the sample login handoff.
7. Cool where relevant and discharge. Apply the product-specific cooling criteria before transfer when cooling is part of the process. Confirm the intended receiving container and preserve batch identity through discharge.

Handoff to review connects the batch execution history, endpoint evidence and unresolved questions. Process completion marks the end of execution, not the final batch disposition; designated reviewers assess the record before the authorized human decision.

These engineering balances are calculation methods, not recommended recipes, equipment-capacity claims or acceptance limits. Use consistent accounting boundaries; unity means the dimensionless whole in each mass-fraction expression.

Template A: solvent load versus evaporation

Assume the sprayed liquid contains only solvent and nonvolatile binder solids. Define delivered solution flow q (kg/min), solvent mass fraction s (kg solvent/kg solution), estimated solvent evaporation E (kg/min), and interval t (min). Assume constant conditions, no other solvent inputs or losses, and sufficient solvent inventory to sustain E.

• Solvent input rate = q × s (kg/min).
• Net solvent accumulation = (q × s − E) × t (kg).
• Binder-solids addition = q × (unity − s) × t (kg).

The evaporation balance uses the solvent fraction s, not the solution’s solids fraction. The complementary fraction, unity − s, accounts for nonvolatile binder solids delivered, not the mass retained after entrainment, deposits or transfer losses. Positive accumulation indicates increasing solvent inventory; negative accumulation indicates depletion. Decision use: interpret overall wetting tendency alongside spray-rate control, without treating a bulk balance as proof of local wetting uniformity.

Case B: water removal on a stated moisture basis

Assume water is the only volatile component, dry-solids mass D (kg) remains constant, and initial water mass is W (kg). No solids enter or leave during this calculation interval. Let target wet-basis water fraction x (kg water/kg wet material) lie between zero and unity, excluding unity.

• Initial wet-basis fraction = W / (D + W); initial dry-basis ratio = W / D (kg water/kg dry solids).
• Target water mass Wtarget = D × x / (unity − x) (kg).
• Water to remove = W − Wtarget (kg).

Derivation: at the target, the wet-basis definition is x = Wtarget / (D + Wtarget). Multiply by total wet mass: xD + xWtarget = Wtarget. Collect the water terms: xD = Wtarget(1 − x). Since x < 1, divide by the positive quantity 1 − x to obtain Wtarget = xD / (1 − x). The unchanged dry-solids boundary is essential: if fines leave the bed, D changes and this derivation cannot use the original charge unchanged. Subtract target from initial water to obtain removal Rwater = W − xD / (1 − x). Positive Rwater means water must leave; zero means the initial bulk mass already has the target fraction; negative Rwater means water would have to be added, so drying alone cannot reach it. These signs describe the accounting result, not uniformity or authorization to adjust the batch.

First check W exceeds Wtarget. Equality calls for no removal; a lower starting water mass means drying cannot reach that target. Wet basis includes water in the denominator; dry basis excludes it. Decision use: reconcile moisture reporting and water/LOD compensation. The calculated target neither establishes moisture uniformity nor replaces the selected analytical method.

Template C: binder actually delivered

Define issued solution I, final vessel heel H, priming waste P and returned solution R, all in kg. Each deducted quantity is part of I but never reaches the bed; categories do not overlap. Assume no other losses or retained solution, and homogeneous, unchanged binder-solids mass fraction b (kg binder/kg solution).

• Delivered solution = I − H − P − R (kg).
• Delivered binder solids = (I − H − P − R) × b (kg).

Decision use: investigate planned-versus-delivered binder differences through net-versus-gross reconciliation, checking transfer losses before attributing the difference to bed behaviour.

As engineering practice, organize the fluid-bed granulation record around batch identity and recipe revision. Link material lots, binder-solution preparation, actual additions, equipment configuration, time-series observations, samples, interventions and review decisions. Keep prepared solution quantity distinct from quantity delivered to the bed; a preparation record alone does not establish the addition history.

For each measurement, retain the signal name, value, unit, timestamp, sensor or method identity, source record and applicable moisture basis. For each sample, retain its identifier, collection time, collection location and the process stage represented. Link laboratory results to that sample rather than assigning them to whichever stage is active when the result arrives.

Handoffs among equipment controls, historian records, laboratory results and manufacturing records can use checked manual entries, file transfers or electronic interfaces. Define ownership, batch-association rules and reconciliation checks at each handoff. For electronic histories, MES–historian integration planning should address duplicate transfers, missing intervals and late-arriving results without silently overwriting earlier records.

Align clocks and retain source timestamps separately from receipt times. Use clock-drift monitoring to identify timing discrepancies before interpreting spray, airflow and temperature events together. Preserve original values and units alongside converted values, conversion rules and documented time corrections. Mark missing intervals explicitly rather than filling them with apparently observed values.

An exception-recovery record should link the interruption, material already delivered, bed condition, actions taken, assessments and the authorized continuation decision, including who decided and when. Identify uncertainties in delivered quantity or bed observations rather than treating estimates as measurements. Restoring a data connection is not permission to resume processing. Preserve the actual sequence—including pauses, retries and subsequent corrections—in the batch execution history, rather than reconstructing a smooth process history afterward.

These engineering-practice checks treat mechanisms as hypotheses, not diagnoses. Compare time-aligned observations before changing operation. For pressure anomalies, distinguish bed resistance from filter loading and measurement faults: check pressure-tap locations, sensing lines and instrument condition against independent airflow and bed observations. Use as-found calibration results when assessing suspect readings.

Before intervention, assess product-specific solvent-vapour, combustible-dust, containment and exhaust hazards through site safety procedures. For interrupted batches, use the recovery record described above in the batch record to support restart or disposition decisions.

Start with jurisdiction, product classification and intended use—not the equipment name. A shared fluid-bed platform does not establish a shared regulatory framework.

For US oral-solid drug manufacturing, the historical FDA guide describes its purpose as inspection and evaluation of manufacturing and control processes. Its status remains distinct from the binding 21 CFR 211 framework.

As engineering practice, keep dryer review questions specific: is the material suspended adequately in air, could incomplete fluidization leave wetter regions, and could bag filters retain contamination? Connect the last question to cross-contamination control. Treat binder-spray agglomeration as a separate engineering mechanism, not a regulatory definition.

Historical numerical examples are not a basis for current operating limits, specifications or universal acceptance criteria. Establish product-specific criteria through the technical work described above.

As engineering practice, assess any proposed in-line or at-line method against a defined question: moisture trend, endpoint support, physical change, or investigation of variability. A process analytical technology assessment starts with the intended use, not the instrument.

• Compare with a suitable reference method; match sample timing and material location so comparisons represent corresponding bed conditions.
• Assess measurement location, calibration scope, response delay and fouling. Examine behaviour outside evaluated operating conditions and define when the output is unsuitable for decisions.
• Separate the raw measurement from any calculated estimate and from the decision criterion applied to that estimate. Correlation with moisture does not establish direct measurement of particle size, binder distribution or every relevant quality attribute.

Treat monitoring, feedback control and batch disposition as separate decisions with distinct supporting evidence. Installing an instrument alone does not establish real-time release testing. Keep human approval and release responsibilities explicit; use the integration section above for data handling and record connections.

These hypothetical engineering illustrations are not customer outcomes. Each starts with a product-specific question rather than a promised improvement.

• Tablet granulation: Compare trial batches for granule size distribution, moisture and density, then evaluate die filling, compression behaviour, tablet strength and dissolution. Assess these relationships using the intended formulation and downstream process; larger granules alone do not establish improved compressibility, stronger tablets or better dissolution.
• Supplement or food powder: Suppose the objective is easier reconstitution. Compare wetting time, lump formation and dispersion under defined preparation conditions. Use formulation-specific trials, including storage exposure and the intended liquid, rather than treating particle enlargement as proof of improved reconstitution.
• Specialty chemical powder: Suppose the objective is less dusty transfer. Evaluate dust generation and flow alongside solvent compatibility with the formulation and equipment. Use the safety data sheet and product-specific hazard assessment to frame trials, without importing pharmaceutical specifications.

For legal applicability, refer to the scope map above.

Use this engineering-practice checklist to connect the intended process, the observed batch history and the proposed next manufacturing step.

Readiness before execution

• Do material attributes and solution composition have identifiable justifications for this formulation and batch loading?
• Are the equipment configuration, measurement locations, operating boundaries and endpoint criteria justified for the intended stages?
• Can operators identify the planned transitions and the recovery model described above before starting?

Evidence during execution

• Does the linked batch execution history identify the evidence source selected under parameters and any missing spray interval?
• Are representative observations connected to their time, process stage and sampling or measurement location?
• Does the process event log connect interruptions and interventions to the observed conditions, actions and subsequent response? Use the earlier diagnostic table to guide checks.

Review before the next step

• Does in-process reconciliation account for material delivery, recovery, samples and losses using the earlier balances?
• Is the moisture reporting basis explicit, and do analytical results and physical attributes support the proposed next step?
• Are unresolved exceptions visible to the responsible reviewers, with their implications addressed in the proposed batch decision rather than hidden by an acceptable endpoint result?

Transfer or change review

Apply the scale-up FAQ’s transfer assessment; list affected prior justifications and the evidence needed before carrying operating boundaries forward.
