Heavy Metals in Supplements: Testing and Limits

Heavy metals in supplements are elemental contaminants—especially lead, arsenic, cadmium and mercury—evaluated in dietary supplement ingredients and finished products. This operational grouping includes arsenic, a metalloid; it is common supplement quality-control terminology, not a precise chemical classification or statutory definition.

Testing produces an analytical finding for the sample examined, using a defined method and reporting convention. Comparing that finding with a specification asks a different question: whether the result meets the applicable acceptance criterion. Quality disposition is the subsequent human decision about the material or batch, informed by that comparison and the wider quality record.

A result below a reporting threshold is not a measurement of absolute absence. Likewise, a passing contaminant result does not establish ingredient identity or, by itself, settle batch disposition. Keeping the analytical finding, specification comparison and quality decision separate makes the conclusion understandable without asking a laboratory result to answer questions outside its scope.

For US dietary supplements under 21 CFR 111.70(e), manufacturers must establish finished-batch product specifications for identity, purity, strength and composition, including contamination limits. The practical task is to translate that obligation into justified, analyte-specific acceptance criteria—not to substitute a universal supplement limit table. See finished product specifications for the specification framework.

FDA's position on lead is the anchor for the other metals. On its lead in food and foodwares page FDA states: "Because there is no known safe level of exposure to lead, the FDA monitors and regulates levels of lead in foods." It adds that "it may be possible to reduce the levels through changes to agricultural or manufacturing practices" and that its goal "is to limit consumer exposure to lead, with a focus on protecting the very young, through developing regulations, action levels, and providing educational information." FDA's published lead action levels address processed food intended for babies and young children; that page does not set a lead limit for dietary supplements, so a supplement maker still has to establish and justify its own limit under Part 111.

For US food assessments, FDA's arsenic information describes considering arsenic toxicity, the measured food level and estimated consumption. This explanatory information provides assessment context; keep it distinct from the binding specification obligation above.

For separate agency background, consult FDA Lead in Food and Foodwares and FDA Mercury in Food and Dietary Supplements. These references belong alongside the regulatory map, rather than serving as numerical inputs to the product-specific calculation examples.

In specification-development practice, document the acceptance criterion and rationale separately for lead, arsenic, cadmium and mercury. Identify the product and intake basis so reviewers can understand what each criterion addresses. Treat other jurisdictions and product classifications as separate scope assessments: do not import food-category values, warning thresholds or compendial figures into supplement examples merely because they concern the same element.

For implementation, use the Part 111 overview to orient the wider manufacturing workflow. Generic software support can organise specifications, laboratory reports and review records; its role is administrative, not toxicological. Keep scientific justification, approval of the specification and batch disposition assigned to responsible people. A stored threshold or a passing software comparison is not, by itself, a defensible release decision.

For supplement manufacturers, a practical risk assessment starts with questions about the actual material and process—not a contamination ranking assigned to an ingredient category. Use origin, processing history and measured elemental profiles to decide where investigation is most useful.

For US foods, FDA's arsenic information describes arsenic entering during processing through contaminated water or arsenic-containing processing aids used to filter juices. For US foods discussed in FDA's cadmium information, FDA identifies seaweed as a source of exposure to arsenic and cadmium and, to a lesser extent, lead and mercury. These explanatory examples inform investigation; they do not establish the contamination status of a particular supplement lot.

In supplier qualification and incoming inspection, connect each result to material identity, supplier lot, origin and processing history. For botanicals, harvest lot traceability helps preserve that context. Compare observed result trends within comparable materials and methods; use out-of-trend handling to investigate shifts rather than assuming a supplier's historical profile remains unchanged.

Keep contamination-source assessment separate from analytical matrix effects. A difficult digestion raises a question about measurement reliability; it is not evidence that the ingredient is contaminated. Record both the suspected source and the analytical uncertainty so follow-up work addresses the right question.

A useful specification-development record connects the analytical result to the product’s intended use. As manufacturing practice, record the analyte, analytical basis, material or product scope, acceptance criterion, units, labeled daily-intake assumption, scientific rationale, method capability and approval history. The analytical basis identifies what is measured, including whether the result represents a total element or a particular chemical species. Approval history identifies who approved the criterion and which version applies. An internally approved acceptance criterion is a product-specific decision, not a declaration of universal safety. Keep its purpose distinct from a label claim or release limit.

Worked case: concentration to daily intake

For a single analyte, assume C is its measured concentration in micrograms per gram and M is a positive labeled daily product mass in grams per day. Both refer to the same product basis. The calculated daily intake E is:

E = C × M, in micrograms per day.

If an internal daily-intake criterion B, in micrograms per day, has already been scientifically justified and approved for this product, its corresponding concentration criterion is:

C_limit = B ÷ M, in micrograms per gram.

The arithmetic translates B into a concentration criterion; it does not justify B. Keep the scientific assessment supporting B separate from the calculation, with both linked to the specification-development record.

For a proposed serving change, retain C and substitute the revised positive daily mass M_revised: E_revised = C × M_revised. A greater daily mass increases calculated intake even though the laboratory concentration is unchanged. If B remains applicable, the corresponding revised concentration criterion is B ÷ M_revised. Reviewing only the concentration result therefore misses the effect of changed labeled consumption.

Worked case: prospective blend assessment

Assume positive ingredient masses W_a and W_b in grams, with concentrations C_a and C_b in micrograms per gram for the same analyte. Both ingredients already meet their approved component specifications. Assume homogeneous mixing, a consistent mass basis, no analyte addition or removal, and no mass change beyond combining the ingredients.

C_blend = (W_a × C_a + W_b × C_b) ÷ (W_a + W_b), in micrograms per gram.

For labeled daily blend mass M, predicted intake is E_blend = C_blend × M, in micrograms per day. A real assessment includes every contributing ingredient. This prospective calculation supports formulation review; it neither replaces the heavy-metals verification strategy nor provides a method for accepting rejected material.

Apply these calculations separately to lead, arsenic, cadmium and mercury, using the analyte definition in each specification—not a shared acceptance number. Keep as-received or dry-mass conventions consistent throughout. Link formulation masses, product specifications and labeled daily use so a reviewer can trace each concentration criterion to the assumptions used to develop it.

A practical heavy-metals control strategy connects ingredient evidence, manufacturing controls and finished-product evaluation. These stages answer different questions; an incoming result should not be treated as interchangeable with evidence about the formulated supplement.

Binding US supplement verification framework

For US dietary supplements, 21 CFR 111.70(c)(1) requires manufacturers to establish in-process specifications at points, steps or stages in the master manufacturing record where control is necessary to help ensure specifications are met. Operationally, connect those checkpoints to the applicable master manufacturing record, rather than creating an isolated laboratory schedule.

For US dietary supplements, 21 CFR 111.75(c) requires finished-batch verification for every finished batch or a subset identified through a sound statistical sampling plan. For US dietary supplements, 21 CFR 111.75(c)(2) requires appropriate tests or examinations to determine compliance with the specifications selected under paragraph (c)(1).

For US dietary supplements, 21 CFR 111.75(c)(3) requires adequate documentation of the basis for the selected-specification approach. For US dietary supplements, 21 CFR 111.75(c)(4) requires quality control personnel to review and approve that documentation.

Recommended implementation sequence

For incoming assessment, a supplier certificate of analysis needs a clear lot identity, analyte, method and units before its results can be interpreted within the manufacturer's control strategy. Possessing a certificate is not a complete verification rationale: explain what it demonstrates, what remains unresolved and how subsequent controls address those questions.

Recommended workflow: ingredient-lot evidence → incoming assessment → relevant process checkpoints → finished-batch evaluation → human disposition.

At finished-batch evaluation, connect results to the applicable finished-product specifications. Assign an owner to review unresolved questions before the human batch-release decision. Keep that disposition record distinct from approval of the verification-basis documentation described above: one records the batch decision, while the other approves the rationale underlying the selected-specification approach.

The selection itself carries a condition. Under 21 CFR 111.75(c)(1) the manufacturer "must select one or more established specifications for identity, purity, strength, composition, and the limits on those types of contamination that may adulterate or that may lead to adulteration of the dietary supplement that, if tested or examined on the finished batches of the dietary supplement, would verify that the production and process control system is producing a dietary supplement that meets all product specifications". If heavy metals are not among the selected finished-batch tests, the documentation under 111.75(c)(3) has to show why the selected tests, together with upstream component and in-process controls, still ensure the finished batch meets its contaminant limits; quality control personnel then review and approve that basis under 111.75(c)(4).

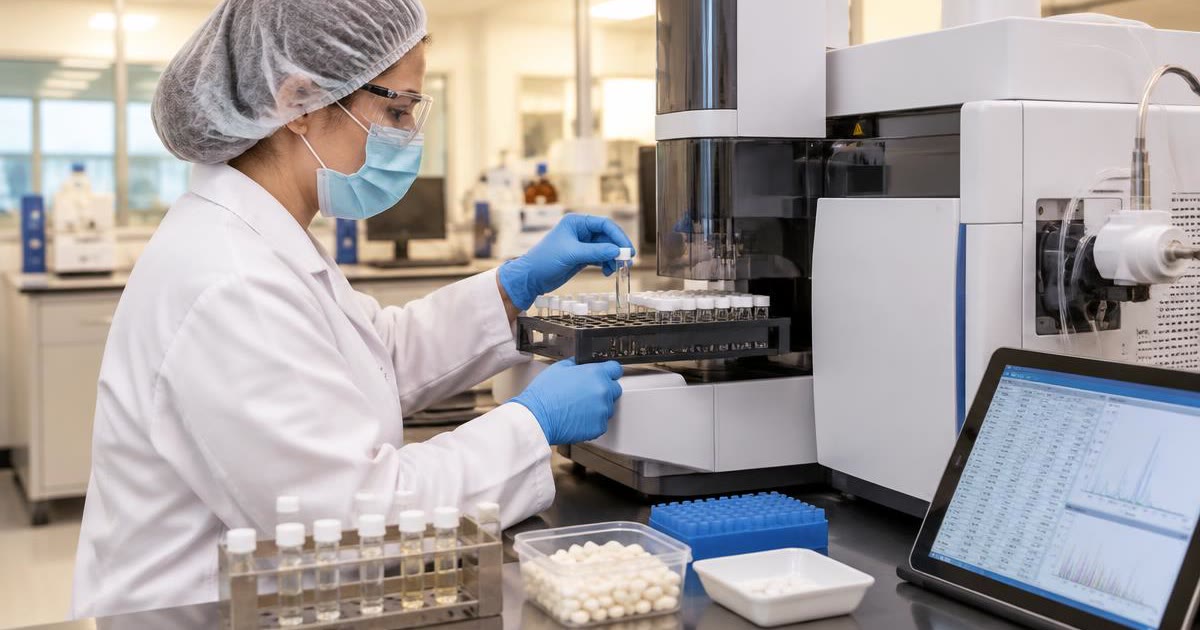

Inductively coupled plasma mass spectrometry (ICP-MS) is commonly used for trace-element analysis of supplements, including lead, arsenic, cadmium and mercury. It is not a universally prescribed instrument. In analytical practice, method selection starts with the product matrix, target analytes, specification level, sample preparation and demonstrated analytical performance—not the instrument name alone. Assessing a scientifically valid method means considering whether the complete procedure answers the intended question.

Evaluate preparation and measurement together

Digestion or extraction brings the analytes into a form suitable for measurement; preparation choices depend on whether the objective is an elemental total or selected chemical species. Contamination control limits contributions from reagents, vessels and handling. Calibration relates instrument response to analyte concentration, while blanks help reveal background contamination. Recovery assessment evaluates how well the procedure measures added or otherwise known analyte amounts. Matrix-effect evaluation checks whether other sample constituents suppress or enhance the response. These are method-development and suitability considerations, not a statutory checklist.

Match the reporting basis

Total arsenic and inorganic arsenic are different analytical reporting bases, as are total mercury and methylmercury. A total-element measurement does not by itself identify the amount of each chemical species. Before comparing a result with a specification, match the analyte or species label, units and sample basis, such as dry material versus product as received.

• Detection limit: the level at which the method can distinguish analyte presence from background under stated conditions.
• Quantitation limit: the level at which the method can quantify the analyte with stated analytical performance.
• Reporting qualifier: a laboratory annotation explaining a result's status or limitation, such as an estimated value or a result below a reporting threshold.

Evaluate capability at the actual specification level, including preparation and dilution effects—not merely the instrument's sensitivity. Keep these metadata distinct in the laboratory report or LIMS.

Laboratory-request checklist

• Identify the sample and matrix; list analytes and the species basis where relevant.
• Specify requested reporting units, acceptance criteria and reporting thresholds.
• Identify the preparation method and agree how qualified results will be treated.
• Agree how measurement uncertainty will inform the acceptance decision before reviewing borderline results; do not assume a universal guard band.

For supplement heavy-metals review, a practical evidence chain connects the approved specification version to ingredient genealogy, the finished batch, the sample, the laboratory result and the quality decision. Keep scientific justification, measured data and disposition rationale as distinct records linked by stable identifiers—not as a single editable summary.

Proposed record structure

Scientific justification → approved specification version; ingredient lots → finished batch → sample → laboratory result → quality decision. The decision also links to the applicable specification version and reviewer identity.

This diagram proposes relationships between records, not an application's implemented schema. Ingredient genealogy identifies which incoming lots contributed to the finished batch; the sample record identifies what material was actually tested. Suggested fields are:

• Specification: version identifier, analyte basis, acceptance criterion, units and scientific-justification reference.
• Sample and result: sample identity, linked lot or batch, analyte basis such as total or inorganic arsenic, reported value, result units, qualifiers, quantitation limit, method reference and original laboratory report reference.
• Decision: evaluated result identifiers, specification version, disposition rationale, reviewer identity and approval record.

Preserving these relationships supports data integrity by design: a reviewer can distinguish why a criterion was selected from what was measured and why the batch was accepted or rejected.

Control interfaces before using imported results

For generic interfaces among contract laboratories, LIMS, ERP and quality-management systems, reconcile sample and lot identifiers, preserve source reports, validate unit mappings and detect duplicate result imports. Keep missing values distinct from numerical results; a blank field is not zero. These controls belong in the design of laboratory-data integration, including transfers made through files rather than direct connections.

Route an unmapped or inconsistent message to a review queue instead of converting it into an acceptance status. In this proposed workflow, software support is limited to evidence organisation and workflow assistance. Acceptance, investigation approval and batch release remain decisions for authorised people. A successful import or populated result field is not a quality disposition.

Consider this analytical practice example: a supplement’s cadmium result is reported below quantitation, but the stated quantitation limit exceeds the approved specification. Assume the result and specification concern the same analyte, product basis and units, and the qualifier refers to that quantitation limit. The report does not establish that the specification is met: the reporting threshold leaves concentrations above the acceptance limit unresolved. Assigning zero would turn a qualified result into an unsupported assertion of absence.

Keep the batch decision pending while an authorised reviewer defines the investigation question: is the method insufficiently capable, or does the report need clarification? Select the resolution before ordering additional analysis. Options include laboratory clarification or analysis using a method capable of resolving the specification comparison; the reviewer then assesses the combined evidence.

• Nonconforming result: an interpretable result fails the approved acceptance criterion.
• Inconclusive result: the evidence cannot establish whether the criterion is met, as in this case.
• Data-transfer error: the recorded value or qualifier differs from the laboratory report; use the integration controls covered above.

In common laboratory investigation practice, preserve original reports, correction reasons and links to additional analyses in the batch execution history. Do not replace an inconvenient result with a later passing result without a documented assessment explaining their relationship and the authorised disposition.

Connect an out-of-specification investigation to corrective and preventive action where it identifies a process or system problem. An isolated reporting question does not automatically establish a systemic manufacturing failure.

These are foreseeable operational weaknesses in supplement contaminant control, not findings about particular manufacturers. Use the controls as practical review prompts.

Trend review can identify shifts in supplier, material or process performance; it does not cancel an individual result. Keep comparisons within compatible analyte, method and reporting bases. An annual product review for supplements can organise that history without replacing lot-level assessment.

Assign a trigger and owner to each control. For example:

• Formula or labeled-use proposal: formulation lead initiates reassessment with quality review.
• Changed material handling or observed segregation: sampling lead reviews collection and homogenisation.
• Supplier method notice or changed report format: supplier-quality owner requests laboratory comparability review.
• Scheduled trend review or an individual excursion: quality reviewer examines lot results and initiates follow-up.

Use the calculation, method and exception sections above for the technical reasoning; record the reassessment decision and responsible reviewer.

Use this practical checklist alongside the explanations above; owners below are suggested roles.

Initial implementation establishes record relationships and decision rules. Ongoing review considers supplier, method and product changes, adverse trends and unresolved exceptions through change control and quality review.

Application FAQs

Can a pass flag close the review? Use the complete report and qualifiers, as covered above; link the reviewed evidence and disposition to the batch record.

What if an ingredient supplier changes? Revisit the supplier assessment and affected verification decisions rather than carrying the previous conclusion forward unchanged.

Decision-quality test: can another reviewer identify which specification applied, what was measured, whether the result was interpretable and who authorised the outcome?
