Impeller and Chopper Speed: Meaning, Evidence and Controls

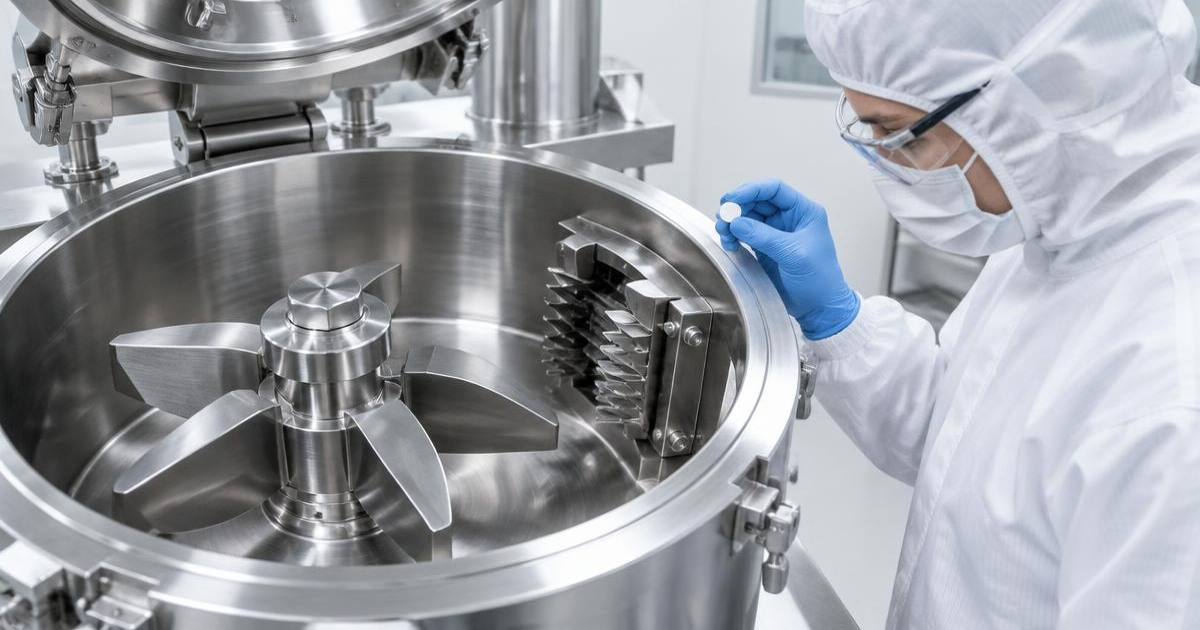

Impeller and chopper speed is the pair of rotational-speed settings for a high-shear granulator’s main mixing impeller and auxiliary chopper, expressed in revolutions per minute (RPM). The term describes mechanical operating variables, not the liquid input, moisture endpoint or particle-size acceptance criteria.

Keep three record concepts separate: the commanded setpoint is the requested speed; measured rotational speed is feedback indicating actual rotation; and an approved operating profile specifies how settings apply across phases, including transitions and permitted variation. A setpoint entry alone does not establish the measured speed history.

As a practical recording convention, identify the equipment configuration and processing phase alongside every speed value. Include the bowl and tool configuration, rather than relying only on an equipment family name. This context supports phase-by-phase execution and keeps speed records distinct from the measured wet granulation endpoint.

In common high-shear granulation practice, the impeller promotes bulk movement and mixing, while a chopper can contribute localized disruption and redistribution of agglomerated material. Neither tool acts uniformly on the entire charge. Geometry, material condition and exposure to the tools influence the result: material circulating past a chopper experiences a different history from material adhering to the vessel wall.

Wetting distributes liquid onto and into particles; coalescence joins wetted particles or agglomerates; consolidation rearranges and densifies them; breakage separates them into smaller fragments. These mechanisms compete. Increasing a speed can improve liquid distribution while also changing collision intensity, consolidation and breakage. A uniformly finer or coarser product is therefore not a dependable general prediction. The response can also change as the mass becomes wetter or more cohesive.

A practical interaction study treats impeller speed, chopper speed, binder delivery rate and initial material condition as separate factors. For a rate comparison, hold total binder addition constant and account for the resulting difference in addition duration. Select initial moisture or another relevant critical material attribute deliberately rather than allowing uncontrolled lot differences to stand in for a factor. Compare combinations, not just isolated speed changes. Observe granule size distribution, fines, density and moisture alongside downstream responses appropriate to the product, such as tablet strength or dissolution. Align sampling with process phase so unequal wet-massing exposure does not obscure interpretation.

For heat-sensitive formulations, track material temperature and exposure duration alongside product-specific degradation observations. For fragile particles, examine attrition or structural damage; the considerations in shear-sensitive blending help frame that question without assuming a safe speed.

Measured power or torque is a load signal, not a direct measurement of moisture, granule size or completion. Interpretation depends on equipment load, fill, drive losses and instrument scaling, including whether the displayed value is absolute or normalized. Compare signals with material observations before treating a trend as an endpoint indicator. Which effects matter for product quality belongs in critical process parameter evidence.

A useful batch wet-granulation profile commonly separates dry mixing, liquid addition, wet massing and discharge preparation. These are process-design choices, not a mandatory sequence for every granulator. Define each operation phase around executable instructions and an explicit transition condition. The illustrative structure below uses named recipe variables, not typical RPM bands.

For each phase, specify setpoint units in RPM, the permitted process operating window and the applicable timer. Define a ramp by its starting condition, target and duration in seconds, or by its rate in RPM per second, where supported by the equipment. State whether the timer starts on phase entry, tool enablement or attainment of the target speed; these create different exposure histories.

Record chopper enabled state separately from its speed setpoint. A profile can specify continuous operation across selected phases, phase-limited operation or an intentionally disabled state. None is universally preferable; selection depends on the equipment and formulation.

Keep the process operating window distinct from the drive’s mechanical capability and the alarm threshold: available speed is not an approved process setting, and an alarm is not a recipe allowance. Identify who may authorize adjustments, within which limits, and how changes are recorded. For boundaries between speed instructions and other controls, use the wet granulation endpoint.

Neither impeller speed nor chopper speed is automatically a critical process parameter. In practical process development, classification considers the demonstrated effect of parameter variability on relevant critical quality attributes within the studied operating context. Identifying a setting and ranking its potential risk are preliminary steps, not proof of criticality.

For drug-product development in the EU, ICH Q8(R2), section 2.2, Critical Quality Attributes describes particle-size distribution and bulk density among intermediate properties that can affect drug-product CQAs. Use the product-specific examples below to select meaningful responses rather than treating every granule measurement as a finished-product critical quality attribute.

For drug-product development in the EU, ICH Q8(R2), Appendix 2, illustrative example A describes experimental approaches for evaluating higher-ranked variables. This is development guidance, not a mandatory experimental recipe.

A practical evidence matrix separates hypotheses from findings:

Evaluate interactions explicitly: an apparently insensitive speed may matter at another binder condition or companion-speed setting. A flat response across a narrow operating window supports only a bounded conclusion; it does not establish that the parameter is universally noncritical. Where evidence remains inconclusive, retain that uncertainty and define further study rather than converting a risk score into a final classification.

Connect each execution record to its operation phase. The following is a practical implementation checklist, not a universal legal list; adapt responsibilities and checks to the equipment, product and site procedures.

Before starting

• Confirm vessel, impeller and chopper identities, installed configuration and configuration revision against the intended setup.
• Confirm material identities, charged quantities and the fill basis used by the recipe; resolve differences before processing.
• Confirm the recipe revision and phase sequence, including permitted operator adjustments and transition criteria.
• Check speed-feedback readiness and the relevant instrument status, including binder-delivery measurement and any load or moisture instruments used for decisions.

During processing

Commonly useful evidence includes commanded and measured speeds, phase transitions, actual binder delivery, load response, operator observations and sample timing. Align these in the batch execution history so an observation can be associated with the operating phase rather than merely the batch date.

For each transition, record the applicable recipe criterion, supporting observations and who made or confirmed the decision. Keep a speed change, phase completion and material acceptance distinct, as shown in the comparison table. Operators should record adjustments with their time, reason and authorization where applicable, retaining the original command history.

Sampling and review

The sampling plan should distinguish wet material, dried granules and subsequently milled material. Attach the analytical method and reporting basis to each result, alongside collection time, location and preparation details. This makes each in-process check interpretable in its material context.

The designated reviewer should compare actual-versus-commanded behavior and escalate unexplained observations to the responsible process or quality personnel. Document their assessment and disposition under site procedures. Profile completion alone does not authorize release; that remains a separate decision by authorized personnel.

Readiness checks → Phase execution and observations → Transition assessment → Sample interpretation → Human review and disposition

A manufacturing evidence model commonly connects equipment configuration, recipe revision, batch phase, time-series observations, material samples and review events. Use production context tagging to associate observations with the relevant batch and phase, rather than relying on timestamp proximity alone.

For each integration, designate system-of-record ownership and document tag meaning, units, time basis and revision links. This illustrative map supports MES–historian integration; ownership depends on the installed architecture.

Distinguish a commanded value, feedback measured at a known location, a drive-derived estimate and a manually entered observation. Preserve these labels when joining datasets: a drive estimate is not automatically measured impeller-shaft speed, and an operator entry is not instrument feedback.

Retain exception fields: source timestamp, receipt timestamp, signal quality, missing-data interval, reason for manual entry, original value reference and associated deviation. Review unit conversions and clock alignment explicitly; clock drift monitoring supports that review, not an assumption that integrations preserve timing automatically.

Equipment protection and machinery safety functions remain outside this glossary-level production-data design.

Illustrative data model

Batch → equipment configuration and recipe revision → phase → observations and samples → results → review event, with reviewer, decision and linked exception references.

For this symbolic granulation scale-up case, assume a rotating impeller with swept diameter D in metres and rotational speed n in RPM. D is the diameter traced by the relevant impeller tip, not an arbitrary vessel dimension. This is a geometrical calculation, not a prediction of granule quality.

The tip travels πD metres per revolution. Converting minutes to seconds explicitly: v = (πD m/rev) × (n rev/min) × (1 min/60 s) = πDn/60 m/s. Revolutions and minutes cancel, leaving metres per second.

Let D_large = k × D_small, where k is positive and dimensionless. For equal tip speed, π(kD_small)n_large/60 = πD_small n_small/60. Cancelling the common terms gives n_large = n_small/k. Substitution confirms v_large = π(kD_small)(n_small/k)/60 = v_small. Conversely, at unchanged RPM, v_large = π(kD_small)n_small/60 = k × v_small. Both velocity expressions retain units of m/s because k has no units.

Equal RPM does not establish equivalent process performance. Equal tip speed establishes only the selected kinematic match; it does not by itself establish dynamic similarity or equivalent granulation results. For the mechanical interactions behind that limitation, see the discussion above.

Assess the transfer, not just the calculation

• Compare bowl and tool geometry, working fill and chopper configuration.
• Evaluate binder distribution and material properties under the proposed conditions.
• Compare speed-profile duration and load behavior phase by phase.
• Assess sampled quality responses against the intended product performance.

The chopper needs its own geometric and process assessment: its swept diameter, blade arrangement, position and contact with moving material need not scale with the impeller. It therefore cannot inherit the impeller’s calculated speed ratio without justification.

Tip speed offers a simple geometric comparison. Equipment-normalized load or energy observations can instead help compare mechanical demand and exposure, provided the normalization basis, sensor boundaries and phase durations are explicit. Neither approach is universally sufficient. A practical change-control assessment connects the chosen similarity assumptions to trial observations and sampled quality, rather than treating a matched descriptor as acceptance evidence on its own.

Treat this as a hypothetical engineering comparison, not a product formula. Let M kg be dry starting material, L kg the delivered solution, and w its binder-solids mass fraction. Assume a solution containing only solvent and binder, no delivery loss and no evaporation during the accounting interval. Added binder solids are w × L kg; added solvent is L − w × L kg. Binder-solids addition per dry starting material is w × L / M kg/kg. The denominator excludes added binder solids.

Compare declared concentrations w_A and w_B, with w_B > w_A, using identical M, L, solution-addition schedules and impeller/chopper speed profiles:

The higher-concentration case adds (w_B − w_A) × L kg more binder and the same mass less solvent. Confirm delivered mass through gravimetric dispensing. To evaluate the change, compare measured moisture, granule-size distribution, fines, oversized agglomerates and relevant downstream responses. Identical RPM histories do not answer whether the changed formulation produces acceptable material.

Even matching binder and solvent additions does not establish a moisture endpoint. Account for starting moisture, actual losses and the measurement basis: wet-basis versus dry-basis reporting, and water-specific measurement versus broader volatile loss. A calculated solvent addition is not a measured moisture result, particularly when the solvent is not water.

Hypothetical application questions

• Oral-solid drug development: How do granule size and strength relate to tablet compression, dosage-unit uniformity and dissolution?
• Supplements: Does incoming botanical variability alter liquid demand or granule formation at the same additions and speeds?
• Food agglomeration: Does the material disperse as intended while resisting dust generation and handling damage?
• Chemical or device-material processing: Do granules meet process-specific downstream needs, such as dissolution, mould filling or consolidation?

For equipment changes, use the granulation scale-up assessment alongside these material-response questions.

Applicability starts with the product and market, not the granulator model. Keep the legal basis separate from development guidance and the engineering rationale for a speed profile.

For US drug products within the scope of 21 CFR Part 211, 21 CFR 211.110(b) requires valid in-process specifications for the covered characteristics to be consistent with drug-product final specifications. For those US drug products, the same provision requires those specifications to be derived from previous acceptable process-average and process-variability estimates where possible, with suitable statistical procedures applied where appropriate.

For US oral-solid drug manufacturing, FDA’s historical oral-solid-dosage inspection guide identifies control of solvent-addition rate and amount as important during wet granulation.

For supplements, food, devices and chemicals, review applicability against current rules for the specific product and market rather than importing the US drug framework. Carry that applicability decision into the change-control review, identifying which controls have a legal basis and which rest on development evidence or engineering practice.

In engineering troubleshooting, these observations are investigation prompts, not unique signatures of incorrect speed. Examine material properties, binder distribution, equipment configuration and measurement comparability before assigning causation. The competing explanations below are possibilities to test, not diagnoses.

Documentation weaknesses need targeted repairs:

• Single recipe RPM: replace it with phase-specific settings, transitions and durations.
• Missing chopper state: record enabled/disabled status alongside its speed.
• Unexplained manual override: preserve the original event, reason, timing and decision owner.
• Mismatched sample identifiers: reconcile labels through sample login and handoff, preserving corrections.
• Results from different sampling stages: identify each stage and compare like with like before attributing differences to speed.

For evidence reconstruction, use the measurement provenance and integration records covered above, supported by historian integration practices.

During liquid addition, impeller speed feedback becomes unavailable. Treat this as lost observation, not proof of a mechanical stop. Distinguishing the two calls for time-aligned drive status, trip records and, where available, independent rotation evidence. A commanded speed alone does not establish actual RPM. Use the failure-mode table for diagnostic questions.

For this calculation, assume target delivered solution mass L_target and independently established delivered mass L_delivered, both in kg. Only after delivery has stopped, line delivery is accounted for and the measurement remains valid, calculate remaining mass:

L_remaining = L_target − L_delivered, in kg.

This in-process reconciliation neither reconstructs unobserved RPM nor establishes permission to add the balance.

1. Contain the interruption under equipment-specific instructions; preserve available speed, dosing, alarm and operator records.
2. Assess material state and elapsed exposure, including possible continued wetting or mixing during the observation gap.
3. Obtain an authorized human decision on restart instructions or alternative disposition; do not default to completing the original profile.
4. Link the interruption, assessment, decision and subsequent observations for exception-based review. Keep planned operation, observed execution and approved recovery instructions distinct; retain the missing-feedback interval rather than backfilling it with setpoints.

Use these practical acceptance prompts before routine use or a change; review applicability to the product, jurisdiction and site procedures.

• Equipment: configuration record identifies installed tools, geometry and working fill.
• Phase profile: recipe revision defines speeds, ramps, durations and transition conditions.
• Signal identity: tag mapping distinguishes commanded setpoints from measured speed feedback.
• Binder accounting: delivery record reconciles prepared, delivered, retained and lost quantities.
• Endpoints and samples: sampling plan and analytical method define locations, timing, tests and acceptance criteria.
• Quality impact: study conclusion supports each speed’s criticality classification.
• Transfer: transfer rationale states similarity assumptions and remaining uncertainties.
• Integration: historian integration test record demonstrates timestamp alignment, units and gap handling.
• Exceptions: recovery procedure names stop, assessment, restart and disposition authorities.

Practical change-review triggers include tool replacement, geometry or batch-fill changes, binder formulation changes, instrument replacement and revised phase timing—not an exhaustive statutory list. Keep restart and material disposition with authorized humans, not software.
