Pharmaceutical Water Systems: Grades, Design and Monitoring

Pharmaceutical water systems are the connected equipment, distribution infrastructure and operating controls used to generate, store, deliver and monitor water of a defined quality for pharmaceutical manufacturing.

As an engineering boundary, the system extends from feed-water entry through pretreatment and generation, storage and distribution to the actual point of use. It includes associated sampling locations, instruments and operating records. Point-of-use connections, including hoses where used, belong in that boundary rather than disappearing from consideration at the loop outlet.

Bulk-water grade, packaged presentation and sterility status are separate attributes: naming a utility does not establish a finished-product specification. In practical system documentation, equipment identifiers and sampling-location identifiers connect operating records to physical locations, supporting data integrity without confusing the utility with the product it serves.

Purified Water (PW) and Water for Injection (WFI) are grade names, not treatment-equipment descriptions. Functionally, PW is commonly considered for formulation and process uses; WFI is considered for pyrogen-sensitive applications. These are functional summaries, not monograph specifications or numerical acceptance criteria. Grade selection starts with the water’s contact with the product, not the generator’s label.

For US parenteral drug manufacture where pyrogens are a concern, the FDA guide’s System Design discussion expects Water for Injection to be used. For US drug manufacture, that System Design discussion describes purified water use in most inhalation and ophthalmic formulations, extending the discussion to topical and oral products. These are guidance examples, not blanket permissions for every formulation.

A practical selection matrix records the proposed grade alongside its assumptions. The entries below illustrate assessment questions, not predetermined approvals.

In common risk-assessment practice, the rationale distinguishes microbial contamination from endotoxin contamination rather than treating either as a proxy for the other. It also identifies the administration route, process stage and whether water remains in the formulation or can carry over after rinsing. Any credit for downstream processing is tied to demonstrated capability, not merely the presence of a later step.

Carry this rationale into design qualification and product-specific risk-based validation. Keep HPW terminology and hemodialysis applications outside the main PW/WFI comparison: their intended application and terminology need separate assessment. A familiar abbreviation alone is not a sufficient basis for selecting a grade.

Start an applicability review with the jurisdiction, product and water-use operation—not the equipment catalogue. Separate legal obligations, guidance expectations and site engineering choices in the control strategy so that each decision has an identifiable basis.

For US finished pharmaceuticals under 21 CFR Part 211, 21 CFR 211.160(b) requires laboratory controls to include scientifically sound and appropriate specifications, standards, sampling plans and test procedures. The broader 21 CFR 211 overview provides context for this laboratory-control duty.

For US finished pharmaceuticals, 21 CFR 211.160(a) requires laboratory-control specifications, sampling plans, test procedures and changes to them to be drafted by the appropriate organizational unit and reviewed and approved by the quality control unit.

For US pharmaceutical-water inspections, the FDA high-purity water inspection guide is nonbinding guidance rather than a regulation.

For EU pharmaceutical use, check the current EMA Guideline on the quality of water for pharmaceutical use for the scope applicable to the intended operation and proposed water grade.

As a practical review method, record whether each control implements a legal duty, responds to guidance or reflects a site-specific engineering rationale. This makes the reasoning easier to revisit when the application changes. This pharmaceutical scope does not establish water requirements for food, dietary supplements, medical devices or dialysis operations; assess those applications separately rather than transferring pharmaceutical conclusions unchanged.

A membrane train is a proposed generation method; Water for Injection (WFI) is the intended water grade. In engineering assessment, neither a skid label nor a treatment-stage list demonstrates performance at downstream use points. Evaluate the connected system, not just its generator.

Generation stages do different jobs. Pretreatment protects the main purification step; distillation separates water by evaporation and condensation; reverse osmosis forces water through a semi-permeable membrane that rejects most dissolved and particulate contaminants; ultrafiltration removes finer particles and many organisms and endotoxin by size. FDA's inspection guide, an older document whose pharmacopoeial references should be checked against the current compendium, records that "Pretreatment of feedwater is recommended by most manufacturers of distillation equipment and is definitely required for RO units" and that ultrafiltration and RO systems are common in bulk drug substance water systems, "particularly for parenteral grade substances".

• Feed water and pretreatment: assess variability, treatment capacity and how upstream disturbances could reach the membranes.
• Membrane stages and downstream polishing: identify each barrier’s purpose, failure indications and consequences if contamination passes it.
• Sanitisation access: examine whether the proposed sequence can reach treatment stages and connecting pipework, including difficult-to-access components.
• Operational resilience: compare controllability, maintenance access, monitoring coverage, utility dependencies and recovery after interruption. Ask what evidence would support restarting supply.

These are common engineering considerations, not proof of regulatory equivalence between generation options. Include monitoring-record reliability in the data integrity risk assessment, so comparisons consider whether barrier failures would remain detectable and traceable during operation.

For EU pharmaceutical use, check the current EMA water-quality guideline for the scope relevant to the proposed WFI generation route. Keep jurisdictional acceptance separate from this engineering assessment; use the regulatory map above to frame that review.

A distribution review follows the water beyond generation: through the storage vessel, circulation supply, branches, use points and return to storage. Include the actual hoses, adapters and fittings used during production, not just the permanent pipework. A satisfactory generator outlet result does not establish conditions throughout that path.

Biofilm is the reason loop geometry matters. FDA's Guide to Inspections of High Purity Water Systems explains that organisms exist "either as free floating in the water or attached to the walls of the pipes and tanks. When they are attached to the walls they are known as biofilm, which continuously slough off organisms." The same guide warns that, in colder systems, "any drops or unused portion of any length of piping has the potential for the formation of a biofilm and should be eliminated if possible or have special sanitizing procedures." A single clean sample therefore says little about a wall-attached population that releases organisms intermittently, which is why trend review and point-of-use sampling carry more weight than any one result.

For US drug-manufacturing water systems, the FDA guide’s System Design discussion identifies water in constant motion as less liable to have high contaminant levels. This is guidance, not a prescribed distribution geometry.

Common engineering review considerations, addressed through design qualification, include:

• Circulation and demand: examine how production draw-off changes supply and return conditions, including simultaneous use and periods of low demand. A flowing main loop may leave a closed branch stagnant.
• Branches and drainage: assess low-use outlets, trapped volumes, valve orientation and drainability. Turbulent-flow objectives and dead-leg assessments depend on geometry, operating conditions and intended use; avoid treating a single velocity or branch-length ratio as universally sufficient.
• Storage interfaces: examine tank connections, vent arrangements and their exposure to contamination, alongside access for inspection and sanitisation. Consider whether connected areas receive the intended sanitising conditions.
• Use-point access: locate accessible sampling points that support assessment of delivered water. Identify where sampling upstream of a production hose would leave that hose and its fittings outside the assessment.

Local vulnerabilities deserve separate attention: cooling arrangements introduce different operating states; heat-exchanger boundaries introduce potential leakage paths; flexible hoses introduce handling and storage interfaces. Poorly accessible connections can complicate inspection and sanitisation. None of these components is inherently unacceptable: assess its configuration, use, maintenance and exposure to the sanitising process.

Useful design-review evidence includes a current schematic, component identification, defined operating modes, sampling-point locations and an explanation of how each relevant area is sanitised. Use requirements traceability to connect identified vulnerabilities with design decisions and planned checks, rather than relying on a drawing alone.

In common utility-control practice, sanitisation is a defined operating sequence, separate from routine water production. The site sanitation procedure typically identifies the equipment boundary, valve positions, isolated branches, hoses and use-point assemblies included in the cycle, plus components treated separately. Normal circulation alone is not evidence that every intended surface received treatment.

• Thermal methods: assess temperature coverage and exposure across the defined circuit, including difficult-to-heat locations, rather than relying on one convenient sensor. Consider the heat tolerance of membranes, seals and hoses, heating and cooling constraints, and restrictions on water use during the sequence.
• Chemical methods: assess sanitant distribution, concentration and contact time alongside compatibility with wetted materials. Consider dosing, safe handling, isolation and rinsing constraints. The site-defined recovery sequence typically specifies how residual sanitant is removed, where residual checks are taken and how results support readiness for use.

Typical cycle records connect the procedure revision and actual system configuration to time-stamped operating measurements, alarms, interruptions and the completion assessment. A controller's completed status is only one input: the reviewer compares the recorded coverage and recovery evidence with the procedure's system-specific criteria. Record any excluded assembly and its separate treatment status so that the completion assessment does not imply broader coverage than demonstrated.

For an interrupted cycle, retain the original record, assess which areas received adequate treatment, determine corrective work or repeat treatment, and document the authorised person's return-to-service decision. Keep utility return to service and any affected-product disposition as separate recorded decisions; restoring water-system operation does not itself resolve the status of product made before the interruption.

For US drug-manufacturing water systems, the FDA inspection guide’s conductivity discussion distinguishes monitoring chemical quality from assessing microbiological quality. In routine monitoring practice, complementary measurements answer different questions:

• Online conductivity trends indicate changes in ionic contamination; they do not establish microbial control.
• Online total organic carbon (TOC) trends indicate changes in organic content, not organism identity or endotoxin concentration.
• Laboratory bioburden monitoring assesses microorganisms recovered under the selected test conditions; endotoxin testing addresses a separate contamination attribute.
• Operating-state records place results alongside circulation, temperature, water demand, sanitisation and maintenance, helping reviewers distinguish persistent changes from transient events.

For US pharmaceutical WFI systems, the FDA inspection guide’s WFI discussion recommends monitoring both endotoxins and microorganisms. For US pharmaceutical purified-water systems, the guide’s Purified Water Systems discussion cautions that contamination is not uniformly distributed and an individual sample may not represent its type and level.

Define what each sample represents

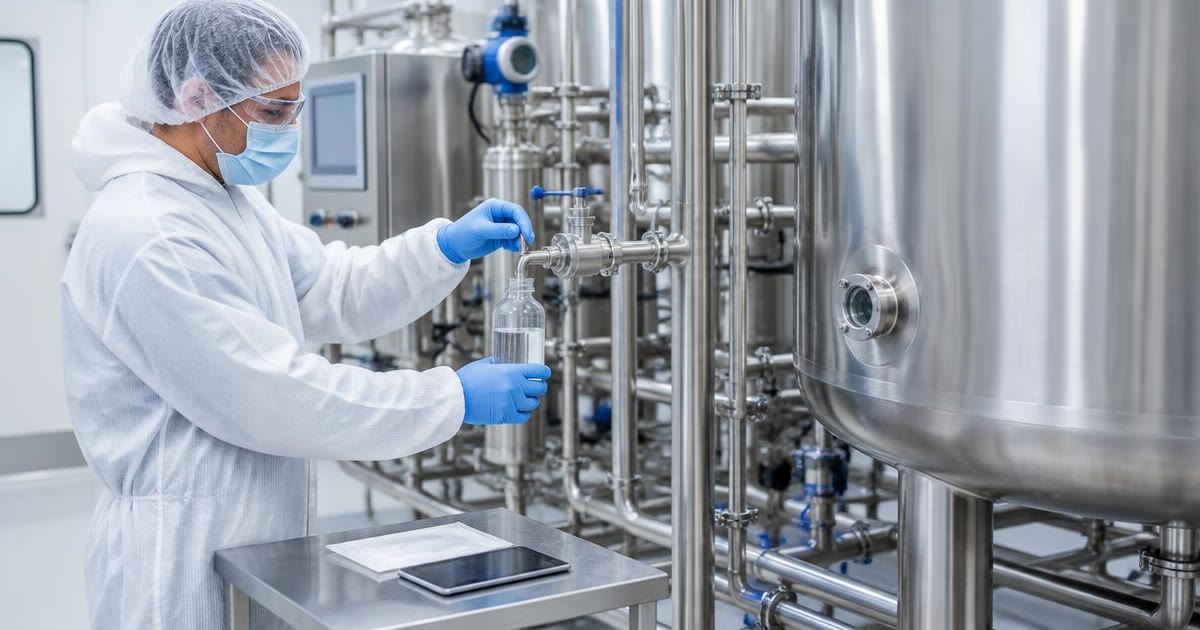

A practical sampling plan commonly records location, operating state, collection method, handling, laboratory method and intended interpretation. Specify the outlet and any hose, flushing or disinfection steps; distinguish normal production draws from startup, idle-period or post-maintenance sampling. Define containers, transport conditions and holding arrangements appropriate to the test. Keep these details with the result in the LIMS or associated sampling record.

An investigative sample collected directly from equipment may help locate contamination. A production-use sample instead aims to represent the water actually delivered through the normal use arrangement. Label the purpose explicitly: results from different collection conditions are not automatically interchangeable.

Site-defined alert and action responses commonly distinguish early trend review from formal investigation and assessment of affected water use. Justify criteria for the system and application rather than importing universal microbial limits. Define when microbial identification informs assessment, including recurring recoveries or changed organism patterns. Review trends by location, operating state and method, not just pooled counts. A repeat result can inform an investigation without erasing the original signal; responsible personnel evaluate the combined evidence before deciding disposition.

In common pharmaceutical engineering practice, IQ, OQ and PQ organise installation evidence, operating challenges and performance evidence. These labels structure the qualification argument; they do not establish a universal water-system sampling schedule. The practical question is whether the installed system performs its intended function under defined conditions, with evidence that supports routine operation.

• Installation evidence typically connects the approved design to installed components, current drawings, instrument identities and relevant construction records. An installation qualification review commonly reconciles discrepancies so subsequent tests refer to the actual configuration rather than an obsolete design.
• Operating challenges typically examine control behaviour, alarms, circulation modes, sanitisation sequences and credible interruption or failure conditions. A practical protocol identifies the expected response, observed response and recovery evidence, rather than recording only that equipment ran.
• Performance assessment typically examines defined use patterns, representative sampling and feed-water variability. Its conclusion connects the conditions assessed to the proposed routine monitoring programme, identifying any conditions still needing assessment and who will review that evidence.

Qualification conclusions commonly remain part of asset lifecycle management. Maintenance, changes and operating excursions prompt an assessment of whether earlier conclusions still apply. A useful assessment identifies affected functions, supporting evidence and any targeted testing needed. Human review then determines whether continued operation or return to service is justified; repeating every original test is not the default operational framework.

Operational lifecycle: evidence handoffs

Intended use → approved design basis → installation evidence → operating-challenge results → performance conclusions → reviewed routine monitoring plan → routine operation. Maintenance, change or excursion → impact assessment → targeted checks and recovery evidence → human return-to-service decision → routine operation, with revised procedures or monitoring where appropriate.

A practical water-system evidence model connects system identity, sampling-point identity, control-plan version, observation time, result, unit, method and operating state. These proposed relationships support reconstruction of the conditions behind a result, rather than presenting an isolated value. Production context tagging connects observations to the relevant equipment and manufacturing activity.

Keep sample collection time, analysis time and import time distinct: receipt by another system does not establish when the water was sampled. Record time zones and known clock discrepancies. Preserve original values alongside documented corrections, with the reason, author and correction time; retain any unit conversion separately from the reported result.

Define interfaces as data handoffs. A process historian passes time-stamped operating conditions; a laboratory system passes sample identities, methods, results and review status. Maintenance records contribute intervention intervals and equipment status. Quality-event systems receive linked observations and investigation references. Historian integration and laboratory integration therefore depend on shared identifiers and explicit acknowledgment of receipt, not merely successful transmission.

Exception recovery should identify missing observations, delayed uploads, duplicate imports, inconsistent units and unmatched point identifiers. Reconciliation retains the original evidence and records the resolution: what was matched, converted, excluded from aggregation or left unresolved, by whom and why. Avoid silently filling gaps or assigning an ambiguous result to the nearest point.

Link adverse observations to the potentially affected operating interval and manufacturing records, marking uncertain boundaries and associations until reviewed. Human reviewers assess significance, approve operational decisions and determine product disposition. Data transfer itself makes none of those decisions.

Illustrative, vendor-neutral data model—not an application feature list: System → sampling point → observation + control-plan version Observation → collection/analysis/import times + result/unit/method + operating state Observation → corrections/exceptions → reconciliation Observation → potential operating interval → manufacturing records Linked evidence → human review → documented decision

Cold-processed oral liquid: rising microbial result

• Assumption: A cold-processed oral-liquid operation receives a rising use-point microbial result while its online chemical trend remains stable.
• Observation: Record the microbial result in CFU/mL against the site's approved criteria, without assigning a universal limit. Apply the monitoring distinction above: chemical stability does not resolve the microbial signal.
• Investigation: Examine collection technique, outlet preparation, sample transport and organism information. Trace the relevant water-use interval through the batch execution history, identifying potentially affected batches and subsequent processing.
• Decision: Base containment, further sampling and product disposition on the approved criteria and investigation findings, including organism relevance; do not dismiss the result solely because chemistry remained stable.

Thermal sanitisation: interrupted heating

• Assumption: The retained cycle record shows loss of heating before the site's defined completion conditions.
• Observation: Interpret temperature in degrees Celsius against elapsed time in minutes, rather than relying on the peak temperature.
• Investigation: Check branch coverage, sensor locations, valve states and interruption handling. Establish which portions received the intended exposure and whether the record supports that conclusion within the deviation investigation.
• Decision: Keep return to service conditional on the approved recovery procedure and findings. An authorised reviewer assesses the cycle evidence, any repeated treatment and specified checks before approving resumed use.

Laboratory transfer: delayed import

• Assumption: A sample was collected before an interface outage but imported after restoration.
• Observation: Import time describes data arrival, not water collection.
• Investigation: Reconcile collection, analysis and import timestamps using the documented time zone. Preserve sample identity, check for duplicate records after replay and examine MES–LIMS integration exceptions. Connect the result to its actual production-use interval.
• Decision: Accept the recovered record only when reconciliation supports identity and completeness under approved criteria; route unresolved discrepancies and any product-impact findings to authorised review.

Use this practice-based troubleshooting table to frame investigations, not diagnose causes. A location-specific result or trend change is a starting point: no listed signal proves the associated mechanism. Controls depend on the findings.

Recurrence after apparently successful corrective work commonly warrants reassessing the underlying system condition and investigation scope, rather than repeating the same intervention. Compare pre- and post-work evidence, reconsider connected locations, and track effectiveness through a corrective action request.

Use this practical checklist for implementation, periodic review or a proposed system change—not as a legal or certification checklist.

• Are intended uses, grade rationale, applicable jurisdictions and product scope explicit?
• Does the current system drawing match installed equipment and use points?
• Have generation and distribution been assessed together?
• Is sanitisation coverage demonstrated, with return-to-service criteria documented?
• Does the monitoring-plan rationale explain locations, timing, methods and interpretation?
• Do qualification conclusions support the proposed operating conditions?
• Are unresolved exceptions visible, with interim controls and accountable owners?
• Can the applicable control-plan version be connected to results, maintenance activity and changes?
• Can reviewers identify the operating interval, potentially affected manufacturing activity through batch records, and the basis for the recorded decision?

Record named owners for operational review, technical investigation and quality disposition, preserving the human-review boundary described above.
