Cleaning Validation: Residue Limits, Sampling and Evidence

Cleaning Validation is the documented demonstration that a defined cleaning process consistently reduces specified equipment residues to justified acceptance criteria under defined conditions. Also called cleaning process validation or equipment cleaning validation, it connects a repeatable cleaning method to evidence that supports its intended use.

A meaningful validation conclusion depends on a connected evidence chain:

• Defined equipment and products: identify what was cleaned and which residues the study addresses.
• A controlled cleaning procedure: describe the method and operating conditions, linked to the applicable cleaning recipe.
• Justified acceptance criteria: explain what counts as acceptable and why those criteria fit the intended use.
• Representative execution data: connect cleaning records, sampling locations and analytical results to the conditions studied.
• An approved conclusion: state what the combined evidence demonstrates, including limitations and unresolved questions.

The conclusion applies to the conditions actually represented by the study. A laboratory result without its equipment, sampling and execution context cannot establish that scope. For example, a residue result from one accessible surface does not, by itself, demonstrate cleaning effectiveness throughout an equipment train. The conclusion must connect the observations to the claimed coverage rather than treat a passing result as a stand-alone approval.

The comparison section below distinguishes validation from verification, sanitation and sterilization validation.

Cleaning-validation decisions need a product-and-market basis before a technical protocol. The following map separates a binding US equipment obligation from inspection guidance and EU GMP interpretive guidance. These instruments do not establish one cleaning-validation rule for every regulated manufacturer.

21 CFR 211.67(b) adds the written-procedure duty: written procedures shall be established and followed for cleaning and maintenance of equipment, including utensils, used in the manufacture, processing, packing or holding of a drug product. They shall include, but are not necessarily limited to, assignment of responsibility for cleaning and maintaining equipment; maintenance and cleaning schedules, including sanitizing schedules where appropriate; a description in sufficient detail of the methods, equipment and materials used, and of disassembly and reassembly as necessary to assure proper cleaning and maintenance; removal or obliteration of previous batch identification; protection of clean equipment from contamination prior to use; and inspection of equipment for cleanliness immediately before use.

For US drug-product equipment, 21 CFR 211.67(a) requires equipment and utensils to be cleaned and maintained at appropriate intervals, with sanitizing and/or sterilizing as appropriate for the nature of the drug. Treat that as the binding operational obligation—not as a prescribed run count, sampling method or carryover formula. The broader 21 CFR 211 context helps place this equipment provision within drug-product manufacturing.

Separately, 21 CFR 211.67(c) requires records of maintenance, cleaning, sanitizing and inspection. A cleaning activity and its record therefore address distinct parts of the provision; the recordkeeping obligation should not disappear behind a validation report.

FDA’s Guide to Inspections: Validation of Cleaning Processes (titled “7/93” on FDA’s site) is not itself a binding regulation. Its introductory note identifies it as reference material for investigators and other FDA personnel and states that it does not bind FDA. Its scope statement limits coverage to equipment cleaning for chemical residues.

Annex 15’s stated purpose is to guide interpretation of GMP principles and guidelines for medicinal products. Within that framework, section 10.1 says cleaning validation should confirm the effectiveness of cleaning procedures for all product-contact equipment. The Annex 15 qualification and validation framework provides the wider context; it is not a universal manufacturing rule.

Check the current applicable framework for the particular product and market. As a practical mapping step, document the product category, destination markets and governing instruments before defining the equipment and residue boundary. Borrowing a pharmaceutical study technique does not establish its legal applicability to another sector.

As study-design practice, define the equipment train by asset and product-contact surface, including removable parts, transfer connections and relevant utensils. List exclusions with their rationale; “mixer” alone does not identify whether its discharge valve, hoses or scoops are covered.

Identify previous-product residues and cleaning-agent residues separately. Record the products, cleaning procedure and campaign conditions represented, including campaign length and time before cleaning. Equipment coverage does not establish coverage of every product or operating condition.

For bulk pharmaceutical processes, FDA’s residual-limit discussion cautions that selecting only the principal reactant may miss chemical variations that are harder to remove. Use this distinction when defining residue identity, then connect the boundary to product- and industry-specific risk tailoring, rather than assuming one residue represents the entire process.

Organize the study around decisions and accountable reviewers. The workflow below is a practical planning sequence, not a separate mandatory lifecycle. Inventory equipment, products and cleaning procedures; define the study boundary before deciding which equipment or conditions can represent others.

Inventory and scope → risk-based grouping → procedure development → criteria and sampling design → protocol approval → execution and evaluation → conclusion → ongoing change review.

For equipment families, EU GMP guidance in Annex 15 section 10.1 expects justification of the specific equipment selected when similar types are grouped. Similar appearance is not a sufficient engineering rationale: compare product-contact geometry, cleaning mechanism and access. Record differences that could make one vessel, transfer line or removable assembly harder to clean than its proposed representative.

Develop a reproducible cleaning procedure before formal execution. Specify actionable steps and operating conditions, then establish criteria, sampling locations and evaluation rules in the protocol. Obtain approval before starting; after execution, reconcile actual conditions, results and deviations against the approved design before drawing a conclusion.

Annex 15 section 10.5 calls for assessing factors that influence cleaning effectiveness and using identified worst-case situations as the study basis. As practical challenge candidates, consider campaign duration, difficult-to-access locations, operator technique and residue behavior. Select relevant challenges with reasons; this is not a universal checklist of prescribed tests.

Include time where it can affect performance: dirty hold time is the interval between manufacture and cleaning; clean hold time is the interval between cleaning and subsequent use. A hold-time study can help examine relevant intervals. For automated cleaning, Annex 15 section 10.4 says to validate the specified normal operating range of utilities and equipment. Automation does not remove those variables.

Justify the number and sequence of executions through expected variability, equipment coverage and the strength of the resulting evidence. Explain what each execution adds. Consecutive acceptable runs cannot compensate for unrepresentative challenges, and three runs is not a universal design rule. Prospectively define how deviations and interruptions affect sequence validity: who assesses the impact, what evidence remains usable, and when replacement or additional executions need approval.

Conclude only for the conditions and equipment actually supported. Review a new product, altered cleaning chemistry, revised equipment geometry or changed operating range against the original assumptions before extending that conclusion. Carry those assumptions into the next section’s residue-limit and acceptance-criteria decisions, including the basis for maximum allowable carryover.

For pharmaceutical cleaning validation, EU GMP guidance in Annex 15 section 10.6 calls for product-residue carryover limits based on toxicological evaluation, with the justification documented in a risk assessment containing supporting references. It also calls for cleaning-agent removal limits and acceptance criteria that consider cumulative contributions from multiple items in the equipment train.

From exposure to allowable mass

In practical pharmaceutical usage, HBEL means health-based exposure limit; MACO means maximum allowable carryover. The HBEL exposure basis needs qualified toxicological interpretation before conversion into an equipment residue allowance. Where the exposure and next-product assumptions support this mass-balance approach:

MACO (micrograms) = applicable HBEL (micrograms/day) × minimum next-product batch mass (kg) ÷ maximum daily next-product dose mass (kg/day).

Batch mass and dose mass must describe the same product basis: do not combine total formulation mass with an active-only daily dose. The batch-to-dose ratio has units of days, leaving the result in micrograms. This conditional MACO calculation is industry practice, not a formula prescribed by Annex 15. Record the selected next product, batch size, daily dose and toxicological assumptions so reviewers can reconstruct the calculation.

Allocate before comparing results

Translating a train-level mass into surface or rinse criteria requires an explicit allocation model. Document each equipment item's allowance and how the combined allowances remain within the train total. Separate component passes do not establish an acceptable total if each component was allowed the entire train budget.

For uniform surface allocation, divide the allocated mass by the corresponding product-contact area. Uniform allocation is an assumption, not evidence that residue is uniformly distributed. A rinse criterion likewise needs a defined represented scope and rinse volume. Carry these derived criteria into the sampling and analytical methods section to assess sampling recovery and analytical capability before interpreting results.

The FDA guide's acceptance-specification discussion explicitly declines to set acceptance specifications or validation methods. It does not provide a universal numerical threshold for cleaning validation.

Choose sampling methods according to the residue, equipment access and decision needed. The comparison below describes practical method design, not a regulatory prescription to use swabs or rinses.

For EU GMP cleaning validation, Annex 15 guidance treats visual cleanliness as important but generally insufficient as the sole validation criterion in section 10.2.

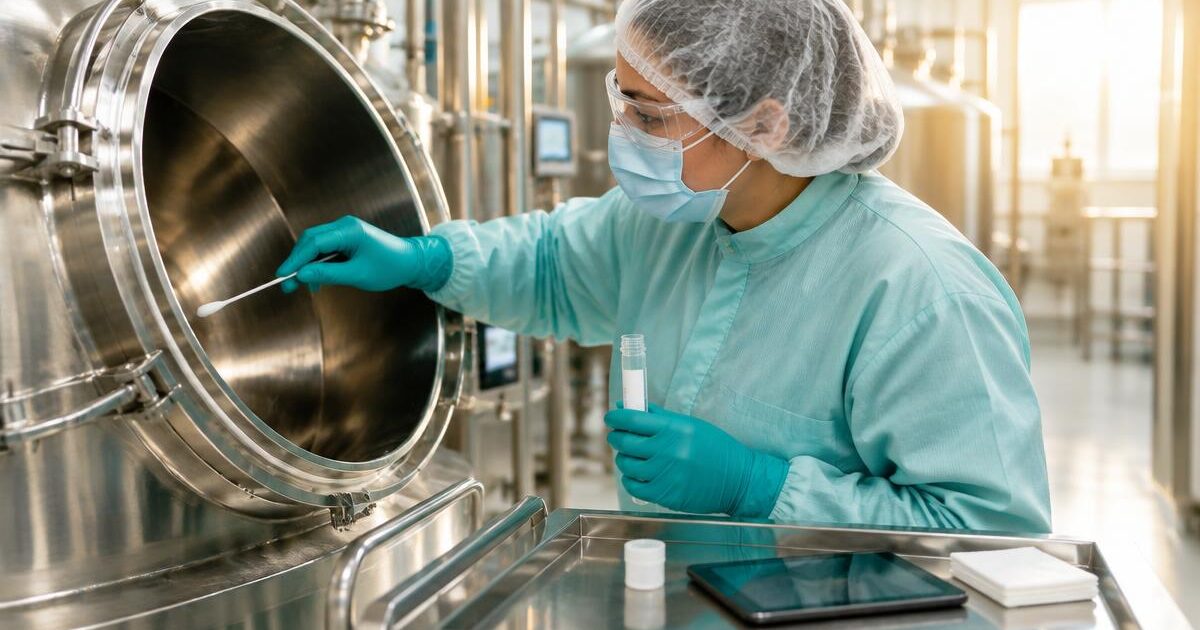

Building on worst-case study design above, justify sample locations by residue retention and cleaning difficulty. Define the swab area, surface material, collection technique and extraction volume. Specify sample containers, storage conditions, holding times, transport and blanks that reveal contamination from collection materials or solvents. Maintain sample identity through sample login and handoff, linking each specimen to its equipment location and cleaning run. A rinse result depends on demonstrated contact with the relevant surfaces and recovery into the sampled liquid; a large rinse volume alone does not establish coverage.

Distinguish collection recovery—transfer from the surface to the sampling medium—from extraction recovery—transfer from that medium into the analytical extract. Overall method recovery covers the complete tested pathway. Design spike-recovery studies to identify which stages they assess. Evaluate variability across relevant residues, surfaces and sampling conditions rather than applying one recovery value universally. Document whether reported results already include recovery correction; correcting them again would distort the comparison.

The detection limit concerns detecting residue; the quantitation limit concerns measuring it with established precision and accuracy. Nondetect does not mean zero residue. Evaluate method capability after relevant dilution, extraction-volume, recovery and sampled-area conversions, expressing sensitivity and the final result in the acceptance criterion’s units. A sensitive instrument method may still be inadequate once those conversions are applied.

These hypothetical cases illustrate measurement interpretation and study completeness. The numerical inputs are not acceptance limits; decisions depend on the approved criterion and protocol.

Case 1 — Recovery-corrected surface result

Assume a blank-corrected measured mass of 0.60 micrograms from a 25 cm² swab area. Applicable overall recovery is 60%, and the reported mass has not already been recovery-corrected.

• Corrected mass = 0.60 ÷ 0.60 = 1.00 microgram.
• Corrected surface result = 1.00 ÷ 25 = 0.040 micrograms/cm².

Apply the recovery factor once, not again after converting to surface units. The result estimates residue per sampled area; it does not establish a pass without the approved surface criterion.

Case 2 — Effective quantitation capability

Assume an extract limit of quantitation (LOQ) of 0.10 micrograms/mL, an extraction volume of 10 mL, overall recovery of 50%, a 25 cm² sample area and no further dilution.

Effective surface LOQ = 0.10 × 10 ÷ 0.50 ÷ 25 = 0.080 micrograms/cm².

Compare 0.080 micrograms/cm² with the approved criterion expressed on the same surface and recovery basis. If the criterion is below this effective LOQ, the method cannot quantify residue at that decision level. An LOQ at or below the criterion addresses quantitation capability, but is not itself evidence that a sample passes. A below-LOQ report does not mean zero residue.

Case 3 — Acceptable rinse, missing critical swab

Assume the approved protocol requires both a system rinse and a gasket-location swab. The rinse meets its approved criterion, but the swab was not collected before equipment conditions changed.

This is incomplete study evidence, not a demonstrated residue failure. The rinse cannot substitute for the missing protocol-defined observation. Preserve the execution record, document the deviation, and assess equipment status before further use. Investigate whether scientifically justified additional work can resolve the gap; a later swab cannot reliably reconstruct the earlier condition. Keep any additional results distinguishable from the original incomplete run.

For the next steps, see failure handling and controlled recovery.

Annex 15 section 10.2 rejects repeated cleaning and retesting until acceptable residue results are obtained. A later passing result does not erase the earlier event. See the legal and guidance basis for the status and applicability of this guidance.

As practical investigation categories, distinguish an actual failure—a valid residue result above its approved limit—from missing evidence, such as an unrecorded contact time. An invalid measurement, such as a sample with demonstrated handling contamination, cannot establish equipment cleanliness. Neither missing evidence nor an invalid measurement establishes a pass.

These practical controls target different causes; they are not interchangeable remedies. For analytical units and recovery problems, use the measurement checks described in the sampling section.

Controlled recovery starts by identifying affected equipment and work, restricting use as appropriate, and retaining original results. Assess whether evidence supports a laboratory issue or a cleaning-process issue; do not presume laboratory error merely because a result is inconvenient. Investigate cause, obtain approval for corrective action through CAPA, and define justified follow-up work, including its purpose and acceptance criteria, before execution.

Additional cleaning may be operationally necessary. Record it separately: corrective work can support a subsequent disposition without converting the original failed execution into a success.

These terms describe different manufacturing objectives, not interchangeable labels for cleanliness. Start with the cleaning validation definition; use the comparison below to match each activity to its evidence and conclusion. The distinctions reflect common manufacturing practice, not sector-specific legal definitions.

Evidence can be related without being interchangeable. A cleaning result does not establish a sterilization outcome, and an acceptable manufactured batch does not by itself validate equipment cleaning. Each conclusion must stay within the process, conditions and endpoint actually evaluated.

These examples illustrate practical cleaning challenges, not universal sector characteristics or additional legal requirements.

Residue identity, product exposure, surface geometry, material compatibility and the consequences of carryover drive practical risk-based study design. Select challenges around the actual cross-contamination pathway, rather than the industry label alone. Chemical-residue evidence and microbial-control evidence remain separate endpoints where both matter; a result for one does not establish the other. See the neighboring contamination-control terms comparison above for the distinction.

As a practical evidence model, use stable identifiers to connect each observation and decision to its study context. The following diagram illustrates a site-owned structure, not a specific application's database; arrows represent traceable relationships, not automatic data flows.

Study ID → protocol version + procedure version → equipment-train ID + previous-product/batch ID → cleaning-execution ID → sample ID + location ID → raw-result record → calculation version → deviation records → review decision. Keep equipment-use decisions and product-batch dispositions as separate linked records, each with its own evidence references and responsible reviewer.

Control transfers and exceptions

Interfaces among work-order records, equipment logs and laboratory systems are implementation choices. For each transfer, define the authoritative record, identifier mapping, units, version handling and reconciliation owner. Preserve links to batch execution history rather than relying on matching timestamps or equipment names alone. Specify how corrected source records supersede earlier transferred values without obscuring their history.

Detect missing and duplicate transfers. An unavailable result is not a failed result, but neither establishes acceptable cleaning. Retain the source record, reconcile corrections and document resolution before using the record in a disposition. Assign unresolved exceptions to an owner; use audit-trail review to examine relevant changes rather than silently replacing disputed values.

Implementation and review checklist

Before concluding the study, confirm the elements explained in earlier sections:

• Scope matches the equipment train and products studied.
• Controlled procedure and protocol versions are identifiable.
• Challenge selection is justified.
• Limits and units are consistent across records.
• Sampling and analytical method capability are established.
• Required executions and observations are complete.
• Calculations are reproducible from retained inputs and versions.
• Exceptions have a documented disposition.
• The conclusion identifies its continuing applicability and boundaries.

Software can support evidence organisation, not substitute for a quality decision. See V5's batch-record evidence support for its limited role; responsible people retain approval and release decisions.

Approval of the validation conclusion, equipment availability and product release stays with authorized people under the site’s procedures. A consolidated record does not make those judgments by itself; an electronic release record documents the accountable decision rather than replacing it.
