Moist Heat Sterilization Validation: Scope, Evidence and Records

Moist heat sterilization validation is the documented demonstration that a defined moist-heat process consistently meets predetermined microbial-inactivation and product-acceptability criteria for specified products or items in specified load configurations.

In engineering practice, the scope identifies the product or item, sterilizer, cycle revision, load configuration and intended processing purpose. A conclusion therefore applies to a defined combination—not simply to an autoclave or a cycle name. This article focuses on steam processes; other moist-heat applications are not technically interchangeable merely because they use heat and moisture.

The following distinctions reflect common engineering usage rather than universal legal definitions. They separate the conclusion supported by each activity from conclusions that need different evidence.

Pharmaceutical products and equipment are the principal examples here. Devices, food, supplements and chemicals are separate product contexts: their processing objectives and regulatory applicability need individual assessment. For the broader study structure, see process validation; for equipment performance studies, see performance qualification.

For US drug products purporting to be sterile under 21 CFR 211, 21 CFR 211.113(b) requires appropriate written procedures designed to prevent microbiological contamination to be established and followed; those procedures must include validation of all aseptic and sterilization processes.

Start the applicability assessment with the marketed product, intended use, destination market and role of the sterilization step. The following mapping is a practical allocation of assessment work, not an extension of the US drug obligation.

Keep the authority of each source visible

• Binding law: identify the applicable provision and keep its product and jurisdiction limits attached to the obligation.
• Official guidance: identify recommendations separately; do not recast them as statutory duties.
• Recognised industry practice: treat the engineering methods in the following sections as approaches to building a technical justification, not additional provisions of the US drug rule.
• Software support: assess record-handling functions separately from legal authority and scientific adequacy. Keep approval and release decisions with accountable people.

For US drug manufacturing, check the current text of 21 CFR 211.67 and 21 CFR 211.100 for scope.

In moist-heat engineering practice, exposure is interpreted through temperature history, exposure duration, the heating environment—including steam contact and moisture availability—and microbial resistance. Temperature alone does not establish an equivalent microbial challenge across different environments.

Chamber measurements describe conditions at chamber sensors. Heat-distribution studies examine spatial variation across the defined study space; temperature mapping helps locate differences worth investigating. Heat-penetration measurements examine temperature histories within relevant load locations. A satisfactory chamber trace therefore cannot substitute for evidence that the load received the intended exposure.

F0 is conventionally defined using a fixed reference temperature and resistance-parameter set adopted by convention; that conventional definition is what the term F0 means. Other equivalent-time lethality calculations may use different reference conditions, measurement locations or resistance parameters, and are not F0 unless they adopt the conventional reference assumptions. Whichever calculation a company selects, the reference conditions, resistance parameters, calculation settings and acceptance targets remain the company's chosen method; F0 alone is not proof of sterility.

Overkill and bioburden-based approaches are method-selection topics: the former typically uses a conservative microbial challenge, while the latter relates process design to characterised product bioburden and resistance. Any half-cycle reasoning needs scientific justification within the selected method, rather than being treated as a universal steam-validation recipe.

Worked case: conflicting chamber and load evidence

Assume a steam process with predefined, separate chamber and load-probe criteria, with temperature recorded in degrees Celsius against elapsed time in minutes. The chamber trace satisfies its criterion, but a load probe does not satisfy its own. The study has not demonstrated acceptance at that load location; chamber success does not cancel the conflicting result.

Investigate probe placement, signal integrity and calibration evidence alongside possible inadequate exposure. A potentially invalid measurement needs an evidence-based explanation, not dismissal because it failed. If the measurement is valid, treat the result as failure against the load criterion. Neither finding establishes a microbial outcome. Follow the exception-handling section below for disposition steps.

Qualification commonly organises evidence around installed configuration, intended operating functions and performance under selected study conditions. This establishes equipment readiness, not the load-specific process conclusion described above. The coverage below is an engineering assessment framework, not a universal qualification package.

• Installed configuration: link chamber identification to drawings, sensors, drain arrangement, utility connections and the documented maintenance state. Record the controller or software revision and cycle configuration so the assessed setup is identifiable. These records support installation qualification.
• Operating functions: assess cycle sequencing, alarms, interlocks and vacuum functions where relevant to the design. Define the intended response and retain observations of actual behaviour through operational qualification.
• Study-condition performance: document whether equipment and utilities behave consistently under the conditions selected for the study. Identify operating ranges supported by those observations without treating equipment tests as proof of load sterilization.

Assess steam supply suitability against the process design, including non-condensable gases, condensate management, air removal and utility stability. Select assessment methods and acceptance criteria for that design rather than assuming a universal utility limit or test method. Record dependencies such as supply demand, drainage configuration or maintenance interventions that could affect study conditions.

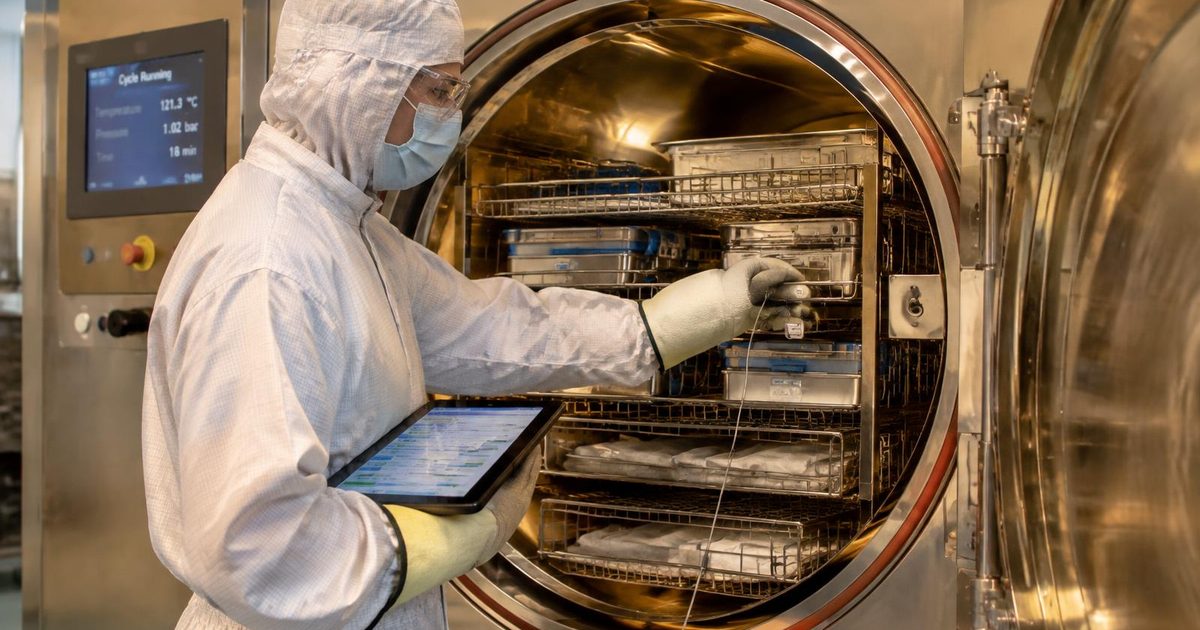

Maintain an instrumentation record linking every study channel to instrument identity, physical location, calibration status, measurement range, sampling configuration and clock reference. Distinguish controller measurements from independent study measurements. Where relevant, connect as-found and as-left calibration results to the assessment of measurement reliability.

Carry the qualification findings into the validation protocol: identified limitations, relevant operating ranges, unresolved equipment issues, and utility or maintenance dependencies. Assign each unresolved issue a documented disposition explaining whether it prevents study execution or limits the conclusions available from the resulting data.

Load grouping is an engineering practice, not a universal loading rule. Define a proposed family by material, geometry, packaging, orientation, density and, where relevant, fill characteristics. Describe the pathways for heating, steam access and condensate drainage. Similar item names alone do not establish that different arrangements present comparable challenges.

Justify candidate challenge configurations and locations against those characteristics: enclosed surfaces, closely packed interfaces or drainage-restricted features may warrant investigation. Examine lower and higher loading conditions where they could affect steam distribution or heating behaviour; the largest load is not inherently the worst case. Use targeted temperature mapping to investigate the proposed challenge locations rather than treating an assumed cold location as established.

Where biological indicators form part of the selected method, record indicator identity, lot, resistance information, placement, handling and recovery conditions, linked to the corresponding run. Keep biological results distinguishable from physical measurements, while relating both to the same load configuration and locations. Indicator use and interpretation depend on the selected method; neither a positive nor a negative result substitutes for examining the physical exposure evidence.

Worked case: changed orientation and spacing

Assume an existing steam process for wrapped reusable equipment, with unchanged item materials and packaging but a proposed arrangement that changes orientation and spacing. Compare both changes with the established family boundaries. Could the new orientation retain condensate? Could altered spacing obstruct steam access or change heating at wrapped interfaces?

If the arrangement remains within documented boundaries and existing studies address these mechanisms, reviewers may conclude that the existing justification applies. If either point is uncertain, define comparative physical studies at the affected locations and biological evidence where the method calls for it before deciding. Record measured temperature in degrees Celsius, elapsed time in minutes and pressure in kilopascals, identifying whether pressure is absolute or gauge. Do not infer a successful outcome from unchanged cycle settings.

Retain a reproducible load definition: controlled drawing or photograph reference, item identifiers, packaging revision, arrangement, challenge locations and rationale for the selected configurations. Link this definition to the study runs so reviewers can distinguish the arrangement tested from the arrangement proposed for routine use.

As a practical study-design approach, structure the protocol around decisions, not just execution steps. Define scope, objectives, applicable process and load revisions, prerequisites, responsibilities, study sequence and data sources. Explain why the planned coverage addresses the selected loads and challenges; connect that rationale to the relevant performance qualification scope. Identify the people assigned to each review role.

Before execution, specify company-defined acceptance criteria and their rationale for the selected physical and microbiological methods. Include product or item acceptability, packaging condition where relevant, and supporting-record completeness. Distinguish an unacceptable result from a measurement that cannot support interpretation.

Define calculation settings, units, input selection and review checks. Predetermine how excluded or invalid measurements retain their original records and documented rationale. Set assessment routes for missing observations, interrupted studies and deviations, including who decides whether usable evidence remains. Make repeat studies depend on the investigated cause and remaining evidence gap, not an automatic repeat rule. Route amendments through change control, preserving the original plan and distinguishing prospective changes from departures already incurred.

Suggested lifecycle: protocol approval → execution → completed-results review → final-conclusion approval. Assign pre-execution approval to the validation owner and quality approver; assign technical results review to engineering and microbiology leads as applicable. Assign final-conclusion approval to the designated quality authority. These are separate human decisions, not software status changes.

Structure the final report around actual execution against plan, evidence-to-criterion assessment, deviations and their disposition, justified process boundaries, unresolved limitations and the recommended status for authorised use. Make any restricted scope explicit so the approver can distinguish supported uses from uses that remain unsubstantiated.

A practical evidence model lets a reviewer follow each moist heat validation conclusion back to observations and their context. The relationships below are an implementation-neutral traceability approach, not mandated software fields. They can support requirements traceability without prescribing an application or database.

Process scope → Protocol revision → Study run Study run → Load configuration + Raw measurements + Supporting laboratory evidence + Deviations Raw measurements + Supporting laboratory evidence → Derived calculations, where used Study run + Derived calculations + Deviations → Summary conclusion → Human review decision

Read each arrow as a traceable relationship, not a mandatory sequence or a one-to-one mapping. A study run may have multiple measurement files, samples and deviations; preserve those relationships rather than flattening them into a single pass/fail entry.

• Process scope and protocol revision: identify the scope version, protocol identifier, revision and approval references governing the study run.
• Study run and load configuration: connect the run identifier, sterilizer identity, timestamps and configuration reference to the actual arrangement studied.
• Raw measurements: retain instrument identity, calibration reference, sensor location, units and timestamps with the original observations.
• Supporting laboratory evidence: connect sample identity and collection location to the study run, laboratory record and indicator lot where applicable.
• Deviations and human review decision: link each deviation to affected evidence, its assessment and resolution; identify the reviewer, decision, date, approval references and any limitations.

Keep original observations distinct from derived calculations and summary conclusions. For each calculation, identify its input data, units, method version and declared assumptions. Preserve the calculation output separately so a reviewer can reproduce it without treating the summary as the underlying evidence.

Review provenance through attributable recording: who or what created each observation, and when? Check completeness against the protocol, legibility of files and annotations, revision history without obscuring earlier records, and retrievability of linked evidence. Can another reviewer reconstruct the conclusion? No particular file format, electronic signature implementation or record system establishes compliance by itself.

The following are risk-based operational practices, not product-release rules. Operational handover translates the approved validation boundaries into controlled cycle selection, load instructions, routine observations and named review responsibilities. Instructions should identify permitted configurations, checks before starting, records to review after completion and conditions that trigger escalation.

Routine review commonly checks the selected cycle revision, actual load arrangement, recorded process conditions, alarms and instrument status. Operations records execution; engineering assesses equipment and utility concerns; designated validation and quality reviewers assess exceptions. Maintenance handover should communicate interventions and any restrictions before equipment returns to use.

Assess changes against the validation rationale

For cycle revisions, load configuration, packaging, utilities, instruments or maintenance interventions, identify which validation assumption could change. Examples include steam access, exposure at challenge locations and measurement reliability. A risk-based validation assessment should connect the proposed change to existing evidence and justify additional studies or continued use within the approved scope. Base that decision on the affected rationale rather than prescribing a calendar-based revalidation interval.

Worked case: a gap in the monitoring export

Assume a completed study run has an export gap during a relevant exposure period. Record the run identifier, instrument identifiers, affected channels and gap start and end as elapsed time in minutes. Preserve available original records, exports, metadata and temperature readings in degrees Celsius; establish whether the gap affects export only or acquisition too.

Use a data integrity risk assessment to examine independent evidence for coverage, timing alignment and relevance to the study question. Apply the predefined decision rules: can that evidence resolve the uncertainty? Do not interpolate missing exposure as observed data or assign a passing result without adequate support.

The exception route is evidence preservation, impact assessment, investigation, documented disposition, authorised recovery and closure of follow-up actions. A later repeat remains linked to the original event; it does not erase it. Keep study acceptance, equipment-use authorisation and product disposition as separate, documented human decisions within the quality assurance process.

Use an implementation-neutral interface map for moist heat validation. The following integration design pattern links evidence without treating a successful transfer as scientific acceptance or a release decision.

• Controller to monitoring repository: associate cycle traces with the sterilizer identifier, cycle revision and run identifier. Retain channel-to-instrument mapping; MES and SCADA integration provides related interface context.
• Laboratory records to run evidence: link each sample identifier to its run identifier, load revision and sampling location. Keep laboratory interpretation distinct from controller status; see MES to LIMS integration.
• Calibration or maintenance records to measurements: use the instrument identifier and sterilizer identifier to locate the records applicable when the run occurred.
• Document control and deviation management to the evidence set: link approved cycle and load revisions, and attach each deviation reference to the affected run, sample or instrument.

At each boundary, check units, absolute versus gauge pressure reference, timestamp basis and channel mapping. Detect revision mismatches, duplicate imports and incomplete transfers. Route unresolved discrepancies through the earlier exception route for disposition.

Reconcile source records against transferred records for identity, completeness and values, documenting any transformations. Make transfer status visible—pending, complete or failed—and preserve correction history linking the original entry, corrected entry, reason and responsible person. These are data integrity by design considerations, not claims about an existing application.

In this proposed design, software organises, links and presents evidence. Authorised people interpret results, approve conclusions and make release decisions.

Use these engineering and documentation review prompts alongside the chamber-versus-load interpretation, changed load families and missing-data cases covered above. They are practical checks, not additional regulatory requirements or claims about incident frequency.

Use these practical review questions to expose unresolved decisions—not as a scoring system or a substitute for technical judgment.

Scope

Are the assessed process and load revisions identifiable? Is the selected method justified within the risk-based validation rationale?

Execution

Were the planned challenges executed? Can reviewers distinguish completed work from omitted, repeated or substituted studies?

Evidence

Does every acceptance criterion have a traceable assessment? Are calculation assumptions identifiable and limitations explicit?

Disposition

Do deviations have documented dispositions? Does the final conclusion stay within the studied boundaries? List unresolved questions with an owner and their effect on the proposed conclusion; checklist completion does not itself authorize approval.

Handover

Do routine instructions, assigned responsibilities and change-assessment triggers reflect the approved conclusion? Is responsibility for human review and approval clear?

Use the FAQs for separate edge-case decisions: product versus equipment scope; access to contract records; gaps in legacy packages; reliance on supplier certificates; parametric-release assessment; uncertainty affecting acceptance; relocation impact; and the distinct role of media fills. Flag any applicable question for resolution rather than treating a general checklist answer as its disposition.
