Tray Drying: Meaning, Evidence and Controls

Tray drying is the removal of water or another solvent from material supported on trays or shelves through heat transfer and vapour removal. This article covers batch shelf and oven drying, including the vacuum-tray variant. The defining feature is the supported load: material remains on a surface rather than being suspended by the drying gas.

These distinctions describe mechanisms, not a universal equipment ranking. Vacuum drying changes the operating environment without changing the supported-load arrangement; loss on drying measures a sample rather than processing the batch.

The dryer operation and its acceptance test answer different questions. An analytical sample does not establish the condition of every tray, and a dryer cycle record does not by itself establish the material’s end point. Evidence of drying uniformity connects material condition to locations within the load, rather than treating the batch as a single undifferentiated mass.

Tray-dryer selection is a product-and-facility decision. Assess material form, cohesiveness, solvent system and handling behaviour: can the wet material be spread reproducibly, remain on the tray and be removed without unacceptable sticking, dust or damage? Consider available tray area, containment needs, cleaning access and the characteristics needed downstream, such as friability, flow or suitability for milling.

Operational simplicity does not mean low handling effort. Loading, levelling, unloading and cleaning can dominate the work. Compare those tasks with staffing, transfer arrangements and spillage and cross-contamination controls, rather than judging suitability from the dryer chamber alone.

Tray drying is a unit operation; critical process parameter (CPP) classification concerns particular parameters and their demonstrated relationship to product quality. Neither the operation itself nor every adjustable setting is automatically a CPP. In risk-based process development, parameter classification follows product-specific evidence rather than the equipment name.

Treat scale-up as a change in geometry and transport conditions, not simply a larger batch mass. Evaluate available surface area, layer depth, occupied tray positions and airflow distribution together. More material in the same tray area changes the drying problem even when nominal settings stay unchanged. Include these comparisons in change control when adapting an established process. For thermal-sensitivity decisions, see the dedicated heat-sensitive materials section below.

Tray drying couples heat delivery with moisture removal. Heat reaches wet material through convection from air, conduction through tray or shelf contact, and radiation from surrounding surfaces. Vapour then moves away from the exposed surface. This external transport is distinct from moisture movement within particles or through the layer: improving cabinet ventilation may have little effect when internal moisture movement controls the drying rate.

Drying behaviour can change within a batch. Shrinkage, cracking, agglomeration or surface crusting can alter exposed area, material structure and resistance to moisture movement. Depending on the material, a dry-looking surface can coexist with a wet core. These are engineering considerations, not regulatory conclusions.

Distinguish inlet or chamber air temperature, shelf temperature where relevant, and measured product temperature. Evaporation consumes heat and can keep wet material cooler than the heating environment. As evaporation slows, product temperature may rise towards that environment without a changed air setting. For meaningful temperature monitoring, identify sensor location and contact: an air reading is not a direct measurement of product exposure.

Preferential flow may bypass densely loaded regions. Neither air velocity at one point nor an empty-chamber temperature map establishes uniform flow or moisture uniformity in loaded product. Interpret equipment measurements alongside spatial product observations under the intended load configuration.

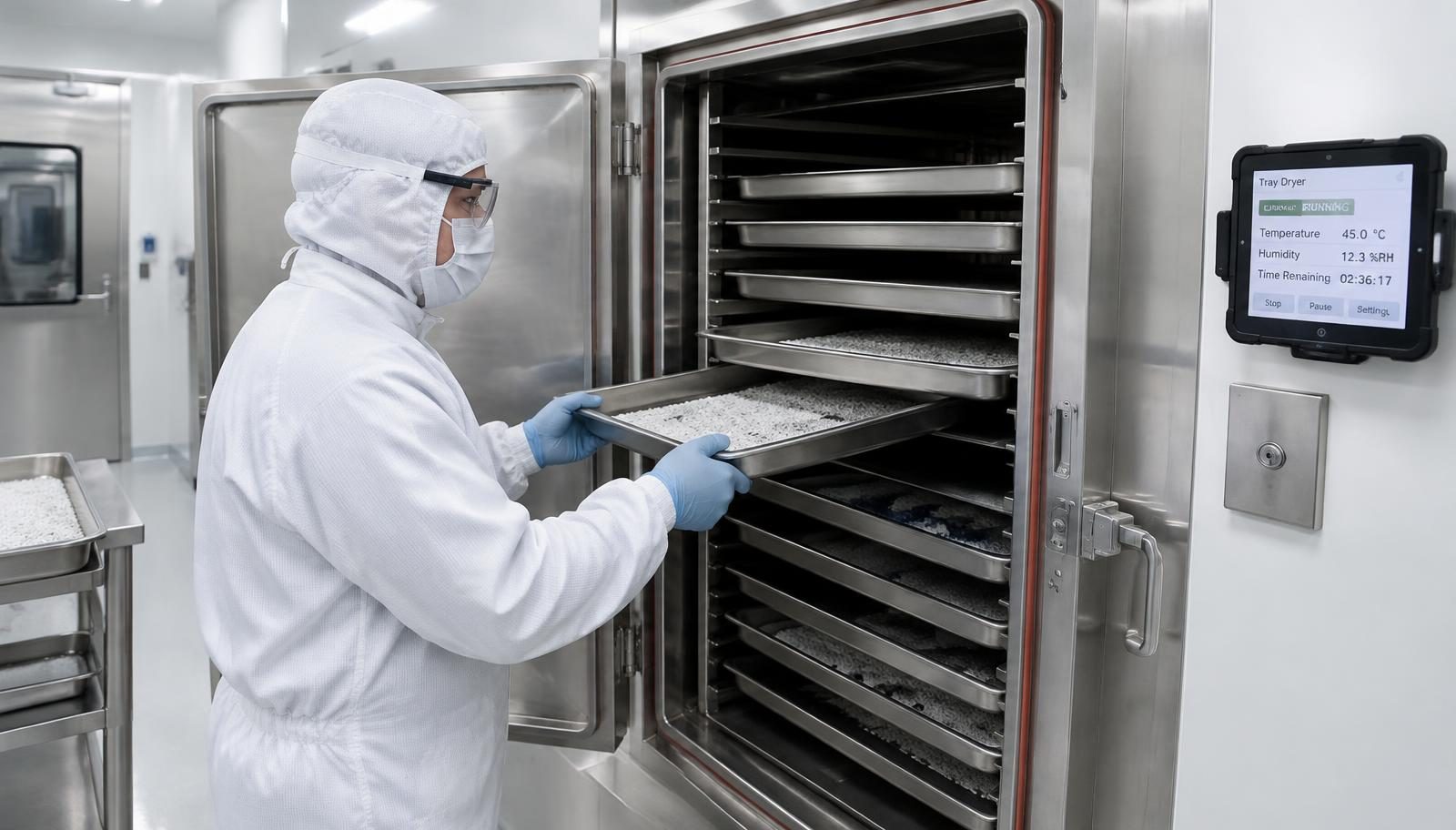

A practical tray-drying sequence starts with material identification and equipment readiness, not heater start-up. Confirm the material and batch identity, dryer identity, cleaning status and applicable operating-schedule revision. Check that trays, liners where used, and loading tools are compatible with the material and intended operation. Load using the scheduled method, establish the specified bed depth and tray arrangement, and record the initial position map before starting drying. Site procedures determine the detailed checks, responsibilities and permissions at each step.

Keep airflow settings, load depth, tray positions and any rotation or repositioning within the approved operating schedule. Identify each tray before movement and retain its position history: where it started, where it moved, when and by whom. A scheduled rotation is an execution step; an unplanned adjustment is an exception for assessment, not an undocumented attempt to improve a result. Record the reason and action taken, and route the event through the site's exception review process.

Separate prescribed settings from actual observations in the batch execution history. Record relevant loading conditions, observed readings, movements, interruptions and sampling events against the batch timeline. Label measurements with units and measurement location; distinguish air readings from product readings where both are taken. Align timestamps across operator entries, dryer records and sample labels, documenting known clock differences rather than silently treating them as simultaneous. Manual records can support this reconstruction; automated collection is not assumed. Identify who made each entry and connect each sample to its tray and location.

After sampling and the authorised decision to unload, use product-specific unloading, holding and transfer conditions. Consider whether ambient moisture, condensation or an uncovered hold could change the achieved end point. Preserve tray-to-container identity during discharge, including when several trays enter one container under the approved plan. Prevent unintended mixing and apply appropriate spillage and cross-contamination controls. Record container identity, closure and transfer status so that the next operation receives identifiable material with a reconstructable handling history.

A practical sampling plan starts with loaded-product observations: which tray regions dry slowly, where airflow appears restricted, and whether the surface and interior of a layer behave differently. Use these observations to justify locations and relevant within-layer depths, rather than choosing only accessible material. Record tray identity, position, sample depth where relevant, sampling time, sampling method and handling conditions through the sample login and handoff. Neither a convenient surface sample nor an unexplained composite establishes location-specific uniformity; compositing removes the ability to attribute the combined result to individual locations.

Apply the analytical boundary established above: water-specific measurement addresses water; loss on drying measures mass lost under the method’s conditions and may include other volatiles; residual-solvent measurement addresses the relevant solvents. Identify the applicable analytical method and reported wet- or dry-mass basis before comparing results or applying water/LOD compensation. Protect samples against moisture gain or loss during transfer and storage, and document handling conditions and delays that could affect interpretation.

Worked case: assume equal wet-mass samples from separate tray locations, measured by the same water-specific method. Let U be an illustrative location-specific upper moisture criterion and δ a positive difference, both in kg water/kg wet material. Assume both results are physically meaningful water mass fractions. U is not an operating recommendation.

The equal-mass sample mean is U because the deviations cancel, but location B exceeds U. This sample mean is not automatically the batch mean: the samples do not establish how much batch material each location represents.

In common out-of-specification handling, additional sampling answers a defined investigation question while retaining the original result and location identity. A later passing sample does not itself invalidate an earlier adverse result. Blending to dilute a wet location is not a substitute for investigation and an authorized disposition.

Wet-basis moisture w is water mass divided by total wet-material mass, in kg water/kg wet material. Dry-basis moisture d is water mass divided by dry-solids mass, in kg water/kg dry solids. The denominators differ, so the reported values are not interchangeable. Convert percentage reports to fractions before using these identities:

d = w / (1 − w); w = d / (1 + d). These conversions describe composition; they do not establish acceptance criteria.

Worked balance: retain solids, remove water

Let initial wet-material mass be M_in kg, initial wet-basis moisture be w_in, and final wet-basis moisture be w_out. Assume only water leaves, dry solids remain unchanged, and no material is lost through sampling, spills or transfer. Use net material masses, excluding trays and containers; see net-vs-gross reconciliation.

Retained dry solids are S = M_in × (1 − w_in). Because final solids also equal M_out × (1 − w_out), final mass is M_out = S / (1 − w_out). Subtracting final mass from initial mass gives water removed = M_in × (w_in − w_out) / (1 − w_out).

The reconciliation is exact: M_in = M_out + water removed. This drying mass balance is a consistency check, not a manufacturing recipe or an independent moisture measurement.

The calculation becomes insufficient when non-water volatiles leave, solids change, material losses go unaccounted for, or moisture measurements do not represent the load. Total water removal cannot establish that every relevant tray location meets its criterion; that conclusion depends on the spatial end-point evidence discussed above.

For US finished human drugs under 21 CFR part 211, 21 CFR 211.100(b) requires written production and process control procedures to be followed and their execution documented at the time of performance. For those US finished human drugs, the same provision requires deviations from written procedures to be recorded and justified.

For US finished human drugs under 21 CFR part 211, 21 CFR 211.110(a) requires written procedures to be established and followed describing in-process controls and tests or examinations on appropriate samples of each batch’s in-process materials. In a tray-drying control strategy, the practical connection is between the operating instructions, the sampling plan and the evidence used to judge the batch—not simply a recorded dryer setting.

For US human oral solid drug products, FDA’s historical inspection guide, Manufacturing Procedures and Equipment, b) Dryers recommends dryer heat-uniformity qualification and a program addressing granulation moisture uniformity at the drying end point. This historical US oral-solid-drug guidance is not a binding equipment-performance rule; the guide explicitly states that it does not bind FDA.

Engineering practice supports a product-specific control strategy: regulations establish obligations, not proof of heat or mass transfer. For supplements, food, devices, chemicals and other jurisdictions, assess the applicable product and market framework separately rather than transferring this US drug mapping unchanged.

Tray drying is not inherently gentle: suitability depends on the material, product and equipment scale. As a development practice, assess the actual product exposure history against relevant degradation mechanisms and downstream quality needs, using the temperature distinction covered above. Consider exposure through heating, drying and cooling rather than judging suitability from the nominal dryer setting alone. A satisfactory moisture result does not establish that potency, functionality or physical structure has been preserved.

Vacuum drying changes vapour-removal conditions through reduced pressure, but pressure reduction alone establishes neither acceptable product exposure nor uniform drying. For vacuum-tray trials, evaluate shelf contact, layer depth, heat delivery and vapour-handling capacity together with the intended residual moisture or solvent condition. Compare loaded-material results, not simply equipment settings or empty-chamber performance.

Possible selection factors include oxidation sensitivity, loss of desirable volatile components and solvent-handling hazards. Compare alternative equipment through measured product outcomes: relevant degradation products, retained activity or aroma, physical properties and downstream processing behaviour. Pair those results with an engineering safety review of the proposed material–equipment combination, including vapour collection and handling. This product-specific comparison is more useful than a universal temperature, duration or equipment preference.

Use the following practical troubleshooting structure to separate observations from hypotheses and authorized actions; possible explanations are not diagnoses.

Worked recovery case: assume ventilation stops during a batch and the available records leave part of the exposure history uncertain. Place the material on hold. Preserve alarms, trends and contemporaneous observations in the batch execution history, including whether heating continued. Identify affected trays from their positions and movements; where exposure cannot be distinguished, include all potentially affected trays in the assessment.

Assess product impact against the material’s sensitivities and approved process. Document the uncertainty and the basis for authorizing continuation, additional testing or another disposition. Restarting the cycle does not restore missing exposure evidence.

Restored equipment function is not restored confidence in the batch. Record the investigation, authorization and subsequent execution separately, retaining original observations rather than replacing them with the recovery narrative.

These process-development scenarios illustrate product-specific questions, not regulatory requirements or common acceptance limits.

• US oral-solid-drug granulation: Relate the moisture profile and drying history to the characteristics needed for milling, blending and compression. Development trials can examine granule friability, flow and compaction behaviour alongside moisture, informing product-specific in-process controls.
• Supplement botanical material: Consider moisture distribution alongside oxidation sensitivity and preservation of the intended composition. Compare composition before and after drying rather than treating water removal as evidence that the botanical material remains suitable.
• Food ingredient: Distinguish moisture control from a separately established microbial-control step. A drying end point does not itself demonstrate microbial reduction; frame bioburden monitoring around the relevant food-process question.
• Device component: Evaluate residual moisture and compatibility with the next assembly or processing step, such as bonding. Powder-flow and granule-strength criteria may be irrelevant to a shaped component.
• Chemical filter cake: Consider solvent identity, retained liquid, resulting physical form and safe vapour handling. Define which liquid species the analytical result represents before interpreting it as a drying end point.

Across these scenarios, ask: what changed, where did it change, and how does the result support the next step?

A practical evidence model centres on the drying run, with linked records for identified trays, process observations, end-point samples, and exception or decision events. Attach the approved schedule revision and dryer identity to the run; associate instrument identities with observations and analytical method revisions with sample results. Retain each sample’s tray and location labels as recorded at collection, rather than relying on its tray’s final position. This production context tagging lets reviewers trace a result back to the material and execution conditions it represents.

Interfaces among dryer records, laboratory records and batch documentation are implementation choices, not inherent dryer capabilities. A historian interface might transfer observations; a laboratory interface might associate results with samples. Before comparing imported values, reconcile run and tray identifiers, timestamps and time zones, units, moisture basis, and sample-location labels. Keep event time distinct from import time. Label recorded setpoints, measured observations and derived calculations separately; retain calculation inputs and the calculation version so a calculated water loss cannot be mistaken for a measured moisture result.

Define handling for failed transfers, duplicate imports, missing records, corrections and delayed laboratory results. Track expected records against received records, and flag unresolved gaps rather than interpreting silence as acceptance. Preserve original values and link corrections to the values they replace and any decisions based on them. Assign a responsible human reviewer to reconcile exceptions and assess affected decisions before the next authorized step. This is data reconciliation, separate from physical dryer recovery.

Use these practical questions as a readiness gate, drawing on the controls discussed above:

• Are the product, material state, batch scale and intended drying outcome defined?
• Are load geometry, tray positions and any movement schedule approved?
• Do equipment and loaded-product studies address relevant variation and uncertainty?
• Are the analytical method and moisture-reporting basis suitable for the decision?
• Are sampling locations, sample handling and acceptance criteria justified?
• Who owns interruptions, unexpected results and recovery decisions?
• Are chain-of-custody transfer controls defined for handling, exposure and receiving conditions?
• Can dryer records, sample identities, results and exceptions be reconciled before human authorization to proceed?

Does the development and qualification approach justify study extent and sampling locations against process variability and the decision being supported, rather than adopting a universal run count or fixed tray-sampling pattern?

Use change review when material behaviour, batch scale, tray configuration, airflow arrangement, analytical method or transfer conditions change. Which established conclusions are affected, and what evidence needs reassessment? Avoid automatically repeating every study.
