Aseptic Fill Line: Design, Grade a and Controls

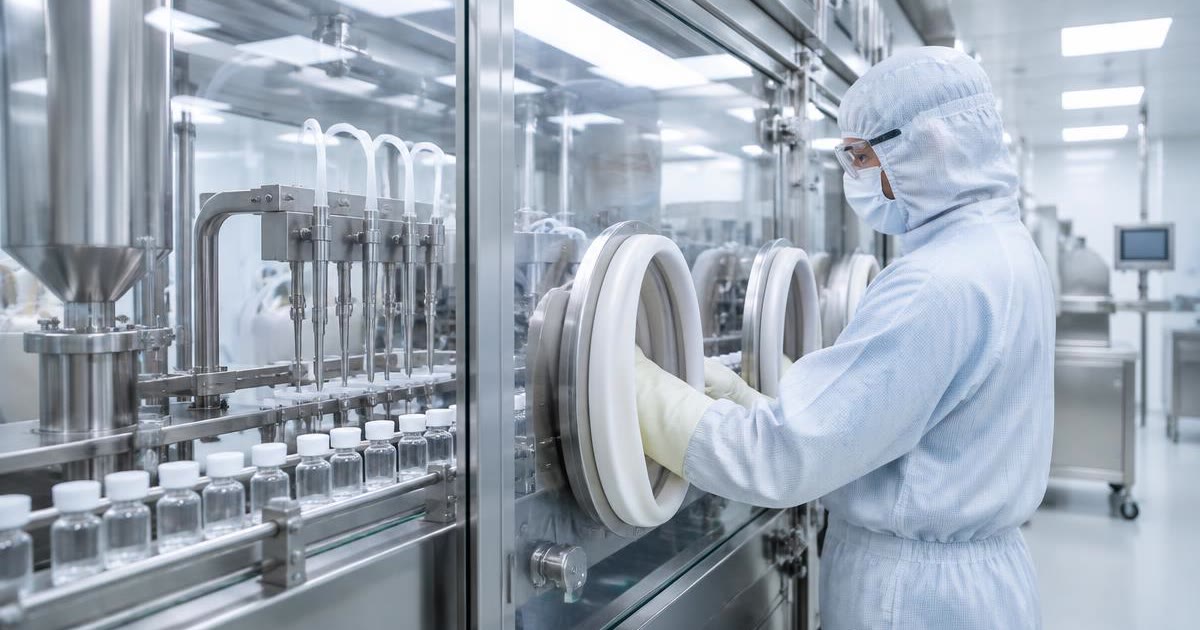

An aseptic fill line is an integrated system of equipment and controlled environments for filling sterile product into sterile primary containers and closing them while protecting exposed product and sterile product-contact surfaces from contamination.

A useful process boundary starts at the handoffs of sterile bulk product, containers and closures. Follow each exposed pathway through filling and closure, including connecting equipment, component staging and transfers—not just the filling machine.

For a liquid-vial example, trace sterile product to the filling needles, sterile vials to the filling position, and sterile stoppers to insertion. Upstream solution preparation and downstream inspection are interfaces unless explicitly included in the defined scope. For lyophilised vials, transfer while partially stoppered and subsequent closure belong in the exposure assessment, even where the lyophilizer is managed as separate equipment.

Syringes, cartridges and blow-fill-seal configurations need their own boundary assessment rather than a copied vial-line map. This article addresses line design and control; aseptic process simulation addresses the media-fill exercise in detail.

Build an applicability map before translating aseptic-filling terminology into specifications. A useful map separates legal obligations, official guidance, site procedures and the records supporting decisions. Assign an owner to each applicability assessment; an equipment description alone does not establish the governing framework.

For EU sterile medicinal products, Annex 1, paragraph 8.19 recommends regular observation of aseptic operations by personnel with specific aseptic-processing expertise. That recommendation is distinct from the site’s chosen observation schedule, checklist and escalation route.

Keep separate the physical contamination controls, evidence of their performance, review decisions and software-supported record handling. Typically, engineering owns control design, operations executes procedures, and quality reviews the evidence. Software is a record-handling aid, not a compliance certificate or a substitute for human approval and release.

Use the Part 211 overview and Annex 1 reference for context. For supplement projects, resolve the sterile/aseptic format boundary before adopting pharmaceutical terminology as a control specification.

Start with an exposure map, not an equipment label. Trace product, containers and closures separately until they meet. Overlay personnel access and waste removal. Mark exposed sterile surfaces, transfer interfaces, filling needles, closure placement and any transfer of partially stoppered vials to a lyophilizer. Include staging and return movements, not just forward production flow.

For EU sterile medicinal products, the Annex 1 glossary—RABS entry describes RABS as enclosed but not fully sealed. The following comparison is a practical design review, not a ranking of barrier types; background-room conditions belong in the environmental-control assessment.

Worked design case: liquid vial filling

Assume comparable product-contact paths and batch demand, but different closure-replenishment arrangements: staged additions through RABS transfer ports versus isolator-connected replenishment. Use intervention events per batch as the counting unit; derive counts from the proposed operating sequence rather than assumed performance advantages.

1. Map each closure addition from protected storage to the bowl, identifying exposed surfaces and every transfer route.
2. Assess glove reach, visibility and tool movement for additions and jams. Distinguish glove-only clearing from enclosure opening; equal event counts can conceal very different exposure.
3. Repeat the assessment for maintenance access and format changes, including parts removal, reassembly and preparation for restart.
4. Document the design choice against exposure, replenishment feasibility and recoverability. Carry assumptions into the operating sequence and qualification plan through technology transfer; route later access or format changes through change control.

A useful material-flow review starts at the sterile bulk handoff or sterilising-filter outlet and follows product to filling. Map containers, closures, product-contact assemblies, tools and relevant process gases to their actual use locations, including replenishment points. For each route, identify what protects the sterile surface and when that protection changes.

In operating practice, these are distinct review questions:

• Incoming acceptance: Is the correct lot accepted for its intended use, with any receiving quality hold resolved?
• Processing: Which sterilisation or decontamination step applies, to which surfaces, and under which processing or supplier reference?
• Protected storage: Are packaging integrity, storage conditions and applicable hold conditions maintained?
• Transfer: Where are outer packs removed, and how are nested containers moved without exposing sterile surfaces to contaminated packaging?
• Point-of-use handling: How are closures replenished, tools presented and aseptic connections made without compromising the newly exposed boundary?

Ready-to-use components still merit the full route review; incoming status alone does not describe subsequent unpacking and handling. A useful handoff record links lot identity, processing or supplier reference, packaging integrity, storage and hold conditions, opening event and receiving operator. Track remaining protection after opening, particularly for partially used containers.

For EU sterile medicinal products, Annex 1, section 8.10, Table 4 recommends steam-in-place sterilisation whenever possible for aseptic connections exposing sterilised product-contact surfaces downstream of the final sterilising-grade filter.

For shortages, reconcile available material status before proposing a substitution. Common change-review questions include fit, product-contact compatibility, processing suitability and transfer method. Treat interchangeability as an assessment conclusion, not a purchasing assumption; use component- and process-specific hold conditions rather than a universal time allowance.

For EU sterile medicinal products, Annex 1, paragraph 4.4 identifies Grade A as the critical zone for high-risk operations. It describes Grade B as the background for aseptic preparation and filling where the Grade A zone is not an isolator; lower-grade backgrounds can be considered with isolators. For these EU operations, the guidance recommends minimising direct operator intervention without barrier and glove-port protection through design. Keep the questions configuration-specific: what protects the exposed work site, what surrounds it, and how can operators reach it?

For US sterile drug products, use the FDA guidance’s critical-area discussion to frame the location review: where are product, containers and closures exposed, and which sampling positions represent those exposures? In operating practice, ISO 5 denotes particle classification, not microbiological status or demonstrated aseptic-process performance. Treat Grade A and ISO 5 as different descriptors, not interchangeable assurances. For EU sterile medicinal products, Annex 1, paragraph 4.24 recommends clearly distinguishing cleanroom qualification, including classification, from operational monitoring.

Build a location-and-event monitoring map

A practical environmental monitoring plan records each protected location, operating state, sampling method, collection start and end, result units, and associated exposed product.

As operating practice, relate airflow visualisation and probe placement to installed equipment geometry, replenishment movements and interventions. Examine setup, running, stoppage and recovery—not only an unobstructed line. Check whether probes represent vulnerable locations without obstructing protective airflow.

Review trends by location, method and operating state before pooling results. Align collection windows—not laboratory reporting times—with the event timeline and product exposure. For example, interpret glove print monitoring alongside the preceding activity. A line-wide average can obscure a recurring local signal; an isolated result cannot describe every exposed unit.

Manage interventions by what becomes exposed, not merely by the machine alarm. A practical operating map identifies the vulnerable product or surface at each task:

For US sterile drugs, FDA’s aseptic-processing guidance, page 42 recommends documenting line stoppages and unplanned interventions in batch records with their time and duration. A practical intervention register adds task, planned or unplanned status, operator, access route, contact or airflow concern, affected-unit boundary, and a link to the restart decision. Use an event frame to connect these entries rather than leaving separate alarm and operator narratives.

Worked interruption: stopper-feed jam

Assume liquid vial filling and a cumulative counter that increments only for filled containers. Record elapsed time in minutes and output in containers; numerical values and acceptance criteria remain process-specific.

1. At detection, record the jam, time, counter reading and line state. Stop the affected operation under the established procedure and protect exposed units without introducing additional contact.
2. Assess whether displaced stoppers, tools, gloves or access movements contacted critical surfaces or disrupted protective airflow. Identify filled but unstoppered vials already waiting in the line.
3. Establish the event window before counting: start at the earliest plausible loss of control, not automatically the alarm time; end at the justified boundary after recovery and clearance. Document uncertainty in either boundary.
4. Execute the authorised recovery task. Record access, parts handled, units removed and recovery checks. Document who authorises restart, when, and on what evidence; mechanical motion alone is not the restart decision.

Newly filled containers within the chosen window equal the ending cumulative reading minus the starting cumulative reading. Account separately for counter resets, already-filled exposed units and uncertain genealogy, avoiding double counting. Use in-process reconciliation to explain removals and retained populations. The traced population identifies containers associated with the event; it is an input to assessment, not a predetermined finding of contamination or a disposition decision.

A practical line evidence matrix separates three questions: does the equipment perform as intended, can the aseptic process withstand representative contamination challenges, and what happened during production? Link each study to the configuration tested, its operating envelope and the intervention-register entries it covers.

For US sterile drug products, FDA’s Process Simulations—Study Design guidance recommends addressing normal and nonroutine interventions, aseptic assembly, personnel activities and contamination risks associated with the longest permitted run. Map those topics to the intervention register: identify the activity, simulated conditions, responsible role and supporting study record rather than creating an unrelated checklist.

For US sterile drug products, consult FDA’s Process Simulations—Line Speed discussion when reviewing speed selection. As a practical assessment, compare the proposed speed range against exposure duration and intervention burden. Could slower operation extend open-container exposure? Could faster operation increase replenishment or adjustment demands? Document the selected challenges; do not assume one speed is universally worst case.

Through change control, ask which evidence remains applicable after changes to barriers, components, transfer methods, software-controlled sequences or intervention patterns. Has geometry, exposure time, cycle loading or operator access changed? Identify affected qualification, airflow-study and APS conclusions before choosing targeted additional work; a change label alone does not determine its extent.

Incubation procedures, numerical acceptance criteria and a complete protocol belong in the separate APS reference.

Useful line measures separate equipment behaviour, product observations and contamination-risk evidence. Depending on the process, direct observations include fill mass in grams or volume in millilitres, closure placement by inspection result, rejected-container counts, timestamped stops and equipment alarm codes. Rates and percentages are calculated indicators, not direct observations.

Define the reporting boundary before calculating performance. A practical counter dictionary is:

• Run time: minutes when the line is operating within the declared production window.
• Stop time: minutes when the line is not operating within that window; classify causes and identify excluded periods separately.
• Filled containers: containers counted once at completion of filling, measured in units.
• Rejected containers: filled units assigned to rejection; track upstream empty-container rejects separately.
• Accepted containers: filled units passing the defined in-process checks, not units approved for batch release.

For in-process reconciliation, account for every filled unit through mutually exclusive categories: accepted, rejected, sampled or pending disposition. Explain counter resets, transfers and manual adjustments. Calculate running throughput as filled units divided by run minutes; calculate window throughput using run plus stop minutes. Label reject fraction as rejected filled units divided by all filled units in the same window, and disclose pending units.

Review intervention frequency with its time or container denominator, repeated stop causes, reject patterns and unresolved evidence gaps. A batch comparison overlay can help organise these comparisons. Favourable aggregates do not establish aseptic control; keep efficiency reporting separate from sterility-related batch assessment.

Assess throughput proposals against exposure duration, replenishment frequency and monitoring access, then revisit the performance qualification questions covered above. Judge speed changes by these effects, not output alone.

Treat the following as a proposed operating architecture, not a regulatory prescription. Map MES and SCADA interfaces around record ownership: receiving systems retain source identifiers rather than silently creating competing versions.

Proposed data-model diagram: systems connect through runId; events also reference affected container ranges. Each listed owner is authoritative for its identifiers and originating values. Shared keys provide production context.

Assign sampling timestamps to monitoring, result authorisation to the laboratory, and disposition decisions to authorised human reviewers. Document interface direction, acknowledgements and exception ownership. Align clocks and time zones; preserve source and receipt timestamps, sequence numbers and measured offsets through clock-drift monitoring.

Use role-based access for entry, correction and approval. Retain configuration versions and record-change history identifying who changed what, when and why. Define local buffering, capacity alarms, replay rules, duplicate detection and reconciliation responsibility.

Data integrity asks whether records remain complete, attributable and interpretable; network security addresses unauthorised access and disruption. Their operational intersection includes protecting clock services, interface accounts and buffered records without concealing transfer failures.

Worked recovery case

Assume a six-minute central-feed gap while the controller locally records 120 events. This is not a permitted outage duration. Flag the run’s evidence as incomplete and prevent review closure pending assessment; preserve local records before replay.

Assume replay delivers 122 event records, including two duplicates: 122 − 2 = 120 unique events. Reconcile identifiers, sequence and timestamp offsets—not counts alone—and check associated monitoring streams for gaps. Document exceptions and reviewer resolution. Recovered source records demonstrate delayed transfer; information never recorded remains missing and needs a separate impact assessment.

Use this practice-based diagnostic alongside the barrier, sterile-transfer and intervention controls above. Recovery criteria address readiness to resume—not batch release.

Keep immediate correction, cause investigation and potentially affected-product assessment separate. Compare prior deviations, maintenance history, glove failures, training observations and transfer records across runs; recurrence by location, task or component can indicate a systemic weakness rather than an isolated event.

For EU sterile medicinal products, Annex 1 §2.5(xv) recommends including trend analysis, investigation, root-cause determination and CAPA within the contamination control strategy.

Use a CAPA effectiveness check to test recurrence prevention. Repair or favourable monitoring alone does not justify release; document restart rationale and retain human quality review of product disposition.

Practical review template: replace record labels with identifiers and update each status and unresolved action.

• Start: are setup, materials and qualification suitable for this run?
• Restart: is recovery demonstrated and the affected-unit boundary established?
• Disposition: are records reconciled and exceptions assessed for product impact?

Assign approval and release decisions to authorised humans. Treat software as record support, not automatic quality release or compliance certification.

Can the team reconstruct what was exposed, what happened, which units were associated with an exception and why the final decision was justified?
