Batch ID Barcode

A Batch ID barcode is a machine-readable representation of a lot (batch) identifier, typically encoded using GS1 Application Identifier (AI) (10) for batch/lot, often together with product GTIN (AI 01) and expiry (AI 17). In MES-controlled, regulated operations, scanning the Batch ID barcode enforces material identity verification, prevents mix-ups, and couples physical movements to electronic batch records. Each scan produces an attributable execution event with timestamp, user, device, and context, supporting end-to-end genealogy, yield reconciliation, and recall readiness.

Batch ID barcodes are used across receiving, quarantine release, sampling, dispensing/issue to batch, WIP transfers, blending/compounding, and packaging. The barcode ties master data (material, batch attributes) and transactional events (consumption, transfer, hold/release) together under validated system controls (21 CFR 211.68; Part 11; EU GMP Annex 11). Within ISA‑95’s model, the Batch ID is a Level 3 material lot identifier synchronized with Level 4 ERP and referenced by Level 2 equipment/terminals during execution.

GMP requires complete and accurate batch production and control records (21 CFR 211.188). Manual transcription of lot numbers is a common source of mix-ups and data-integrity errors; scan-based capture reduces risk and provides contemporaneous, attributable records that satisfy ALCOA+ principles referenced by regulators (e.g., MHRA). Scanning supports reconciliation of component usage to theoretical quantities, strengthens line clearance and status control, and accelerates deviation and complaint investigations through precise genealogy queries.

Computerized systems used for barcode generation, printing, and scanning must be validated with appropriate controls, audit trails, and user access (21 CFR 211.68; 21 CFR Part 11; EU GMP Annex 11). Proper role-based permissions are essential for reprinting labels, overriding scan failures, or acknowledging exceptions. Consistent, standard-based encoding (GS1) ensures interoperability across MES, WMS, LIMS, and ERP, and avoids vendor lock-in.

Batch ID (lot) identifiers are material-lot keys in the ISA‑95 material model and must be unique within their data domain. GS1 defines data carriers and Application Identifiers to encode structured data: GTIN (01), Batch/Lot (10), Expiry date (17), Serial number (21) when needed, and optional attributes (e.g., count (30), additional IDs (240)). GS1‑128 (1D) and GS1 DataMatrix (2D) are most common in regulated manufacturing; QR variants are used less often due to GS1 parity and scanner configuration differences.

Common symbologies and use cases

• Use AI (10) for Batch/Lot; allow up to 20 alphanumeric characters per GS1 General Specifications.
• Combine AI (01) GTIN + AI (10) Lot + AI (17) Expiry for unambiguous identification.
• Adopt GS1 separator logic (FNC1) and scanner data-normalization rules in MES parsing.

Per ISA‑95, Batch ID barcodes represent material lot instances (Level 3) that tie to product definitions and bill-of-materials at Level 4. Barcode scanning is an equipment interface function (Level 2/3 boundary) that posts material consumption, movement, and status updates to the MES material-tracking services. In ISA‑88 terms, Batch ID usage appears at Unit Procedure and Operation levels—e.g., during ‘Dispense Component’ or ‘Charge to Vessel’ steps—driving procedure interlocks and permissives.

1. Master data: material, GTIN, specification, allowed container types, shelf-life, status model
2. Transactional: lot release status, holds, inventory location, available quantity, expiry/ret-test
3. Execution: scan event, operation context, weighing ticket, reconciliation result, exceptions

Robust MES implementations persist the raw decoded AI string, parsed fields, device metadata (scanner ID, firmware), and any business-rule decisions (e.g., hold applied) in an audit-trailed record. This supports forensic reviews and reproducibility of parsing logic during investigations.

Label content must be generated from controlled master data and versioned templates. Include human-readable text mirroring the encoded AIs (clarity for operators), controlled fonts/contrast, and quiet zones per GS1 specs. Print-and-verify (P&V) cameras or scanner checks can reject unreadable or mis-encoded labels. Access control should restrict who may design templates, publish versions, or reprint labels. Reprints must reference and link back to the original lot and include reason codes, with audit trails per Part 11 and 211.68.

• Template governance: change control, test prints, and QA approval before go-live
• Unique lot ID enforcement: prevent duplicate lot code issuance across sites or systems
• Environmental durability: select stock/adhesive and placement to withstand cleaning and handling
• Verification: ISO/IEC print quality grades (e.g., minimum C grade for GS1-128) and periodic challenge scans

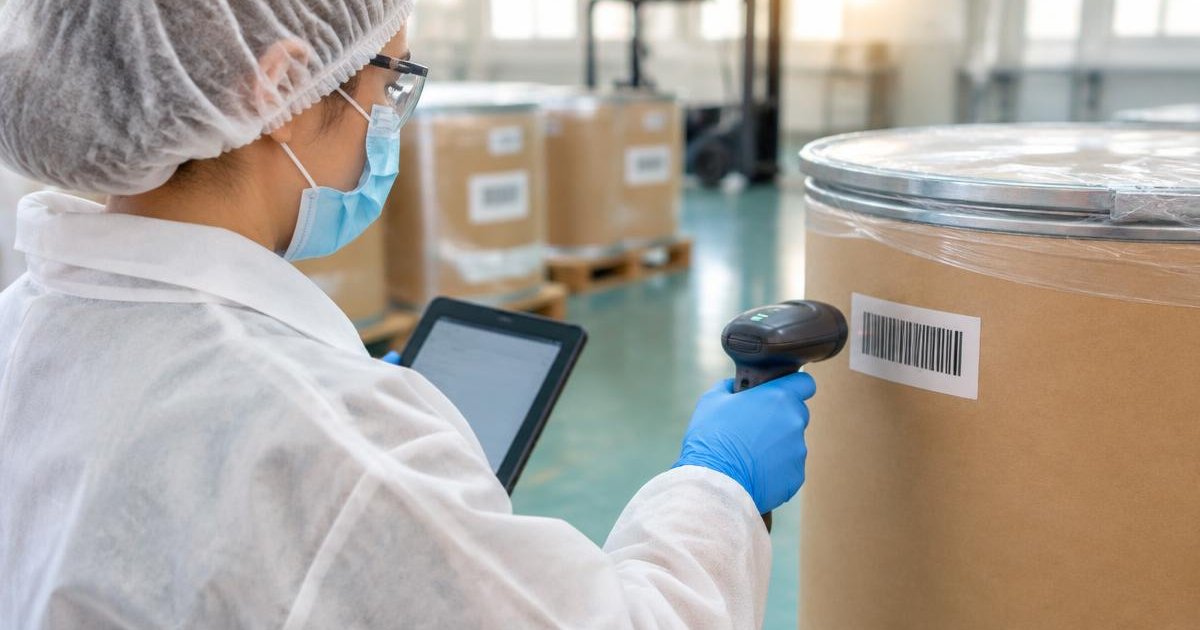

Design scanning at the natural point-of-work to serve as a permissive: the operation cannot proceed until the correct lot barcode is verified. Typical checkpoints include receiving (ASN match and quarantine tagging), sampling, QA release, dispensing/issue to batch (scale-integration and tare controls), intermediate WIP transfers, line clearance, and packaging. Each scan binds the specific batch/lot to the step, quantity, and container, feeding genealogy and reconciliation.

Common exception patterns

• Status violations: lot not released, expired/near-expiry, quantity insufficient, or component under deviation/hold
• Identity mismatches: wrong GTIN/part for step, duplicate scan, or partial container remainder logic errors
• Read failures: low print contrast, damage, condensation; handle via controlled reprint or manual verification with dual-check
• Over-issue/returns: partial consumption with residual tracking and re-labeling, with reconciliation at close

Build graded response: hard-stops for critical mismatches; guided overrides with justification and e-signature for non-critical issues; automatic CAPA/Deviation triggers for recurrent patterns. Store the scanned payload, parser results, decision tree, and operator input under audit trail, enabling robust root-cause analysis.

Batch ID barcode efficacy depends on clean system integration. At Level 4, ERP or MDM issues lot IDs and material masters; MES subscribes master data and publishes consumption/production confirmations. WMS contributes location and inventory status; LIMS binds sample IDs to lots; label lifecycle may be managed in MES or an integrated label management system. Interfaces should be message-based (e.g., ISA‑95/B2MML patterns) with idempotent processing and field-level validation of GS1 AI payloads.

Treat scanners and print stations as regulated endpoints: harden configurations, restrict local changes, and centralize time synchronization. Apply least-privilege, unique user accounts (no shared logins), and secure transport for label data and scan events. Follow GAMP 5 for validation of configurable labeling/printing/scan workflows, and align with NIST SP 800‑82 security practices for industrial control/equipment networks when scanners interface near equipment PLCs.

Barcode generation, printing, and scan processing are GxP-relevant functions requiring lifecycle validation (GAMP 5). Risk-assess failures (mis-encoded AI, duplicate lots, wrong template, parser errors) and design tests to challenge them. Verify parsing against GS1 rules, date formats, FNC1 handling, and boundary cases (max AI(10) length, non-numeric lots). Challenge label reprint workflows with access controls, reason capture, and audit trails.

• Electronic records: scans are records—ensure audit trail for create/modify/delete and configuration changes (21 CFR Part 11)
• Attribution: scans link to unique user ID, device ID, timestamp (synchronized), and operation context
• Electronic signatures: require when acknowledging exceptions, overrides, or releasing reprints
• Record retention and retrieval: ensure legibility, searchability, and export for inspections

Periodically review audit trails for anomalous patterns (e.g., frequent overrides, after-hours reprints). Align system time and preserve original raw payloads; any transformations must be traceable and reversible to defend data integrity during regulatory inspections.

Operator-centric design improves quality at source. Place labels where they can be scanned without unwrapping or contamination risk; select label materials that survive cleaning agents. Provide immediate, unambiguous MES feedback: green/advance on match; red/hard-stop on critical mismatch; amber/warn for non-critical with clear remediation. Standardize scanner beeps/vibration cues and error text. Train on reading human-readable lines when scanners fail, and implement dual verification for manual entries.

• Use large, high-contrast human-readable text mirroring AIs (no re-keying ambiguity)
• Avoid multiple barcodes in close proximity unless delimited by framing boxes and clear HRI labels
• Implement scanning at the scale for dispense steps to tie net weight and lot identity in one action
• Instrument workbenches with fixed-mount imagers where two-handed operations occur

• Duplicate lot issuance across sites: centralize lot number generation or implement namespace rules; add MES uniqueness checks.
• Non-standard encodings (proprietary Code 128): migrate to GS1 AIs; support transitional parsing until legacy inventory is exhausted.
• Template sprawl: enforce change control; deprecate old templates; link BOM to specific template versions.
• Scanner misconfiguration: lock down symbology enables/AI behavior; deploy config profiles from central management.
• Unreadable labels: institute routine print-quality grading, incoming inspection of vendor labels, and environmental durability tests.
• Overuse of overrides: monitor KPIs; trigger CAPA for root-cause remediation (training, template fix, lighting, device maintenance).

Governance matters as much as technology. Define ownership for master data, label templates, device configuration, and exception dispositions. Establish periodic effectiveness checks and management review inputs covering scan success rates, override frequencies, and genealogy query performance.

V5 Ultimate treats Batch ID barcode scans as first-class execution events. The platform decodes GS1 AIs, validates against master data and status rules, and binds the result to the in-flight eBMR/eDHR step. Each scan automatically updates WMS inventory status and LIMS sample/lot context, while QMS receives triggered deviations or nonconformances if exceptions occur. All actions are audit-trailed with Part 11 controls, and label templates are managed under change control with test and promotion workflows.

• Single record of truth: eBMR/eDHR, QMS, LIMS, WMS, and maintenance events share the same lot context
• Configurable parsers for GS1 AI sets with versioned validation rules and sandbox testing
• Role-based reprints and overrides with reason capture, e-signature, and impacted-record linkage
• Out-of-the-box genealogy queries (one-up/one-down) across materials, equipment, and operations
