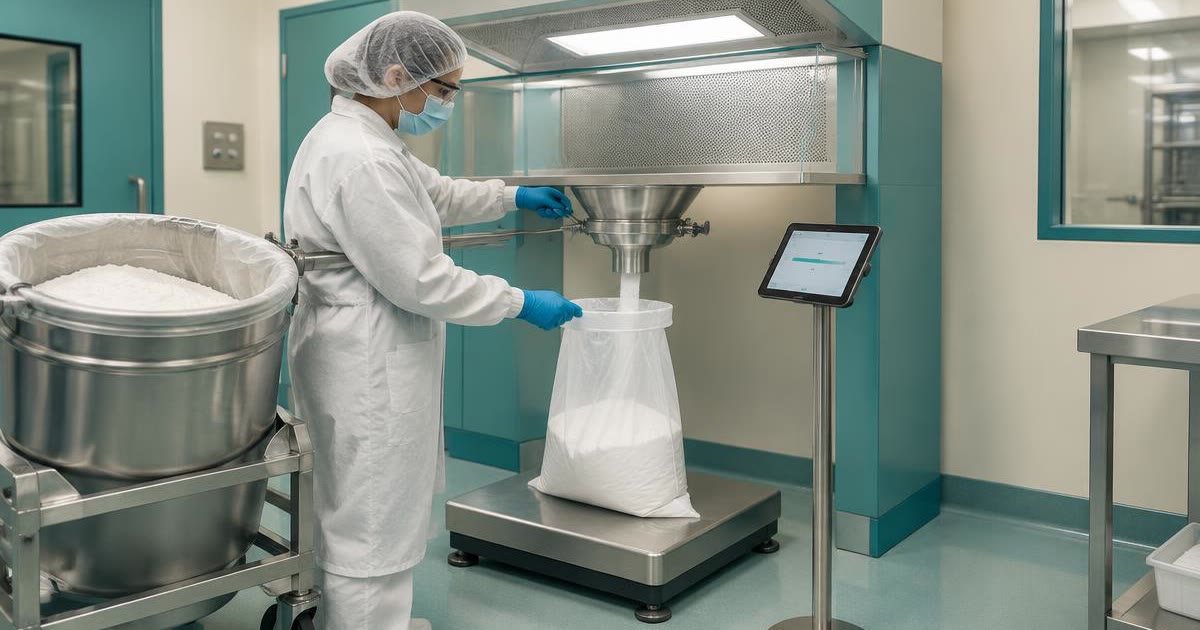

Gravimetric Dispense

Gravimetric dispense is the act of charging a defined mass of material into a process container, verified on a calibrated scale with controlled taring, stability detection, and electronic enforcement of tolerance limits. In ISA‑88 terms, it is commonly implemented as a reusable unit procedure phase (e.g., Weigh/Dispense) within a master recipe, parameterized by target weight, lower/upper limits, identification rules, and confirmation logic. The MES coordinates the operator, scale, barcode/RFID devices, and interlocks (e.g., booth airflow, dust extraction) to ensure the correct material, correct container, correct scale, and correct quantity are achieved and recorded.

Across pharmaceuticals, medical devices, cosmetics, foods, and supplements, gravimetric dispense is the preferred method when precision, potency accuracy, traceability, or environmental influences make volumetric dosing unreliable. It underpins batch reconciliation and regulatory review by providing defensible, contemporaneous records of each charge with associated raw material lots, equipment IDs, timestamps, and user signatures.

Regulators expect that each component added to a batch is verified for identity and quantity, with checks documented contemporaneously. 21 CFR 211.101 requires verification of charges of components at the time of performance, and 21 CFR 211.188 requires batch records to include the identity and weight or measure of each component, equipment identifiers, and initials/signatures of the individuals performing and verifying the operation. For dietary supplements, 21 CFR 111.210 requires master manufacturing records to specify component weight ranges and controls, with production records documenting actuals against those specifications.

A compliant gravimetric dispense capability combines: qualified scales sized to the task; environmental controls (draft shields, negative-pressure booths, vibration damping); barcode or RFID verification of materials and containers; recipe-driven targets and tolerances; and robust user guidance (coarse/fine addition cues, stepwise approach). Minimum weight (the threshold above which a scale’s uncertainty meets the process tolerance) dictates which scale is permitted for a given addition. MES logic enforces tare verification, stable-weight confirmation, and net calculation. For potent or allergenic components, the phase enforces enhanced verification, PPE prompts, and waste/scoop reconciliation to minimize cross-contamination and loss.

• Scale controls: capacity, resolution, linearity, minimum weight, stability filter, calibration/adjustment status lockout.
• Material verification: barcode scan against BOM/material master; expiry/ret-test date check; quarantine status interlock.
• Taring discipline: tare-verified empty container, gross capture post-addition, automatic net computation.
• Tolerance enforcement: hard bands for reject, soft bands with second-person verification, and rule-based overage logic.
• Containerization: net mass recorded per sub-container, parent/child genealogy updated in MES.
• Data integrity: time-stamped, uneditable event records, audit trails, and sequence counters for attempts/retries.

At ISA‑88, gravimetric dispensing is a phase with defined parameters (target, UTL/LTL, material ID rules) and reports (as-dispensed mass, operator, scale ID, lot genealogy). It resides in a unit procedure for Weigh & Dispense centers or integrated at the point-of-use. ISA‑95 separates responsibilities: Level 2 (control) provides the scale signal and device diagnostics; Level 3 (MES) provides recipe enforcement, electronic signatures, and material lot control; Level 4 (ERP) provides orders and material master data. Robust interfaces prevent manual transcription, drive real-time checks, and ensure the batch record auto-populates with authoritative device data.

Tolerance band design is risk-based: narrow for critical potency or process stability, wider for non-critical bulking agents—always within validated design space and master record limits. The MES can guide operators to approach setpoints with coarse/fine scoops, enforce incremental dosing (no mass removal if procedure forbids), or permit controlled removal with full audit trail. Overages may be disallowed entirely, capped, or permitted only with a potency correction factor downstream. Exceptions should trigger second-person verification and deviation logic.

Air currents, static charge, vibration, and temperature gradients degrade weighing repeatability. Use draft shields, anti-static measures, and weigh booths with verified airflow and vibration damping. Stability detection (time-and-noise thresholding) reduces premature captures. For hygroscopic materials, pre-condition containers and limit open exposure, or use closed-transfer devices. Where significant, document any buoyancy correction or density compensation strategies and keep them consistent across validation and commercial runs.

• Negative-pressure weigh booths reduce fugitive dust and exposure risk; validate airflow setpoints.
• Static mitigation: ionizers, conductive scoops, and proper grounding improve settling.
• Time-to-stability targets: MES should display stability timers and inhibit capture until met.
• Moisture effects: for loss-on-drying sensitive excipients, enforce swift cap-and-record steps and consider moisture compensation strategy defined in the recipe.
• Radiopharma: decay correction belongs in activity assays; gravimetric steps still control mass of carrier/excipient precisely, time-stamped for activity reconciliation.

Before any dispense, the MES must verify the material (barcode against material master), lot status (approved, not expired, within retest), and the correct container. Each dispense event updates forward genealogy (which batch received which lot mass) and can create child containers with their own IDs and net masses when subdividing. Reconciliation sums as-dispensed masses per lot to compare against material movement in WMS and closing counts. Deviations open automatically when mass balance falls outside expected recovery, ensuring nothing moves off the floor without documented investigation.

A gravimetric dispense capability is a computerized system subject to lifecycle validation (URS → risk assessment → IQ/OQ/PQ) per GAMP 5. Validate recipe logic (limits, interlocks, calculations), scale interfaces (protocols, error handling), and electronic records (Part 11). Lock out-of-tolerance devices by querying calibration/adjustment status before enabling a phase. Batch records must include operator actions, device IDs, date/time stamps, the exact net mass, and any exceptions handled, maintaining an audit trail for configuration and runtime events.

• Calibration program: verify linearity, repeatability, and sensitivity at relevant points; enforce minimum weight policies via MES eligibility rules.
• Security: unique user accounts, role-based permissions for overrides, and two-person e-signatures for critical exceptions.
• Audit trails: secure, time-stamped, and reviewable; ensure exception reasons are obligatory free text with reason codes.
• Change control: governed updates to tolerance logic, material IDs, and scale mappings; revalidation where risk warrants.

High-throughput dispensing areas balance ergonomics, segregation, and flow: weigh booths aligned to material families (allergenic, potent), kitted staging zones, and pick-paths that minimize cross-traffic. Operationally, the MES should sequence dispenses (serial vs. parallel) to level-load scales by capacity and precision class. KPIs include station utilization, first-pass yield of on-band dispenses, mean time-to-stability, and exception rate. Tight feedback loops—such as auto-triggered CAPA for recurring near-miss exceptions—convert dispense analytics into sustained process capability.

• Slotting of materials by risk class to dedicated booths/scales.
• Digital work instructions with photo prompts for scoop selection and approach techniques.
• Automated label generation for child containers with net weight and genealogy barcodes.
• Real-time dashboards of in-spec vs. out-of-spec dispense attempts to target coaching and maintenance.

V5 Ultimate models gravimetric dispense as an ISA‑88 phase block with centrally governed parameters, integrates to scales through validated device connectors, and binds every event to the eBMR/eDHR with Part 11-compliant audit trails. Eligibility rules prevent use of out-of-calibration devices or expired lots; tolerance policies are versioned under change control. Reconciliation is automatic: forward genealogy updates on dispense, and WMS movements are cross-checked to catch discrepancies at release. Exceptions raise QMS deviations and offer guided triage, while LIMS test results (e.g., potency) can drive potency factor or overage rules where validated.

Frequent findings include: using scales below their minimum weight for micro-additions; missing second-person verification when limits are exceeded; incomplete audit trails (e.g., mass removal not recorded); reliance on handwritten scratch notes transcribed later; and poorly controlled overage policies. Another theme is unverified taring, where residual mass in “empty” containers leads to systematic bias. Finally, failing to lock out-of-calibration or out-of-service scales from MES eligibility is a recurrent gap that undermines data integrity and batch release confidence.

1. Enforce minimum weight eligibility and display real-time guidance on acceptable scale selection.
2. Require tare verification with photo or dual-scan confirmation for reusable containers.
3. Block manual edits to captured mass; allow corrections only via documented exception workflow with two-person e-signatures.
4. Trend exceptions and rework mass across campaigns; trigger preventive maintenance for scales with rising instability times.
