Jidoka: Autonomation and Built-in Quality Explained

Jidoka is the Toyota Production System principle of building quality into processes by detecting abnormalities and stopping work, either automatically or through an operator’s intervention. In Toyota’s explanation of jidoka, the abnormality may concern a machine or equipment, product quality, or a work delay. The concept therefore reaches beyond machines that stop when they break: it connects recognition of an abnormal condition with a response in the process.

The English label used here is autonomation. For readers asking what jidoka means in Japanese, Toyota loosely translates it as “automation with a human touch.” That is an explanation of the production concept, not a literal Japanese etymology. Toyota describes the human element as adding human wisdom to automation: equipment can detect an abnormality and stop automatically, or an operator can stop the line.

Toyota connects built-in quality with clearly detecting abnormalities and preventing their recurrence. It also connects the ability to stop on an abnormality with removing the need for people simply to watch machines. These are related aims: detection should make a problem actionable, while improvement should address why it happened. The connection to kaizen is therefore part of Toyota’s explanation, rather than an optional addition to more automation.

For practical application, treat built-in quality as a relationship between detection and operational response. The presence of a sensor, camera or inspection station alone does not establish that relationship. Ask what abnormal condition it recognises and what happens when that condition is found. Put that connection into standard work, so the intended response is explicit rather than assumed.

The manufacturing examples in this article are proposed operating designs that illustrate the principle. They are not promises of defect-free production or detection of every possible abnormality.

In Toyota’s account of TPS origins, Sakichi Toyoda’s automatic loom did more than mechanize handwork: it incorporated the capability to make judgments into the machine itself. Toyota identifies this as the origin of jidoka. The important historical connection is therefore not automation alone, but automation able to distinguish a condition that calls for intervention.

Toyota attributes development of the just-in-time concept to Kiichiro Toyoda. It describes this second TPS pillar as synchronizing production processes by making only what is needed, when it is needed, and in the amount needed. The two pillars address different operating questions:

• Jidoka: has an abnormal condition occurred that calls for stopping rather than continuing production?
• Just-in-time: what does the next process need, when does it need it, and how much should be made?

Read together, they connect response to abnormalities with coordinated flow. Neither should be treated as ensuring the other: a synchronized process can still encounter abnormalities, while stopping for a problem does not itself synchronize production.

Just-in-time also does not mean zero inventory. Toyota expressly describes minimum parts stocks, withdrawal by the next process, and replenishment by the preceding process. The distinction is between stocking to support that replenishment loop and assuming that all stock must disappear. For related flow concepts, see kanban and value stream mapping.

Performing work automatically is not the same as building jidoka into it. Toyota distinguishes automation from the added capability to detect an abnormality and stop. Its description also includes an operator pulling a stop cord: a fully automated line is not necessary to illustrate jidoka.

The comparison below separates functions within Toyota’s account; equipment-initiated and operator-initiated are descriptive labels, not separate Toyota production systems.

Andon is therefore the communication element, not a synonym for jidoka; how the signal works and who owns the response is covered in the andon section below.

Toyota's account puts manual understanding first: the work is done correctly by hand and improved through kaizen before detection is built into machines. Buying automation does not supply that understanding.

Use detect, stop, correct and prevent recurrence as a practical operating model—not a numbered framework quoted from Toyota. The steps below are proposed design choices: define them for the operation before relying on them during an event.

1. Detect: Define the abnormal condition before evaluating an observation. Specify the operation, what is observed, the measurement units where applicable, and the decision criterion. For a filling check, that means naming the fill operation, measured net mass in grams, and the applicable acceptance rule—not merely recording “weight alarm.”
2. Stop: Specify the boundary interrupted: the operation itself, material transfer, or the next handoff. Identify affected material by lot, container or unit, location and event reference. Where material is pooled, consider how bin-level lot genealogy supports identification across that boundary.
3. Correct: Record the immediate action that removes the observed condition and the check demonstrating that result. Keep this separate from investigating why the condition occurred; restoring an acceptable observation does not, by itself, explain its cause.
4. Prevent recurrence: Link the proposed change to the identified cause. Define an effectiveness check with an observation period or production exposure, a measure, and a success criterion. If the cause remains uncertain, record that uncertainty rather than treating a plausible change as proven prevention.

The accompanying workflow expands those four parts into operational handoffs. These event states are proposed labels, not universal requirements.

Readiness is a handoff, not permission to restart. Decision authority is addressed in the regulated-manufacturing section; recurrence-prevention work has its own effectiveness evaluation.

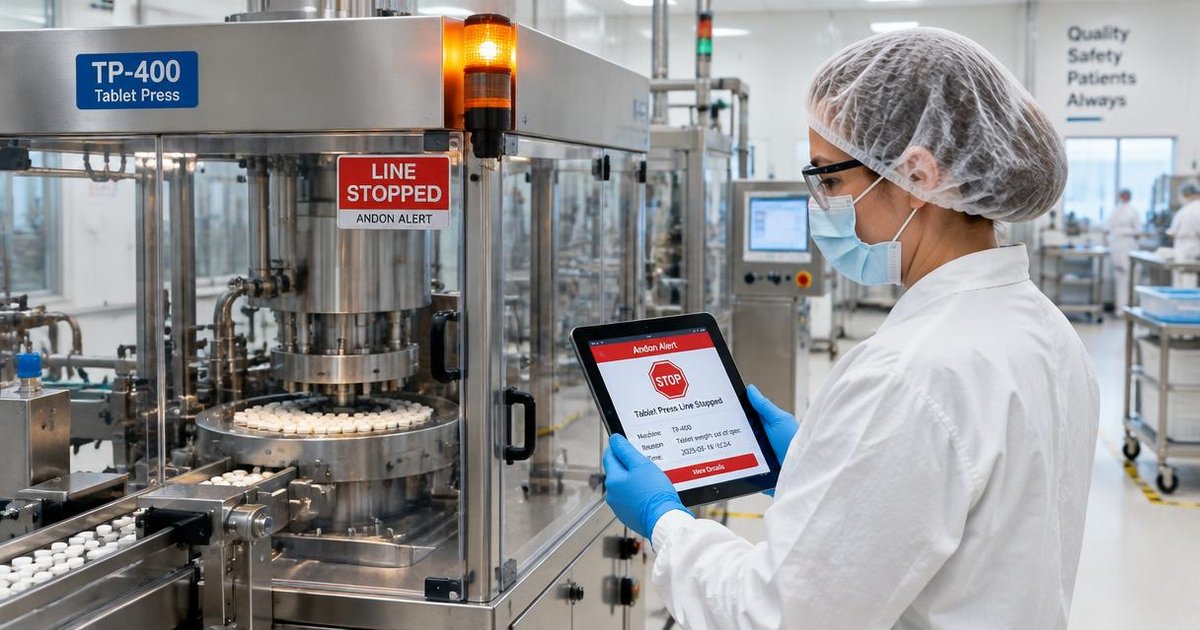

In Toyota’s description of andon, the problem display board lights when equipment stops, notifying workers of the abnormality. Toyota also describes a line without equipment: pulling the stop cord lights the andon so workers can call the person in charge.

For an illustrative implementation, treat the andon signal as a request for a specific response. Keep its message concise:

• Location: line, station or equipment identifier.
• Abnormality category: equipment, quality or work delay.
• Event time: when the abnormality was detected.
• Requested assistance: the skill or decision needed.

Define acknowledgement as acceptance of response ownership: a named responder has taken responsibility for attending to the event. It is not evidence that the condition has been corrected. Keep acknowledgement and correction as distinct states in the local response method.

Set the escalation path in standard work. The initial responder assesses the condition within their competence and authority. If they cannot resolve it, they pass the event to the relevant technical specialist or authorised quality decision-maker, identifying the unresolved question and assistance required. Have the receiving person explicitly accept ownership so the request does not become an unassigned handoff. This proposed interface does not depend on a particular display, colour scheme or application.

Use this proposed worksheet for each abnormality. For every jurisdiction–product row, ask: which product classification, manufacturing activity and intended market govern this event? Check the current applicable text for scope before assigning obligations; the product labels below are starting points, not classification decisions.

• Binding law or regulation: identify applicable provisions and tie each required review element to its own exact provision.
• Regulator guidance: assess relevant recommendations separately from binding requirements.
• Toyota’s production philosophy: use as operating inspiration, not regulatory authority.
• Proposed site operating controls: label investigation prompts and evidence fields as local design choices.
• Software support: specify desired recordkeeping and routing separately; do not delegate approval authority to software.

For each row, also ask what material could be involved and which decision needs supporting evidence. Proposed evidence fields include affected identifiers, event boundaries and observations linked to the batch record through production context tagging. These are assessment prompts, not a universal regulatory checklist.

In this illustrative design, permission to restart equipment is separate from disposition or release of held product. Record each decision and its supporting evidence separately. Both decisions remain with the authorised people identified in site procedures; a restart does not itself clear held material.

These hypothetical cases use local criteria to illustrate stop-and-fix reasoning, not regulatory requirements. Apply the decision authority described above; each observation opens an investigation rather than settling the product’s status.

Hypothetical case 1: Pharmaceutical packaging

• Local criterion: Assume each bottle’s label identity must match the identity specified in the packaging instruction. The line runs continuously at 120 bottles per minute.
• Abnormal observation: A label identity mismatch is found. There are 45 seconds between the last demonstrated acceptable identity check and the stop.
• Immediate response: Stop packaging, retain the mismatched sample and identify output potentially involved. The initial time-window calculation is 120 × 45 ÷ 60 = 90 bottles. This assumes uninterrupted flow and excludes any additional in-process inventory.
• Evidence question: Which bottles correspond to that interval, and what do label samples, check records and physical counts establish? Ninety bottles is an initial assessment quantity, not proof that every bottle is defective or that earlier bottles are unaffected. Include conveyor or accumulation inventory separately when defining the assessment boundary.
• Unresolved decision: Authorised reviewers still need to determine the affected population, its disposition and the conditions for restarting; the time-window arithmetic alone settles none of these.

Hypothetical case 2: Supplement filling

• Local criterion: Assume a nominal 500 g net fill and a locally selected illustrative action band of 498–502 g. These values are example settings, not legal tolerances.
• Abnormal observation: A measured result is 497 g: 498 − 497 = 1 g below the lower action boundary.
• Immediate response: Pause filling under the example’s local response rule. Identify the product, batch, sampled container and potentially involved output. Preserve the original result rather than replacing it with a later passing measurement.
• Evidence question: Does the result represent net contents? Assess tare handling, balance condition and the measurement method, then investigate the filling condition. A fill-weight check and net-versus-gross reconciliation address different parts of that question.
• Unresolved decision: The observed shortfall triggers assessment; it does not establish the cause or scope. A restart decision remains pending identification of the material involved, assessment of the measurement and investigation of the condition.

Hypothetical case 3: Manual medical-device assembly

• Local criterion: Assume the kit instruction specifies six components before handoff to the next operation.
• Abnormal observation: The operator observes five. Six minus five equals one missing component.
• Immediate response: The operator stops the handoff, keeps the kit identifiable and requests assistance. This is built-in quality through an operator’s observation and action.
• Evidence question: Which component is absent? Compare the kit with the instruction and examine whether the discrepancy concerns this kit alone or other kits prepared together.
• Unresolved decision: The responsible person must determine the correction and checks needed before handoff resumes. Adding one component resolves the count only; it does not establish that the component identities are correct.

The following proposed logical design keeps the stop event, the affected material and the assessment connected across systems. It is a design pattern, not a regulatory record set. Allocate responsibilities across MES and SCADA integration and MES–QMS integration so the stop and its assessment remain connected.

Keep occurrence time separate from each receiving system’s receipt time. Preserve source identity and sequence information where available; delayed transmission must not silently redefine production order. Flag uncertain ordering for review rather than treating arrival order as fact.

Proposed recovery tests

• Duplicate messages: resend the same message; confirm it links to the existing event rather than creating a second independent event.
• Out-of-order delivery: deliver an assessment before the stop message; retain it for reconciliation without inventing sequence.
• Communication loss: disconnect the interface; confirm the documented fallback preserves local event and material identification.
• Interrupted transfer: interrupt transmission midway; confirm incomplete content is flagged and retry does not duplicate accepted content.

For offline work, document who maintains the local log, assigns unique local identifiers and reconciles them after restoration. Reconciliation should expose missing or conflicting entries. Restored connectivity alone is not a restart instruction; retain the designated human restart decision.

Toyota’s account of jidoka connects operator-initiated stops with developing people who think independently and implement kaizen. A proposed local leadership approach is to make raising a concern usable, not merely permitted.

• Operator: initiate the stop and describe what was seen, where, and how certain they are.
• Shift lead: respond as defined in the andon escalation path.
• Technical support: investigate within the relevant engineering or quality remit.
• Named escalation owner: take unresolved uncertainty to the authorised decision-maker.

For example, an operator stops packaging after seeing what appears to be a mismatched label. Inspection finds the correct label; glare caused the concern. The supervisor should assess whether the observation was plausible and clearly communicated, and whether the response addressed it—not treat the absence of a confirmed defect as misconduct.

Put these roles in standard work. Rehearse the actual call route, including an unavailable shift lead, and ask the receiving person to confirm ownership. A “stop the line” slogan alone does not exercise that handoff.

Use this proposed local scorecard to distinguish response speed, potentially affected material and repeat abnormalities. Record timestamp differences in seconds using a common clock; missing timestamps remain unknown, not zero.

The recurrence denominator represents opportunities for the abnormality to recur under comparable detection conditions. Report numerator and denominator together; zero eligible cycles makes the frequency undefined. Keep andon response records aligned with these event definitions.

Treat a lower stop count as ambiguous unless detection opportunities and event classification remain interpretable. Fewer recorded stops alone do not establish better quality. Separate observation from explanation: a change after a kaizen intervention warrants investigating effectiveness, not concluding that the intervention caused it. Set numeric targets locally for the proposed implementation; these definitions supply no Toyota or software performance benchmarks.

Use these proposed design controls when reviewing jidoka checks and related mistake-proofing measures. They address implementation risks, not a universal regulatory checklist.

Use this proposed readiness review as a local design test, not a source-prescribed checklist. For every test, record the named local owner, expected result, observed result, and unresolved action with its assignee.

1. End-to-end rehearsal — Production owner: introduce one simulated abnormality under controlled conditions. Exercise detection, stopping, material containment, escalation and the authorised restart decision. Ask a reviewer to reconstruct the event, affected material and decision sequence from the resulting records.
2. Communication interruption — Controls or IT owner: interrupt one communication path. Apply the recovery controls covered above; compare recovered records and notifications with the expected sequence, identifying gaps or duplicates.
3. Shift handoff — Outgoing and incoming supervisors: transfer the unresolved event using the ownership controls above. Confirm that the incoming owner can identify material status, pending decisions and the next action.
4. Corrective change — Quality owner: select a completed change and locate its effectiveness evaluation, including the criterion, observations and conclusion—not merely a closed task.

Can the team demonstrate the intended response under both ordinary and exception conditions before extending the design to another operation?
