OEL / OEBOccupational Exposure Limit / Occupational Exposure Band

In the pharmaceutical industry, protecting workers from the pharmacological effects of the compounds they handle is a primary safety obligation. An Occupational Exposure Limit (OEL) is the airborne concentration of a substance to which nearly all workers can be repeatedly exposed for an 8-hour workday (40-hour work week) without adverse health effects over a working lifetime 2. These limits are quantitative, typically expressed in micrograms per cubic meter (µg/m³), and are derived from a comprehensive toxicological and pharmacological data package.

However, during the early stages of drug discovery and development, sufficient toxicological data may not yet exist to establish a definitive OEL. In these instances, the industry uses Occupational Exposure Bands (OEBs). An OEB is a categorical grouping used to assign chemicals into hazard 'buckets' based on their toxicological potency and adverse health outcomes 4. Banding allows a facility to implement a pre-defined set of engineering controls and personal protective equipment (PPE) before the final OEL is calculated, ensuring a conservative safety posture from the start.

Most pharmaceutical companies utilize a 4- or 5-band system to categorize compounds. Each band corresponds to a range of exposure concentrations and dictates the level of containment required. While there is no universal regulatory list for API bands—as companies often set these internally for their proprietary molecules—the typical ranges are as follows 4:

As a compound's potency increases (moving from OEB 1 toward OEB 5), the OEL decreases, requiring exponentially more sophisticated engineering controls. For extremely potent substances like cytotoxic payloads in Antibody-Drug Conjugates (ADCs), some systems include an OEB 6 for concentrations below 0.1 µg/m³ 4.

Deriving an OEL or OEB is a multidisciplinary effort involving toxicologists, pharmacologists, and industrial hygienists. The process begins with identifying the No-Observed-Adverse-Effect Level (NOAEL) or the Lowest-Observed-Adverse-Effect Level (LOAEL) from animal or human clinical studies 2. This starting point is then adjusted using several uncertainty factors (F1 through F5) to account for:

• Interspecies variation (extrapolating from animals to humans).
• Intraspecies variation (protecting sensitive individuals within the worker population).
• Study duration (adjusting from sub-chronic to chronic exposure).
• The severity of the adverse effect observed.
• Pharmacokinetic and pharmacodynamic differences 1.

Because the majority of pharmaceutical APIs are proprietary, regulatory agencies like OSHA or the EMA do not publish a master list of OELs for every drug. Instead, manufacturers must rely on their internal toxicology teams or specialist firms (such as SafeBridge or AffyGility) to develop these limits 1 4. The resulting 'Toxicology Monograph' becomes the source of truth for all manufacturing safety controls.

The primary goal in potent compound handling is to follow the 'Hierarchy of Controls,' which prioritizes engineering solutions over reliance on Personal Protective Equipment (PPE). The OEB assigned to a compound directly determines the selection of containment hardware 2:

OEB 1 & 2: Open Handling and Local Exhaust

Low-potency materials may be handled in open containers with local exhaust ventilation (LEV) or laminar flow hoods. While the risk of systemic harm is lower, these controls still manage nuisance dust and ensure general air quality.

OEB 3: The Tipping Point to Closed Systems

Compounds in OEB 3 require a shift from open handling to closed or semi-closed systems. This often involves the use of Split Butterfly Valves (SBVs) for powder transfer and Downflow Booths that provide a protective air curtain, keeping dust away from the operator's breathing zone.

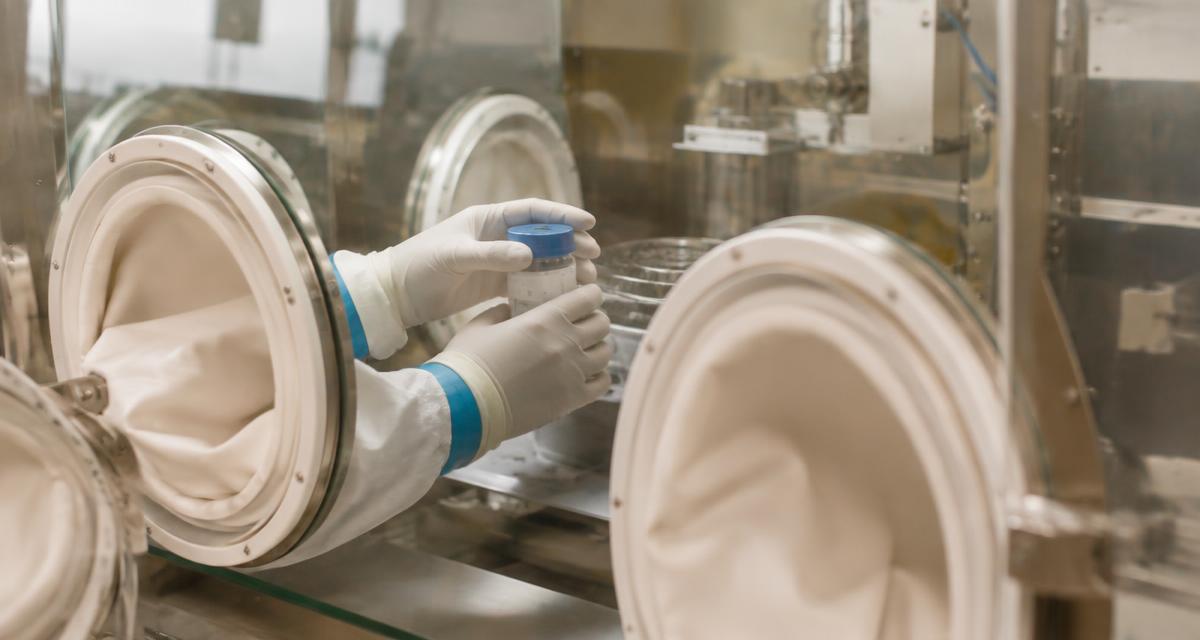

OEB 4 & 5: High-Containment Isolators

For highly potent compounds, the only acceptable strategy is total separation of the operator from the product. This is achieved through isolators (gloveboxes) that operate under negative pressure. In OEB 5 environments, the facility may even require dedicated manufacturing suites with specialized airlocks and 'mist showers' for decontaminating operators before they exit the area 1.

There is often confusion between OELs and the health-based exposure limits (HBELs) used in cleaning validation, specifically the Permitted Daily Exposure (PDE). While both are derived from the same toxicological data (NOAEL), they serve different purposes and use different safety factors 5:

• OEL is worker-focused: It assumes an 8-hour inhalation exposure for a healthy adult worker population.
• PDE/HBEL is patient-focused: It assumes a lifetime daily oral or parenteral exposure for a general population, including sensitive groups like children, the elderly, or pregnant women.

Under EMA/CHMP/CVMP/SWP/169430/2012, pharmaceutical manufacturers must use HBELs to identify the risk of cross-contamination in shared facilities 1. If a compound is extremely potent (e.g., a low OEL/PDE), the manufacturer may need to dedicate equipment or facilities to that product alone to prevent any risk to patients receiving subsequent products made on the same line.

Implementing an isolator does not automatically ensure safety. Its performance must be verified through Industrial Hygiene (IH) monitoring. The industry standard for this verification is the SMEPAC methodology (Standardized Methodology for the Evaluation of Pharmaceutical Airborne Particle Emissions) 1.

During a SMEPAC test, a surrogate powder (typically lactose or naproxen) is processed through the equipment while air samplers placed near the operator's breathing zone and critical leak points collect data. If the airborne concentration of the surrogate remains below the CPT (Containment Performance Target) associated with the OEB, the equipment is deemed qualified for that band 4.

"Containment performance must be assessed under actual operating conditions, including normal operations, cleaning, and maintenance activities."

Weighing and dispensing is the single highest-risk operation for potent compound exposure. It involves breaking the bulk seal of a container, manually scooping or pouring fine powders, and generating significant airborne particles. For OEB 4 and 5 compounds, this must be performed within a 'Weigh-in-Isolator' system 2.

Practical challenges include:

• Ergonomics: Working in an isolator for 8 hours can lead to physical fatigue and increased risk of error.
• Static Electricity: Fine potent powders often carry a static charge, causing them to 'fly' or stick to gloves, increasing the risk of breach when exiting the isolator.
• Waste Management: All contaminated liners, wipes, and PPE must be treated as hazardous waste and deactivated per the API's SDS 1.

It is important to distinguish between the legal floors and industry best practices. In the United States, OSHA sets Permissible Exposure Limits (PELs), which are enforceable by law 18. However, many OSHA PELs were established decades ago and do not cover modern, highly potent APIs. Consequently, OSHA expects manufacturers to follow their 'General Duty Clause,' which requires providing a workplace free from recognized hazards—this effectively makes the internally derived OEL the standard for compliance during inspections.

In Europe, the EMA requires health-based exposure limits (HBELs) for all medicinal products, and the ECHA (European Chemicals Agency) manages OELs for a broader range of industrial chemicals. For pharma manufacturers, the EMA Q&A on HBEL implementation (2018) is the definitive guide for how these limits should be applied to prevent cross-contamination 2.

V5 Ultimate treats OEL/OEB data as critical quality and safety metadata. Rather than keeping these values in disconnected PDF monographs, V5 integrates them into the digital batch record workflow:

• Dynamic Gowning Verification: The system checks the OEB of every component in a Bill of Materials (BOM) and prompts the operator to confirm they have donned the correct PPE (e.g., P3 respirator for OEB 3) before a work order can proceed.
• Equipment qualification locks: If a piece of equipment is not SMEPAC-rated for OEB 4, V5 will prevent an OEB 4 API from being assigned to that work center.
• IH Result Tracking: Air sampling and swab results from the industrial hygiene program can be recorded directly against the equipment and batch, enabling long-term trending of containment performance.
• Cleaning MACO Enforcement: V5 uses the PDE/HBEL value from the material master to calculate the Maximum Allowable Carryover (MACO) for changeovers, eliminating manual calculation errors in the cleaning log.
